UV Curing Lamp - Honle AN13530 UV Curing Lamp Bulb

Honle AN13530 UV Curing Lamp Bulb
Free Gift

SKU: UV Bulb Price Match Guarantee
$215.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 9.84 Inch Arc Length - 13.38 Inch Total Length (end to end)

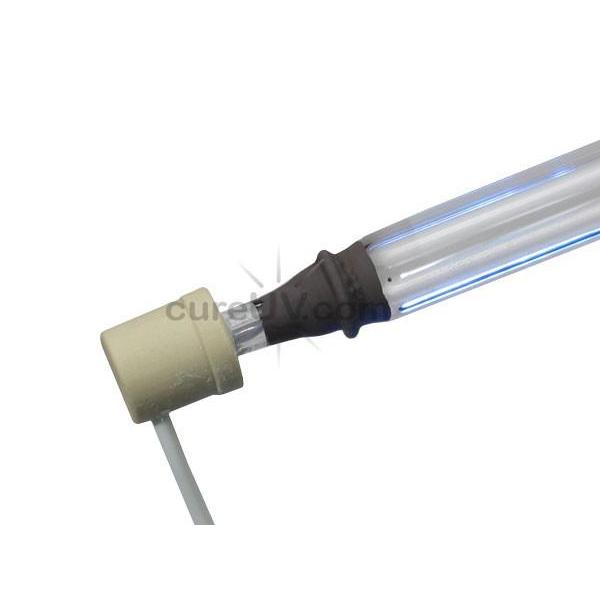

The Honle AN13530 UV Curing Lamp Bulb is a mercury-filled UV replacement lamp bulb that has 9.84" arc length and 13.38" total length. With a tube diameter of 26.5mm, the curing lamp bulb exceeds OEM standards of bulb performance. The 100% replacement bulb is compatible to the Honle UV Flatbed Printer with the following part numbers:

  • AN13530
  • H10K4F1HD
  • H10K-4-F1HD

The process of UV curing involves high-intensity UV rays to help in instantly drying or curing inks and coating in the printer. By using light instead of heat, the ink hardens and dries instantly. Curing inks using UV rays are better alternatives to traditional solvent-based products. In the conventional method solvents are evaporated and there is always a risk of environmental pollutants. In the UV curing method there is no evaporation process and no pollution. The result is better productivity, higher printing quality and no evaporation of harmful solvents.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 9.84 Inches
  • Overall Length: 13.38 Inches
  • Tube Diameter: 26.5mm
  • Watts Per Inch: 400 WPI

UV spectral output of a Mercury Lamp

UV Spectral Output of a Mercury Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All UV lamps listed are compatible brand UV products. We do not sell Honle brand UV lamps. All Honle brand names, trademarks and logos are property of Honle UV.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
