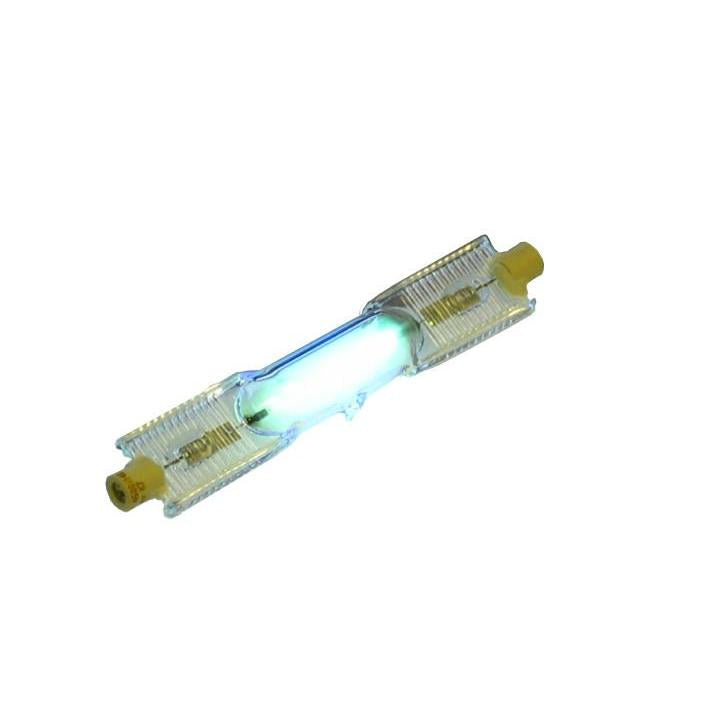

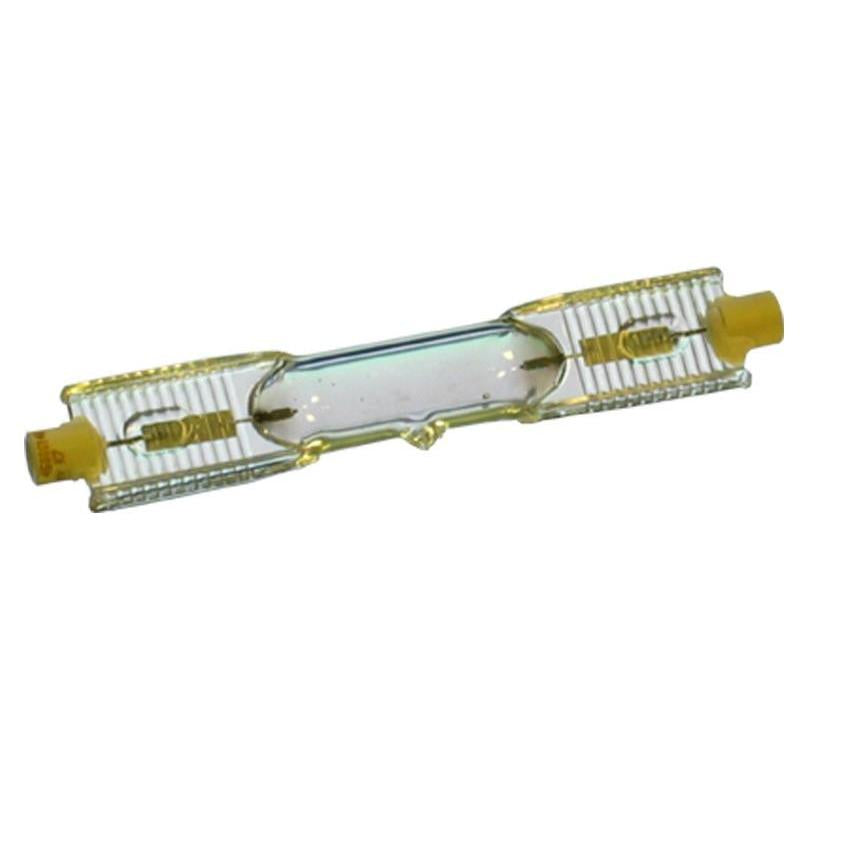

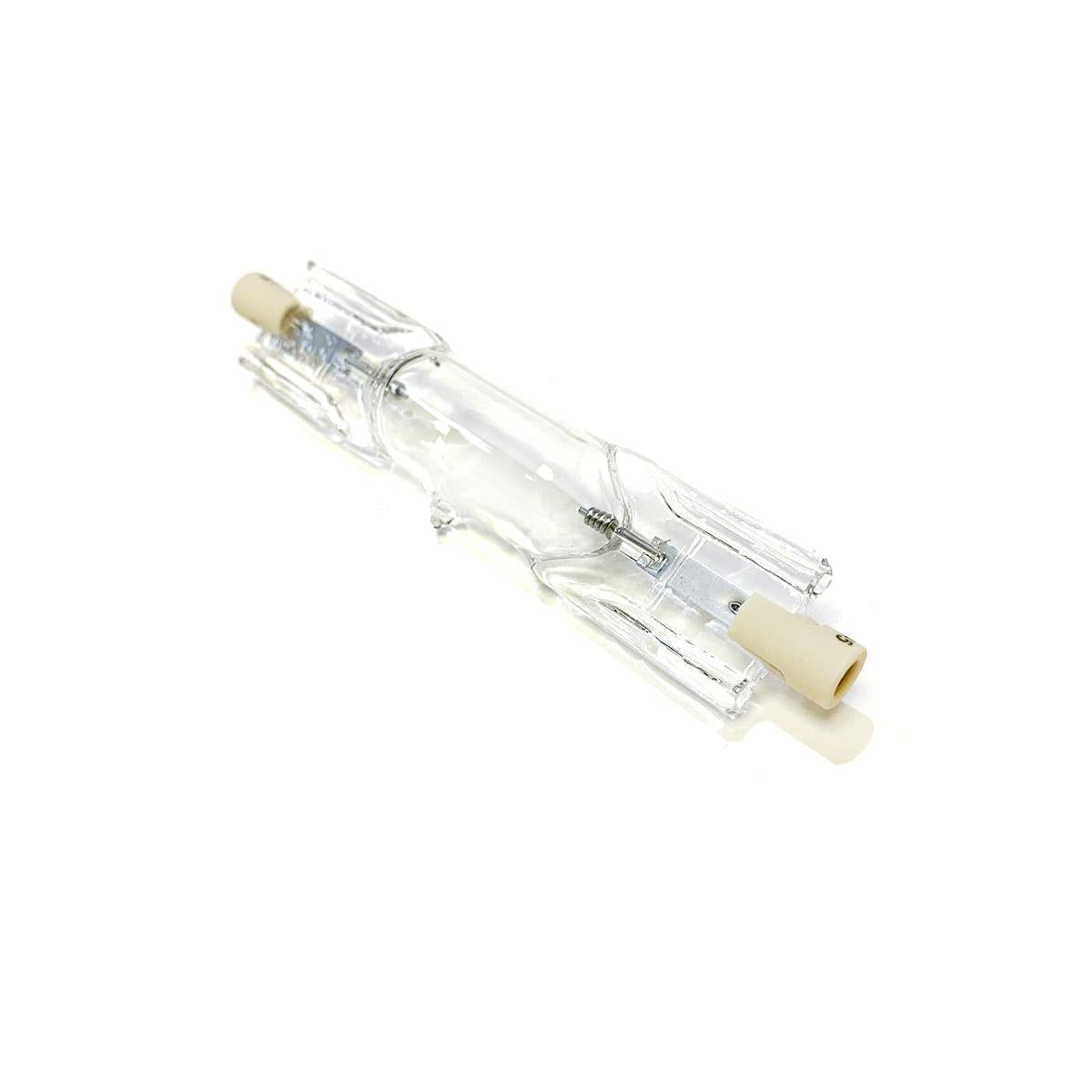

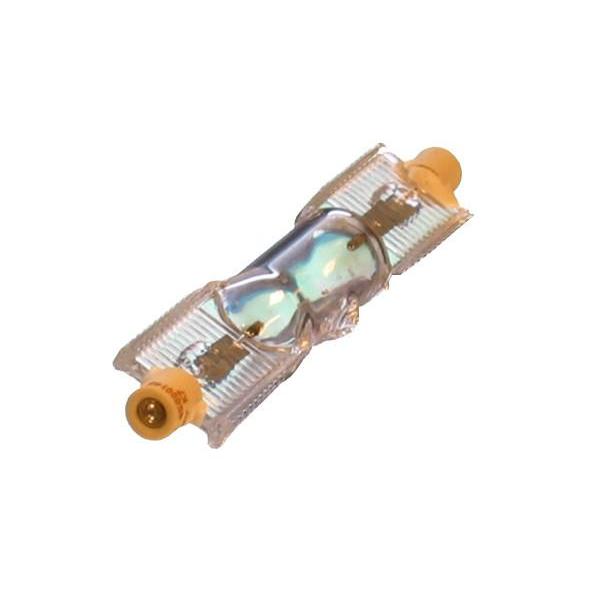

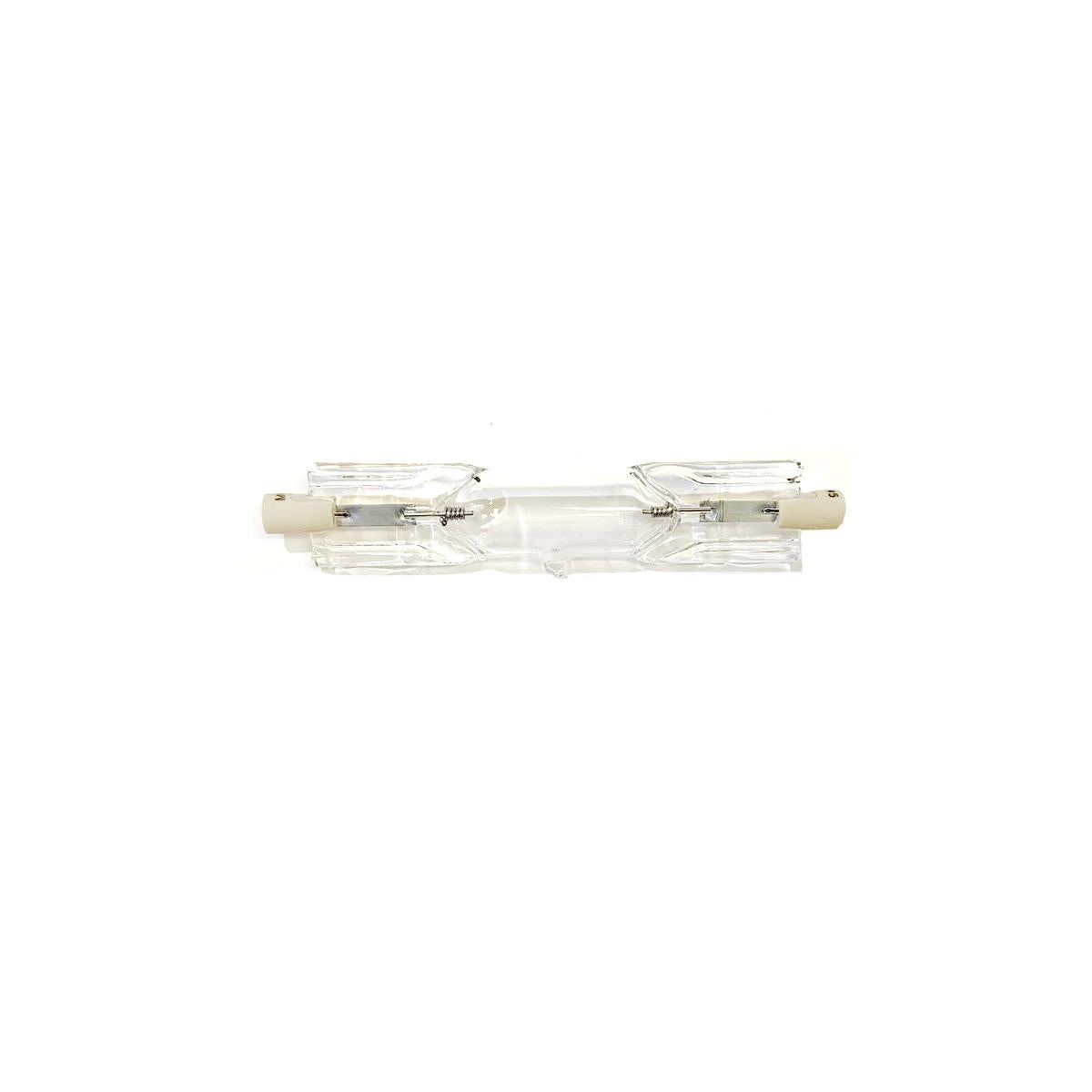

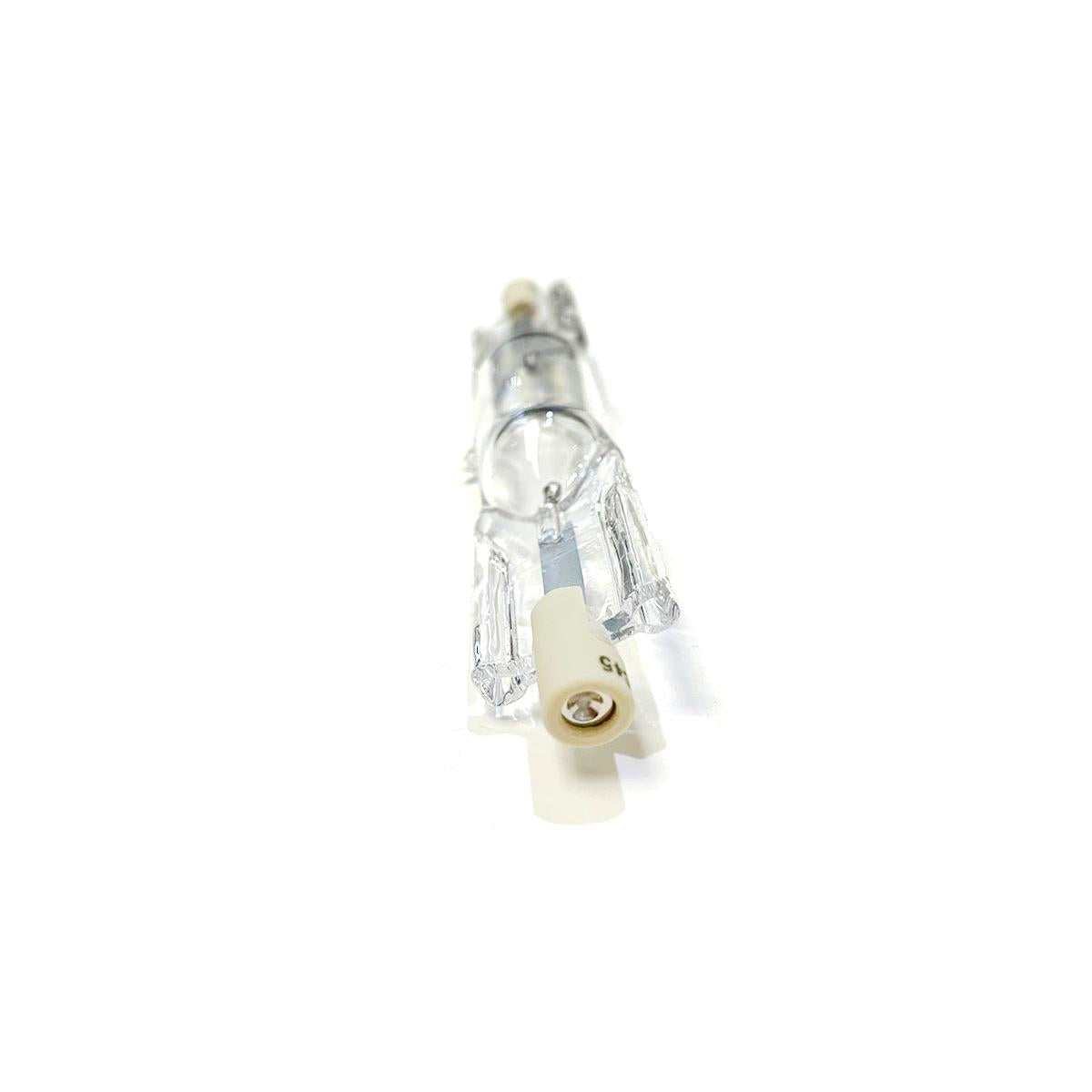

HP DesignJet H35100 UV Curing Lamp Bulb - Part # CH231A
HP DesignJet H35100 UV Curing Lamp Bulb - Part # CH231A
SKU:192603
Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Iron Doped - 4.13 Inch Total Length (end to end)
The Aluminum Reflector Set for HP DesignJet H35100 UV Curing Lamp Bulb - Part # CH231A is a guaranteed UV reflector.
The UV curing reflector exceeds OEM standards, in terms of curing performance and quality. The UV reflector is a 100% guaranteed replacement part that exceeds OEM standards of curing performance. The UV reflector is specially coated and is manufactured to help in reflecting UV curable energy.
Your press gets up to 70% of the curing power from the reflectors. When the aluminum reflectors get foggy or start peeling, their curing power is drastically reduced. This will not be evident initially and people think that the machine is aging and may not be curing well. All you will need to do is to refresh your aluminum reflectors to get your machine running back in shape.
The UV shutter liners help in allowing infra red radiation to pass through by reflecting visible light. Lesser infrared radiation means reduced heating of the illuminated objects in the light beam. The UV reflector liner is necessary in compatible fixtures that help in scattering heat. It is said that reflectors must not be fitted to closed luminaries.
System Applications
- Scitex - Designjet H35100
- Scitex - Designjet H35500
- Scitex - Designjet H45100
- Scitex - Designjet H45500
- Scitex - Designjet Z3200-24/44
- Scitex - FB500
- Scitex - FB700
- Scitex - FB950
Replacement For Lamp(s):
- ColorSpan 5400
- ColorSpan 5445
- ColorSpan 5460
- ColorSpan 5465
- HP 5500
- HP SCITEX FB500
- HP SCITEX FB700
- HP SCITEX FB750
- HP SCITEX FB950
- HP DESIGNJET H35100
- HP DESIGNJET H35500
- HP DESIGNJET 45100
- HP DESIGNJET H45500
- Dymax 2000EC
Technical Specifications:
- Fill: Iron Metal-Halide
- Quartz: Standard
- Overall Length: 4.13 inches (105mm)
- Tube Diameter: 16.3mm
Ultraviolet (UV) Spectral Output - Iron Metal-Halide Lamp (PDF)
*Fe - Lamp contains iron - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgHP DesignJet H35100 UV Curing Lamp Bulb - Part # CH231A
*All UV lamps listed are compatible brand UV products. We do not sell HP brand UV lamps. All HP brand names, trademarks and logos are property of HP Hewlett-Packard.
*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
