Germicidal UV Bulbs - Ideal Horizons - 12013 UV Light Bulb For Germicidal Water Treatment
Germicidal UV Bulbs - Ideal Horizons - 12013 UV Light Bulb For Germicidal Water Treatment Ideal Horizons - 12013 UV Light Bulb for Germicidal Water Treatment Ideal Horizons - 12013 UV Light Bulb for Germicidal Water Treatment Ideal Horizons - 12013 UV Light Bulb for Germicidal Water Treatment Ideal Horizons - 12013 UV Light Bulb for Germicidal Water Treatment

Ideal Horizons - 12013 UV Light Bulb for Germicidal Water Treatment
Free Gift

SKU:

UV Bulb Price Match Guarantee
$62.99

Guaranteed Replacement Ultraviolet (UV) Bulb - Single Pin Double Ends - 55 Watts - 45.2 Inch Length Lamp - Worry-Free Performance for 1 Year

The Ideal Horizons - 12013 UV Light Bulb For Germicidal Water Treatment is a single-pin double-ended bulb that has a wavelength range of 254 nm. This short wavelength range acts on the genetics of the microorganisms present in water and makes them incapable of reproduction. With ceramic as its base material, the germicidal water treatment bulb has a wattage of 55 watts and a length of 45.2 inches.  This light bulb has a life of 10,000 hours and can give you utmost germicidal protection for an entire year after which we recommend that you replace the light bulb even if it continues to emit light.

The quality of the water we use immensely affects our health and wellbeing. This germicidal sanitizer is designed to destroy, bacteria, viruses, protozoa, cysts, and other microorganisms that may create havoc on our health.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:

  • Well water
  • Drinking water
  • Surface water
  • Municipal water
  • Wastewater
  • Foodservice/processing
  • Beverage service/processing
  • Hospitals
  • Aquaculture
  • Pools, Spas, and Water Features
  • Chemicals
  • Oil, Gas, and Power
  • Pulp, paper, and wood
  • Electronics
  • Cosmetics
  • Pharmaceuticals
  • Hotels
  • Water bottlers
  • Laboratories
  • Marine and more

This 55 Watts light bulb is compatible with

  • OEM water disinfection filters
  • UV sanitizers
  • Ultraviolet purifiers

Technical Specifications:

  • Total Length: 45.2 inches (1148mm)
  • Arc Length: 42.13 inches (1070mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 465mA
  • Lamp Voltage: 132V
  • Lamp Wattage: 55 Watts
  • Output UVC Watts: 22 Watts
  • Output uW/cm^2 @ 1m: 180
  • Peak UV Output: 253.7nm
  • Glass Type: Non-Ozone
  • Shape: T5/T6
  • Base Style: Single pin double ended
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

    Spectral Output of Germicidal UVC Light Bulbs

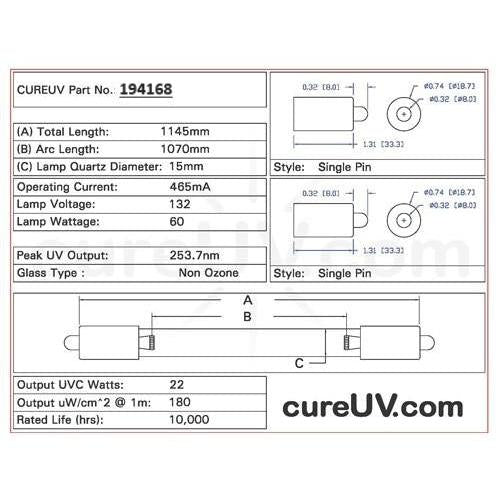

    Mechanical Drawing

    *Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org Ideal Horizons 12013 Water Treatment Germicidal UV Light Bulb

    *All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Ideal Horizons brand UVC bulbs. All Ideal Horizons brand names, trademarks, and logos are property of Ideal Horizons.

    Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

    Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
