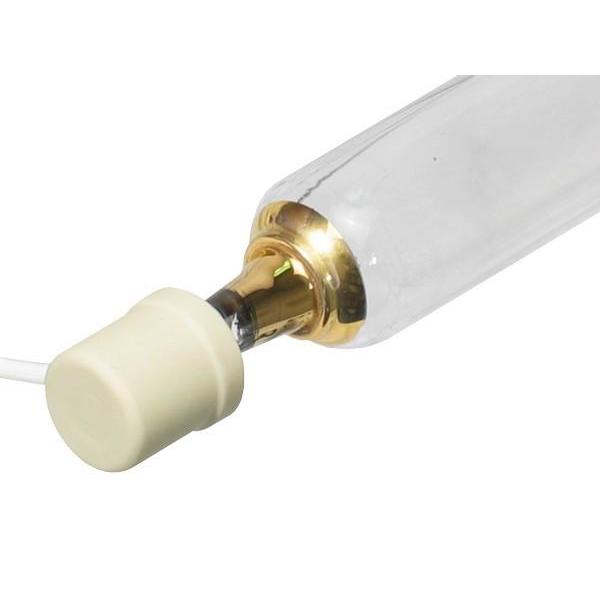

UV Curing Lamp - Equivalent Generic Replacement IST Part # F423954 UV Curing Lamp Bulb

Equivalent Generic Replacement IST Part # F423954 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$200.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 10.75 Inch Arc Length - 15 Inch Total Length (end to end)

The equivalent replacement of the IST Part # F423954 UV Curing Lamp Bulb is a mercury filled lamp bulb that has a 10.75 inch arc length and a total length of 15 inches. The 300 WPI lamp bulb has a tube diameter of 23mm and exceeds OEM standards of UV curing bulb performance. The lamp bulb is completely compatible to the IST UV systems and to the following part numbers:

  • F 423954
  • H11F3F1
  • UVL/1011

The UV curing lamp bulb is an eco-friendly, cost-effective and an economical alternative to traditional curing methods in printing. Manufactured in the USA, the UV printer lamp bulb has a predictable life span and helps in drying coatings of inks and signs. The lamp comes with a quartz plate that prevents grit, dirt and contaminants from building up on the lamp. When the bulb hour rises, the lamp tends to produce less UV light and more heat. When the heat is intense it results in the print media bulging and also causes damage to the shutters and reflectors in the lamp housing. This could lead to high repairing costs and bad output.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 10.75 inches
  • Total Overall Length (TOL): 15 inches
  • Tube Diameter: 23mm
  • Wattage Per Inch: 300 WPI

Ultraviolet (UV) spectral output of a mercury vapor lamp

Ultraviolet (UV) Spectral Output - Mercury Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgIST Part # F423954 UV Curing Lamp Bulb

*All UV lamps listed are compatible brand UV products. We do not sell IST brand UV lamps. All IST brand names, trademarks and logos are property of IST.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
