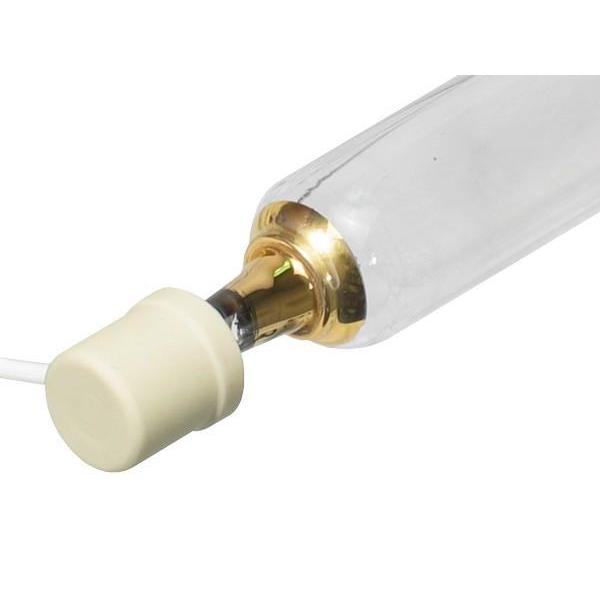

UV Curing Lamp - Equivalent Generic Replacement IST Part # F722964 UV Curing Lamp Bulb

Equivalent Generic Replacement IST Part # F722964 UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 9.75 Inch Arc Length - 13 Inch Total Length (end to end)

The generic version of the IST Part # F722964 UV Curing Lamp Bulb is a mercury filled lamp bulb that has an arc length of 9.75 inches and a total length of 13 inches. With a 23mm tube diameter, this lamp bulb exceeds OEM standards of UV curing bulb performance. The 300 WPI lamp bulb is 100% compatible to the IST UV systems and to the following part numbers:

  • F 722964
  • H10F3F2
  • UVL 1030

The high intensity UV rays produced by the UV lamp help in instantly curing or drying inks or coatings in the printer. The usage of light instead of heat enables the ink to harden and dry instantly. Curing inks by using UV rays is fast catching up as an alternative to traditional solvents- based products. In the conventional drying methods, there is always a risk of environment pollution. In the UV curing method, since there is no evaporation there is no risk of pollution. The result is more productivity, higher printing quality and lower production costs.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 9.75 inches
  • Total Overall Length (TOL): 13 inches
  • Tube Diameter: 23mm
  • Wattage Per Inch: 300 WPI

Ultraviolet (UV) spectral output of a mercury vapor lamp

Ultraviolet (UV) Spectral Output - Mercury Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgIST Part # F722964 UV Curing Lamp Bulb

*All UV lamps listed are compatible brand UV products. We do not sell IST brand UV lamps. All IST brand names, trademarks and logos are property of IST.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
