UV Curing Lamp - Equivalent Generic Replacement IST Part # I400N380 UV Curing Lamp Bulb
UV Curing Lamp - Equivalent Generic Replacement IST Part # I400N380 UV Curing Lamp Bulb UV Curing Lamp - Equivalent Generic Replacement IST Part # I400N380 UV Curing Lamp Bulb

Equivalent Generic Replacement IST Part # I400N380 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$408.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 16 Inch Arc Length - 20.25 Inch Total Length (end to end)

The generic equivalent for the IST Part # I400N380 UV Curing Lamp Bulb is a 100% compatible replacement lamp bulb that is filled with mercury and has an arc length of 16 inches. The overall length of the lamp bulb is 20.25 inches and has an output power of 400 WPI.

Used extensively in the printing industry to cure inks and coatings, the UV lamps resist smudges. It is environmental friendly as there is no process of solvent evaporation as conventional drying methods need. The result is higher printing quality, greater productivity and lower production costs.

Technical Specifications:

  • Output Power: 400 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 16 Inches
  • Overall Length: 20.25 Inches

Spectral Output of a Mercury UV Lamp

Spectral Output of a Mercury UV Lamp (PDF)

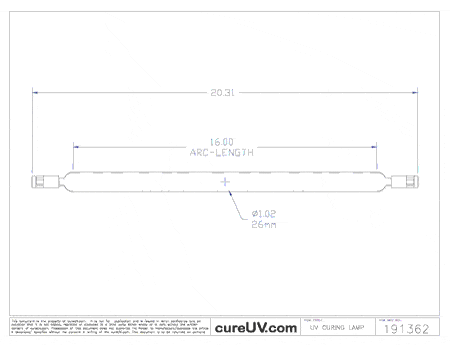

IST compatible UV lamp - Part Number I400N380 - Drawing (PDF)

IST compatible UV Lamp - Part Number I400N380 drawing

*All lamps listed are compatible brand UV products. We do not sell IST brand lamps. All IST brand names, trademarks and logos are property of IST.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
