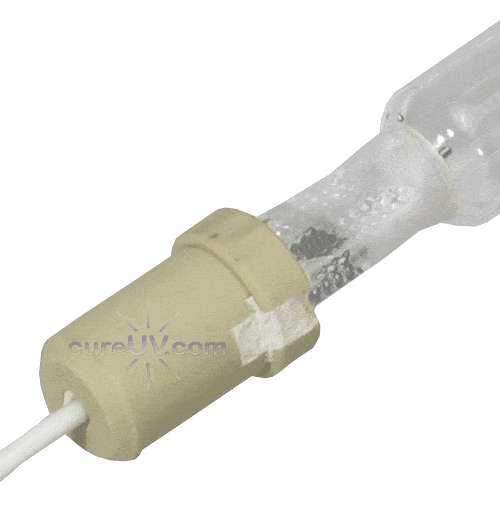

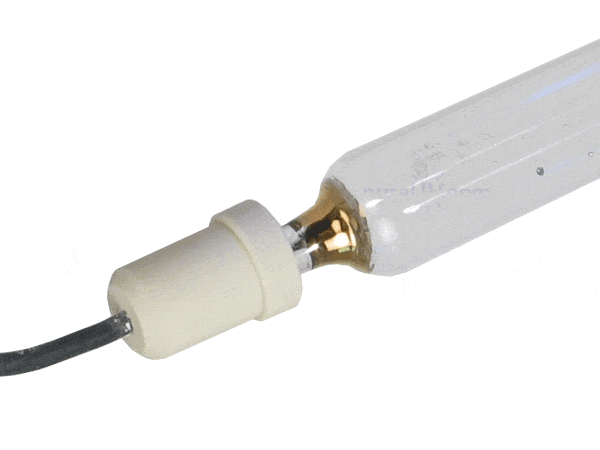

UV Curing Lamp - Generic Equivalent To The IST Part # M200U UV Curing Lamp Bulb
UV Curing Lamp - Generic Equivalent To The IST Part # M200U UV Curing Lamp Bulb UV Curing Lamp - Generic Equivalent To The IST Part # M200U UV Curing Lamp Bulb

CureUV Brand Equivalent to the IST Part # M200U UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 8 Inch Arc Length - 13.25 Inch Total Length (end to end)

The Generic Equivalent to the IST Part # M200U UV Curing Lamp Bulb is a mercury filled lamp bulb that has an arc length of 8 inches and a total length of 13.25 inches. The 250 WPI lamp bulb has a tube diameter of 22.86mm and the lamp bulb exceeds OEM standards of curing performance. The lamp bulb is completely compatible to the IST UV systems and works well with the following part numbers:

  • M-200-U
  • 717221507000
  • AM351X
  • AM1159X
  • IST 30427
  • 200MU
  • S200MUL
  • UVL/200-U

The UV lamp from CureUV is subject to strict quality control measures and gives you the best printing experience you need. We recommended that you replace the UV bulb regularly to ensure better working of your printer and to achieve greater productivity.

UV curing makes use of high-intensity UV rays that instantly dries and cures inks and coatings in the printer. The UV lamp bulb uses light instead of heat that enables the ink to dry and harden instantly. UV curing is considered a better alternative to traditional solvent based curing where there is always a risk of environmental pollution.

Technical Specifications:

  • Type: Mercury
  • Arc Length: 8 inches
  • Total Length: 13.25 inches
  • Tube Diameter: 0.9 inches or 22.86mm
  • Watts Per Inch: 250 WPI
  • Wattage: 2000 W

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All lamps listed are compatible brand UV products. We do not sell IST brand lamps. All IST brand names, trademarks and logos are property of IST.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
