UV Curing Lamp - Generic Equivalent To The IST Part # M-200-U1 UV Curing Lamp Bulb
UV Curing Lamp - Generic Equivalent To The IST Part # M-200-U1 UV Curing Lamp Bulb UV Curing Lamp - Generic Equivalent To The IST Part # M-200-U1 UV Curing Lamp Bulb

Generic Equivalent to the IST Part # M-200-U1 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$198.00

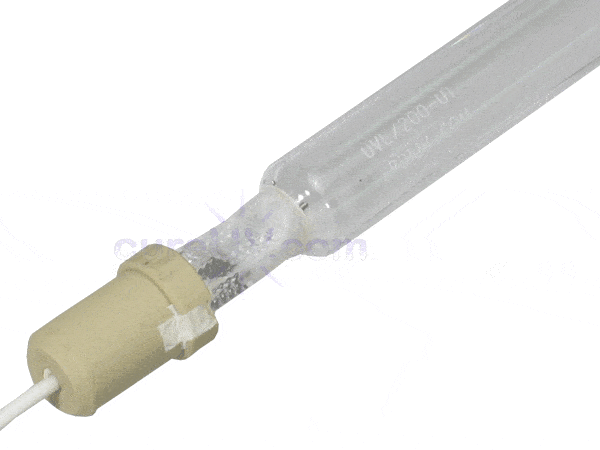

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 8 Inch Arc Length - 13 Inch Total Length (end to end)

The Generic Equivalent to the IST Part # M-200-U1 UV Curing Lamp Bulb is an 8 inch 300 WPI replacement lamp that exceeds OEM standards of curing bulb performance. The replacement lamp bulb is compatible to the IST UV systems and is works with the following part numbers:

  • M200U1
  • CP20000

There is an increase in the demand for UV curing bulbs in the print industry, as it is primary for the drying system. With a curing lamp bulb you get better results than infra red drying. The UV curing bulb resists smudges and does not release volatile organic compounds in the air that is rampant in heat drying. Using light instead of heat helps in hardening and drying the ink instantly and reduces the risk of environmental pollution.

Made in the USA, the UV printer lamp bulb provides a predictable lifespan and helps in drying coatings of inks in signs and graphics. CureUV provides UV lamp for printers in different arc length and spectral fills. Curing bulbs do not release volatile organic compounds in air which makes them an extremely eco-friendly alternative than curing with the help of heat. The usage of light instead of heat enables the ink to harden and dry instantly.

Technical Specifications:

  • Output Power: 300 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 8 Inches
  • Overall Length: 13.00 Inches

Spectral Output of a Mercury UV Lamp (PDF)

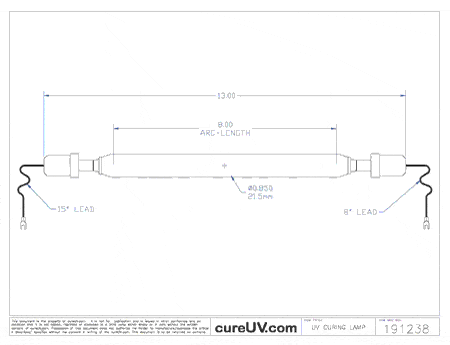

IST compatible UV lamp - OEM part number M-200-U1 - Drawing (PDF)

*All lamps listed are compatible brand UV products. We do not sell IST brand lamps. All IST brand names, trademarks and logos are property of IST.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
