UV Curing Lamp - Generic Equivalent To The IST Part # M-400-K2L UV Curing Lamp Bulb
UV Curing Lamp - Generic Equivalent To The IST Part # M-400-K2L UV Curing Lamp Bulb UV Curing Lamp - Generic Equivalent To The IST Part # M-400-K2L UV Curing Lamp Bulb

Generic Equivalent to the IST Part # M-400-K2L UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$250.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 15.75 Inch Arc Length - 20 Inch Total Length (end to end)

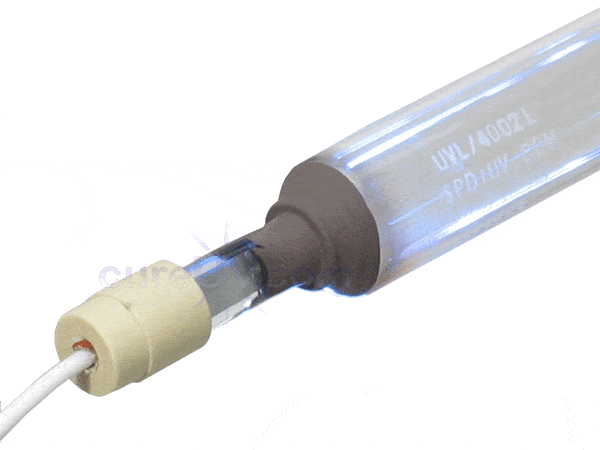

The Generic Equivalent to the IST Part # M-400-K2l UV Curing Lamp Bulb is a 100% guaranteed compatible replacement lamp bulb that has an output power of 400 WPI. Filled with mercury and an overall length of 20 inches, the curing lamp bulb has an arc length of 15.75 inches and is compatible to the following part number:

  • M400K2L

The UV lamps in printers are connected to the photo initiators and the ink raw materials. It is always necessary to have a strong UV light for printing, as a weak UV light fails to cure properly and the ink feels sticky. The 5" UV replacement lamp exceeds OEM standards and is subjected to strict quality control measures to give you the printing experience you desire. Studies show that as the bulb hour rises, the lamp produces less UV light and more heat. Excessive heat cause bulge in the print media along with damaging shutters and reflectors in the lamp housing. This can lead to enormous repairing costs. It is always safer to use a good quality UV lamp like the one from CureUV.

Technical Specifications:

  • Output Power: 400 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 15.75 Inches
  • Overall Length: 20.00 Inches

Spectral Output of a Mercury UV Lamp

Spectral Output of a Mercury UV Lamp (PDF)

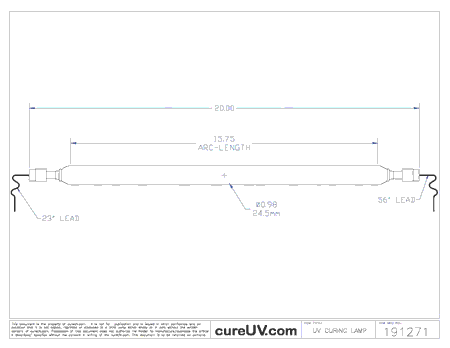

IST compatible UV lamp - part number M400K2L - Drawing (PDF)

IST compatible UV Lamp - Part Number M-400-K2L drawing

*All lamps listed are compatible brand UV products. We do not sell IST brand lamps. All IST brand names, trademarks and logos are property of IST.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
