UV Curing Lamp - Generic Equivalent To The IST Part # T1050K3H UV Curing Lamp Bulb
UV Curing Lamp - Generic Equivalent To The IST Part # T1050K3H UV Curing Lamp Bulb UV Curing Lamp - Generic Equivalent To The IST Part # T1050K3H UV Curing Lamp Bulb

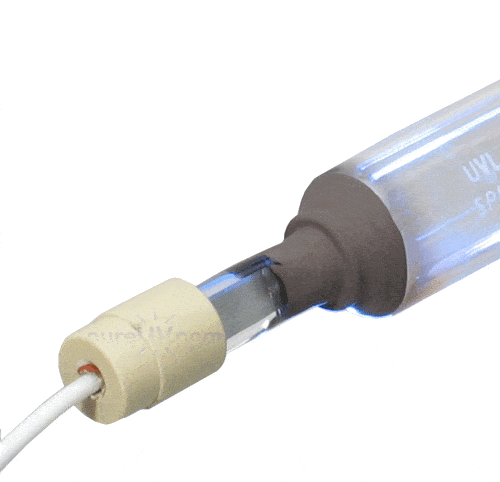

Generic Equivalent to the IST Part # T1050K3H UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$348.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 41 Inch Arc Length - 45.75 Inch Total Length (end to end)

The Generic Equivalent to the IST Part # T1050K3H UV Curing Lamp Bulb is a mercury filled lamp bulb that has an arc length of 41 inches and an overall length of 45.75 inches. The curing lamp bulb is completely compatible to the IST UV systems. The 500 WPI lamp bulb exceeds OEM standards of curing bulb performance.

The UV curing lamp bulb is an eco-friendly, cost-effective and an economical alternative to traditional curing methods in printing. Manufactured in the USA, the UV printer lamp bulb has a predictable life span and helps in drying coatings of inks and signs. The lamp comes with a quartz plate that prevents grit, dirt and contaminants from building up on the lamp. When the bulb hour rises, the lamp tends to produce less UV light and more heat. When the heat is intense it results in the print media bulging and also causes damage to the shutters and reflectors in the lamp housing. This could lead to high repairing costs and bad output.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 41 inches
  • Total Overall Length (TOL): 45.75 inches
  • Tube Diameter: 26mm
  • Wattage Per Inch: 500 WPI

Spectral Output of a Mercury UV Lamp

Spectral Output of a Mercury UV Lamp (PDF)

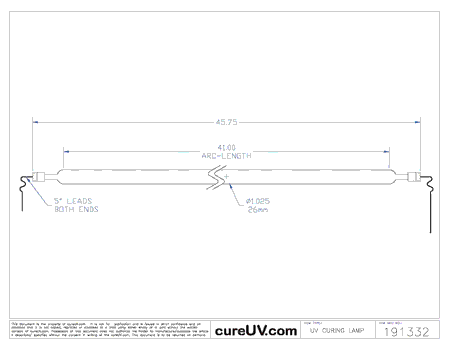

IST compatible UV lamp - part number T1050K3H - Drawing (PDF)

IST compatible UV Lamp - Part Number T1050K3H drawing

*All lamps listed are compatible brand UV products. We do not sell IST brand lamps. All IST brand names, trademarks and logos are property of IST.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
