UV Curing Lamp - Equivalent Generic Replacement IST Part # T-800-U3H UV Curing Lamp Bulb
UV Curing Lamp - Equivalent Generic Replacement IST Part # T-800-U3H UV Curing Lamp Bulb UV Curing Lamp - Equivalent Generic Replacement IST Part # T-800-U3H UV Curing Lamp Bulb

Equivalent Generic Replacement IST Part # T-800-U3H UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$300.00

Overstock Item 14% Off - Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 32 Inch Arc Length - 36.75 Inch Total Length (end to end)

The equivalent replacement for the IST Part # T-800-U3H UV Curing Lamp Bulb is a 500 WPI lamp bulb that is filled with mercury and has an overall length of 36.75 inches. The lamp bulb is compatible to the IST UV systems and exceeds OEM standards of UV curing bulb performance.

Note: Only 2 UV lamps are available at the discounted price. This is a clearance overstock item. Prices are subject to change based on availability.

The 32 inch lamp bulb has a tube diameter of 25.5mm and an arc length of 31 inches.

UV curing is a process where high-intensity UV rays helps in instantly drying or curing coatings or inks in the printer. With the usage of light instead of heat, the ink hardens and dries instantly. Curing inks using UV rays is widely used as an alternative to traditional solvent-based products. Conventional drying methods (the ones that use heat to dry) works only when the solvents are evaporated, which meant that there was always a risk of environmental pollutants. In the UV curing method, however, there no process of evaporation and no pollution created. The result is greater productivity, higher quality printing and lower production costs.

Technical Specifications:

  • Type: Mercury
  • Arc Length: 31 inches
  • Total Length: 36.75 inches
  • Tube Diameter: 25.5mm
  • Watts Per Inch: 500 WPI

Spectral Output of a Mercury UV Lamp

Spectral Output of a Mercury UV Lamp (PDF)

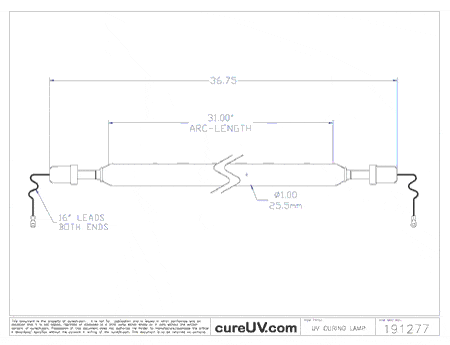

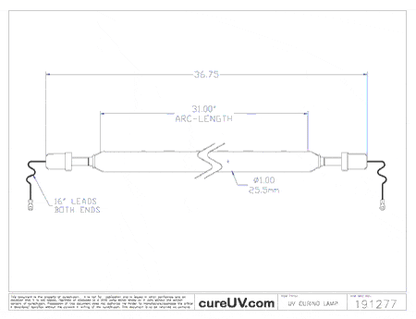

IST compatible UV lamp - part number T-800-U3H - Drawing (PDF)

IST compatible UV Lamp - Part Number T-800-U3H drawing

*All lamps listed are compatible brand UV products. We do not sell IST brand lamps. All IST brand names, trademarks and logos are property of IST.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
