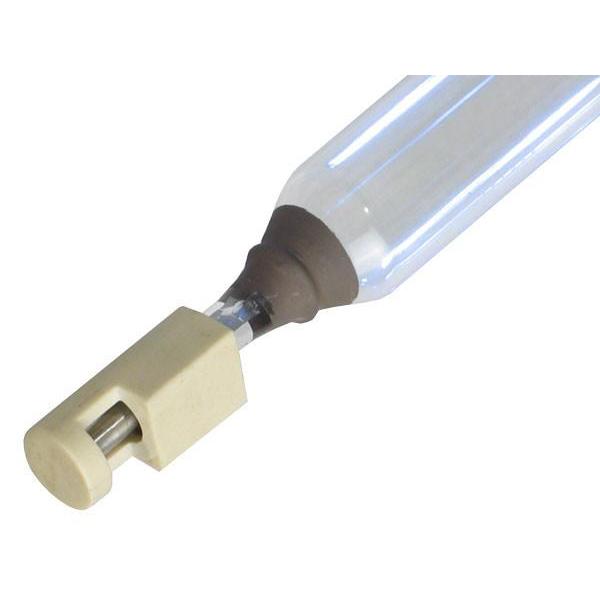

UV Curing Lamp - Generic Equivalent To The IST UV Part # T-1080-NA-2-H UV Curing Lamp

Generic Equivalent to the IST UV Part # T-1080-NA-2-H UV Curing Lamp
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% compatible replacement for IST UV System – Mercury wavelength – 42” Arc Length

The Generic Equivalent to the IST UV Part # T-1080-NA-2-H UV Curing Lamp is a guaranteed replacement lamp bulb that exceeds OEM standards of UV curing performance and features long life and high output. The 42 inch lamp bulb is filled with mercury and has a tube diameter of 26mm.

The UV lamps in printers are connected to the photo initiators and the ink raw materials. It is always necessary to have a strong UV light for printing, as a weak UV light fails to cure properly and the ink feels sticky. The UV replacement lamp exceeds OEM standards and is subjected to strict quality control measures to give you the printing experience you desire. Studies show that as the bulb hour rises, the lamp produces less UV light and more heat. Excessive heat cause bulge in the print media along with damaging shutters and reflectors in the lamp housing. This can lead to enormous repairing costs. It is always safer to use a good quality UV lamp like the one from CureUV.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 42 inches
  • Tube Diameter 26 mm
  • Wattage Per Inch: 400 WPI

This 42” Arc Length Mercury UV replacement lamp exceeds the OEM standards of UV curing performance featuring high output and long service life.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.


Ask a Question
  • We are running a IST UV system on a 40" Heidelberg printing press. The unit calls for a 1-1080-NA-3-210 UV lamp. Could you point me in the right direction? Also what is the life expectancy of the lights. I have some with 2000 hrs. on them.

    Please contact us at 561-243-8442 or sales@cureuv.com. These UV lamps have an expected lifespan of up to 1,000 hours of operation.
