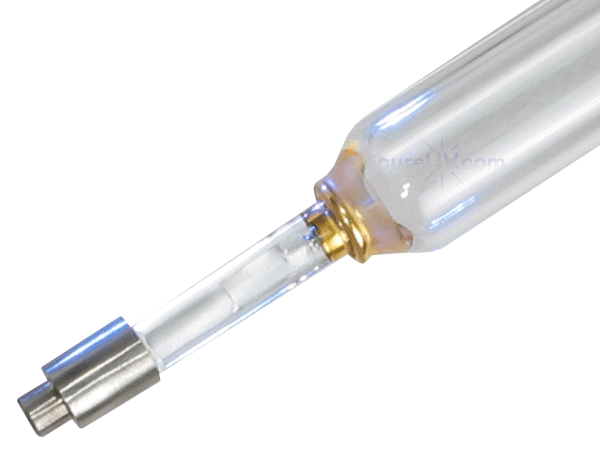

Jelight Part # UVC954 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 7 Inch Arc Length

The Jelight Part # UVC954 UV Curing Lamp Bulb is a 100% compatible replacement light bulb that exceeds OEM standards of UV curing bulb performance. The lamp bulb is completely compatible to the Jelight UV systems and works well with the following part numbers.

The UV printer lamp bulb is manufactured in the USA and has a predictable life. The replacement lamp helps in drying inks in signs and graphics. CureUV.com provides UV lamps for printers in specific arc lengths and spectral fills.

A curing lamp bulb enables better results than infra red drying. It helps in resisting smudges. Further, it does not release volatile organic compounds in the air. The quartz plate works as filler between the lamp and the system. The quartz plate prevents grit, contaminants and dirt from building up on the lamp.

Technical Specifications:

• Fill: Mercury
• Quartz: Standard
• Arc Length: 7 Inches
• Overall Length: 10.5 Inches
• Tube Diameter: 18mm
• Output Power: 200 WPI

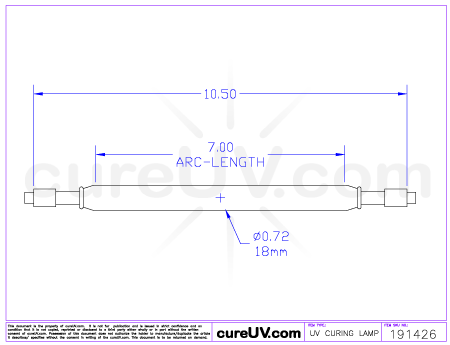

Jelight 7 inch UV lamp (200 WPI) - OEM part number UVC 954 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
