UV Curing Lamp - KBA II Turbo Part # H42B1-4-F1 UV Curing Lamp Bulb
UV Curing Lamp - KBA II Turbo Part # H42B1-4-F1 UV Curing Lamp Bulb UV Curing Lamp - KBA II Turbo Part # H42B1-4-F1 UV Curing Lamp Bulb

KBA II Turbo Part # H42B1-4-F1 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$269.99 $300.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 42 Inch Arc Length

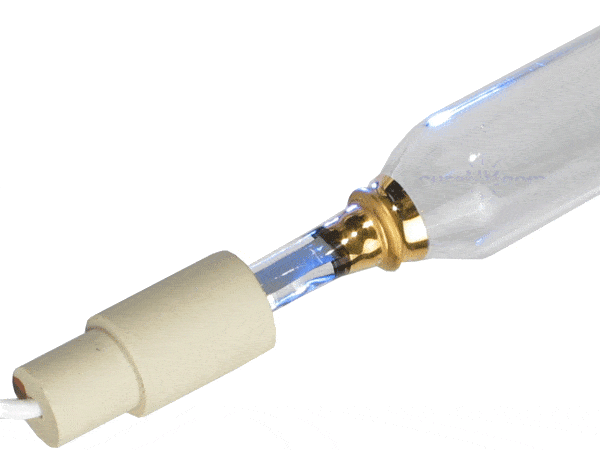

The KBA II Turbo Part # H42B1-4-F1 UV Curing Lamp Bulb is a 100% compatible UV lamp bulb that exceeds OEM standards of UV performance. The 400 WPI lamp bulb has an arc length of 42 inches and is compatible to the KBA II Turbo UV systems and is compatible to the following part numbers:

  • H42B1-4-F1

Made in the USA, the printer lamp bulb helps in drying inks in graphics and signs. CureUV provides UV lamps for printers that use different arc lengths and spectral fills. The UV lamp also consists of a quartz plate that works as filler between the system and the lamp. The plate prevents grit, dirt and contaminants from building up on the lamp.

CureUV is your one-stop-shop for your UV replacement lamps, quartz plate, dichroic reflectors, quartz hot mirrors and more that is necessary for your inkjet printers. These systems are important for the digital printing industry in areas such as graphics, signs and display graphics, apparel, textile, labeling, folding carton, screen printing and more.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 42 Inches
  • Overall Length: 48.88 Inches
  • Tube Diameter: 26mm
  • Output Power: 400 WPI

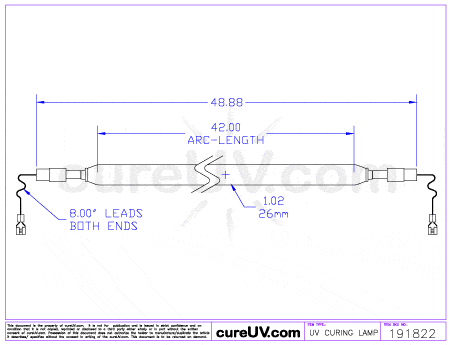

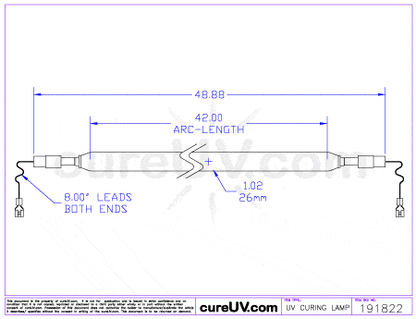

Koenig and Bauer (KBA) UV Lamp - OEM Part Number H42B1-4-F1 drawing

Koenig and Bauer 42 inch UV lamp (400 WPI) - OEM part number H42B14F1 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
