Germicidal UV Bulbs - Lancaster Pump 7-6 Replacement UVC Light Bulb
Germicidal UV Bulbs - Lancaster Pump 7-6 Replacement UVC Light Bulb Germicidal UV Bulbs - Lancaster Pump 7-6 Replacement UVC Light Bulb Germicidal UV Bulbs - Lancaster Pump 7-6 Replacement UVC Light Bulb Germicidal UV Bulbs - Lancaster Pump 7-6 Replacement UVC Light Bulb Lancaster Pump 7-6 Replacement UVC Light Bulb

Lancaster Pump 7-6 Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$39.99

4 Pin on a Single End - 22 Watt Germicidal Water Treatment Bulb

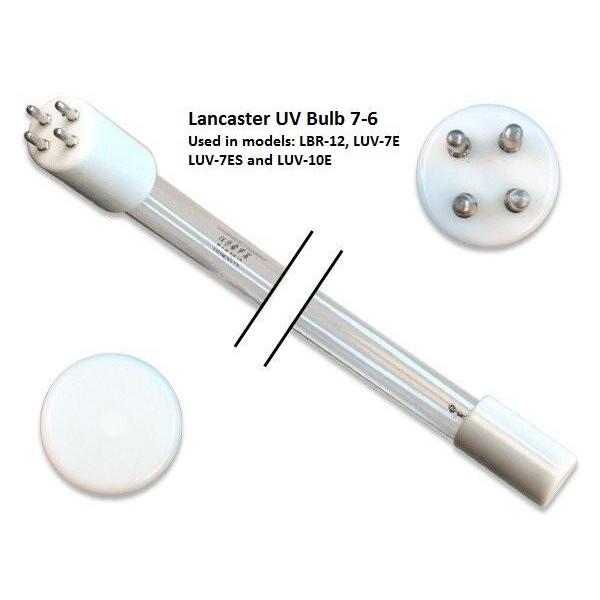

The Lancaster Pump 7-6 Replacement UVC Light Bulb is a four pin on a single end 22 Watts light bulb that has a total length of 17.72" and an arc length of 14.57". The UVC light bulb has ceramic as its base material and can run efficiently for 10,000 hours after which we recommend that you replace the light bulb for maintaining the system’s germ-destroying capabilities. The replacement bulb is best used for the following germicidal UVC system models:

  • LBR-12
  • LUV-7E
  • LUV-10E

The UVC light technology destroys bacteria, molds, parasites and other harmful pathogens in water. The short wavelength emitted by the light bulb at a frequency of 253.7nm enables to effectively destroy the DNA of the microorganisms rendering them incapable of reproducing. The UVC light bulb gives you a 12 months worry free operation. Water treatment using the UVC method requires no handling of chemicals and it does not need any specialized storage. The UVC treatment of water does not cause change in odor, taste, chemistry and pH of water. This method is a preferred method of water treatment from chemicals and their byproducts.

Common Applications:

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Technical Specifications:

  • Total Length: 17.72 inches (450mm)
  • Arc Length: 14.57 inches (370mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Voltage: 15.53V
  • Lamp Wattage: 22 Watts
  • Output UVC Watts: 6.6 Watts
  • Output uW/cm^2 @ 1m: 62
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

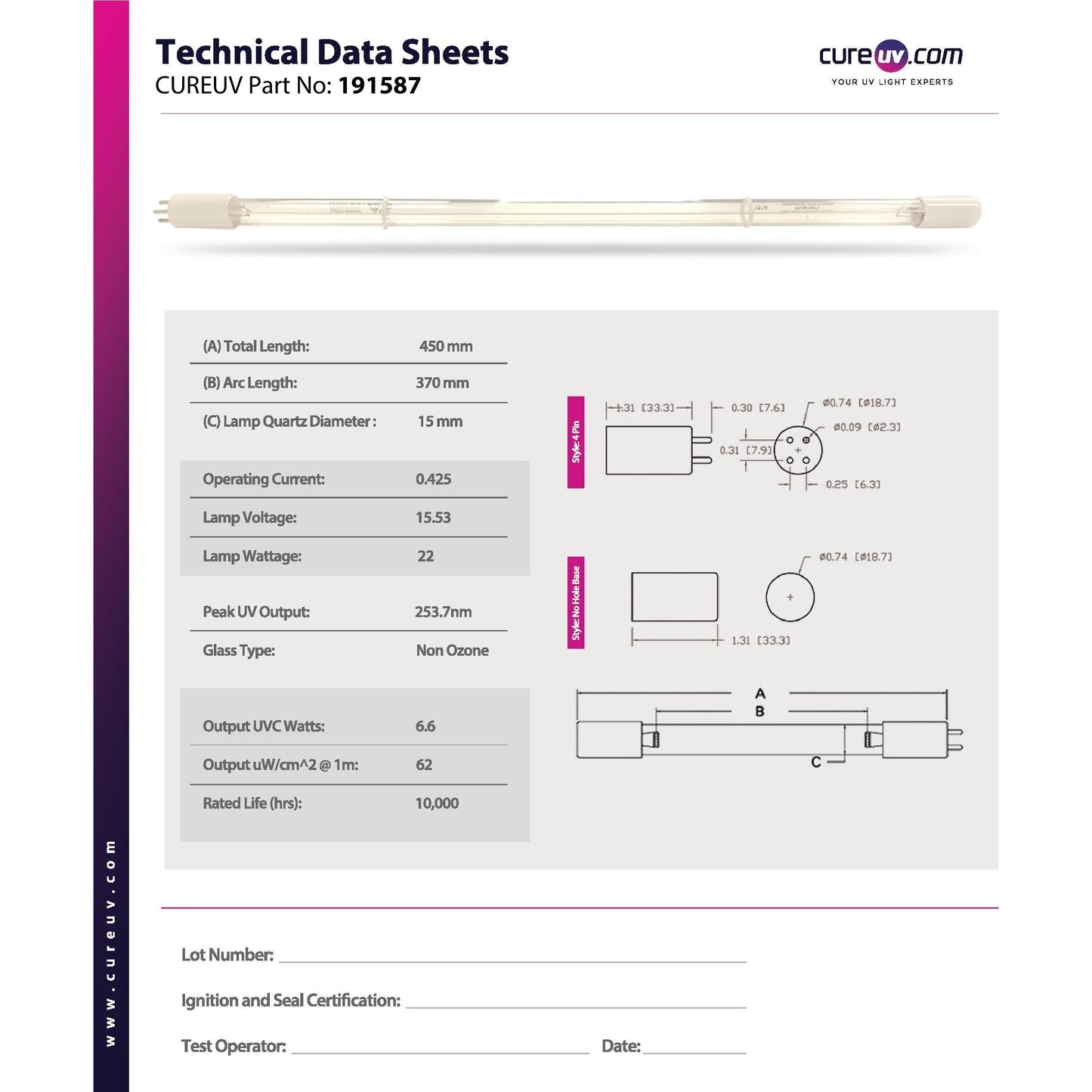

Technical Data Sheets:

Technical data sheet for Lancaster Pump 7-6 Replacement UVC Light Bulb

Spectral Output of Germicidal UVC Light Bulbs

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Lancaster Pump brand UVC bulbs. All Lancaster Pump brand names, trademarks, and logos are property of Lancaster Pump.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
