Germicidal UV Bulbs - Lancaster Pump 7-L20 Replacement UVC Light Bulb
Germicidal UV Bulbs - Lancaster Pump 7-L20 Replacement UVC Light Bulb Germicidal UV Bulbs - Lancaster Pump 7-L20 Replacement UVC Light Bulb Germicidal UV Bulbs - Lancaster Pump 7-L20 Replacement UVC Light Bulb Germicidal UV Bulbs - Lancaster Pump 7-L20 Replacement UVC Light Bulb Germicidal UV Bulbs - Lancaster Pump 7-L20 Replacement UVC Light Bulb

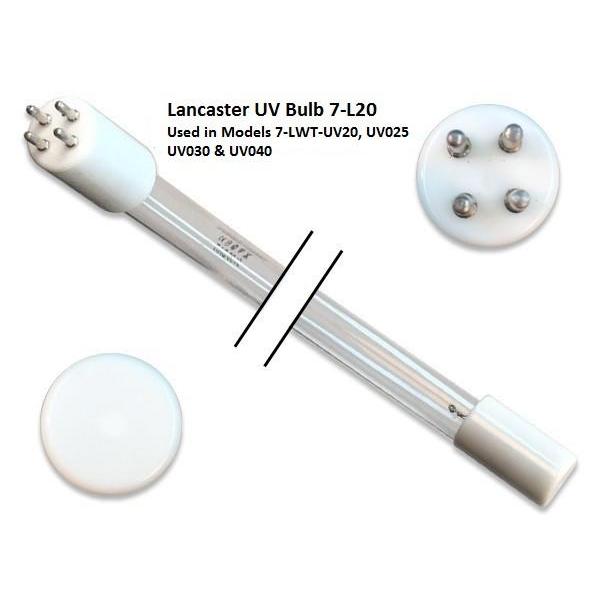

Lancaster Pump 7-L20 Replacement UVC Light Bulb
Free Gift

$49.00

4 Pin on a Single End - 87 Watt Germicidal Water Treatment Bulb

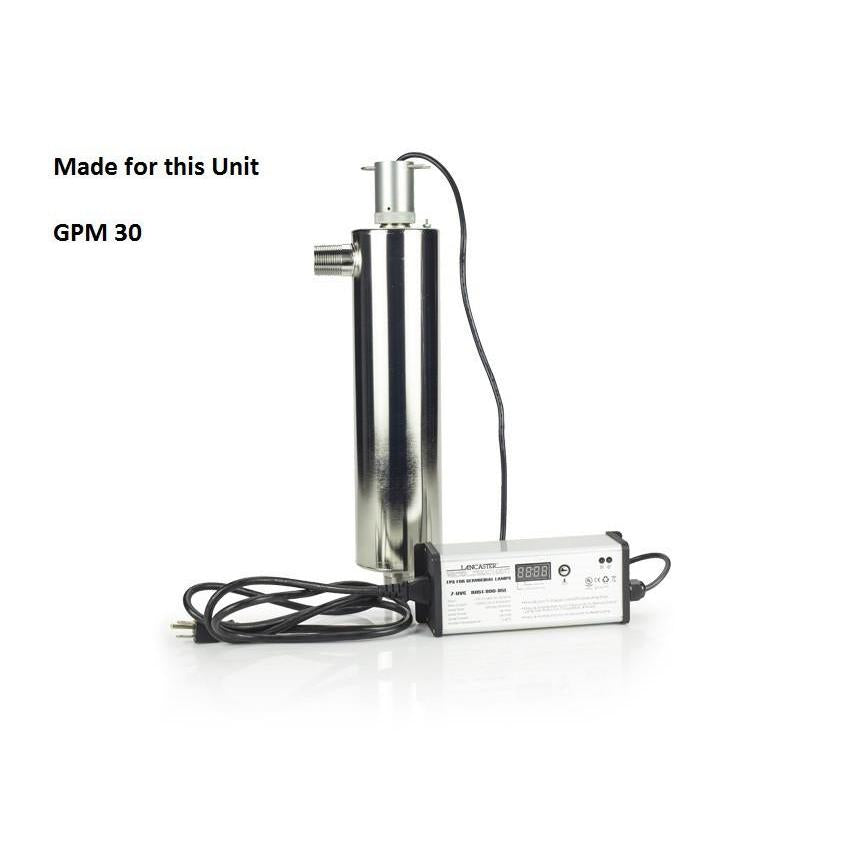

The Lancaster Pump 7-L20 Replacement UVC Light Bulb is a completely compatible replacement lamp bulb that exceeds OEM standards of curing bulb performance. The lamp bulb works well with the Lancaster Pump UV systems.



    The UVC lamp bulb operates at a wavelength range of 253.7nm and helps in deactivating the genetics of microorganisms such as bacteria, molds, virus and yeast. The UV lamp can work well for 10,000 hours or one year lifespan and the UV bulb must be replaced annually for maximum efficiency. People believe that UV water purification provides a safe solution and this method of sterilization is a purely physical process and does not alter the pH, chemistry or taste of water. This method is both economic and environmental friendly and is a much better option to chemicals and their bi-products.

    Technical Specifications:

    • Total Length: 33.19 inches (843mm)
    • Arc Length: 30.11 inches (765mm)
    • Lamp Quartz Diameter: 15mm
    • Operating Current:
    • Lamp Voltage: 100V
    • Lamp Wattage: 87 Watts
    • Output UVC Watts: 29 Watts
    • Peak UV Output: 253.7nm
    • Glass Type: Non Ozone
    • Base Style: 4 pin on a single end
    • Base Material: Ceramic
    • Rated Life: Up to 10,000 hours

    Spectral Output of Germicidal UVC Light Bulbs

    Spectral Output of Germicidal UVC Light Bulbs (PDF)

    UVC Light Disinfection Dosage Chart (PDF)

    Common Applications for use:
    • Aquaculture
    • Beverage Services and Processing
    • Drinking Water
    • Food Services and Processing
    • Municipal Wastewater
    • Pools, Spas, and Water Features
    • Well Water

    *Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

    *All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Lancaster Pump brand UVC bulbs. All Lancaster Pump brand names, trademarks, and logos are property of Lancaster Pump.

    *Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

    Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
