Leggett & Platt Virtu 3600 Part # 230774 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$258.99 $288.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 10 Inch Arc Length - 14 Inch Total Length (end to end)

Our Leggett & Platt Virtu 3600 Part # 230774 UV Curing Lamp Bulb is a mercury filled lamp bulb that has an arc length of 10" and an overall length of 14". Taking care of your inkjet printer and replacing the lamp bulb regularly is an easy way to reduce machine costs. It is therefore necessary to replace bulbs from a good source such as CureUV. These bulbs provide high curing rates accompanied by low-heat output and zero shrinkage or distortion of heat sensitive films. The curing lamp is compatible to the Leggett & Platt UV Printer Model Virtu printer with the following lamp parts:

  • 2211048910
  • Leggett and Platt Virtu 3600
  • 2-211-0489-10
  • H10A5F2
  • 2-211-0489
  • 22110489
  • 230774
  • Virtu 3600

These systems provide excellent consistency in terms of output. The mercury filled curing lamps exceed OEM standards of bulb performance. The UV curing bulb helps in drying inks and coats and is a necessary component in the print drying system. The lamp bulb also does not release volatile organic compounds in the air like traditional curing methods. The curing system has a quartz plate that prevents dirt, contaminants and grit from building on the lamp.

CureUV.com stocks replacement lamps, dichroic reflectors, quartz plate, hot mirrors and all other components necessary for curing in your inkjet printer.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 10 Inches
  • Overall Length: 14.00 Inches
  • Output Power: 500 WPI

UV Spectral Output of a Mercury Lamp

UV Spectral Output of a Mercury Lamp (PDF)

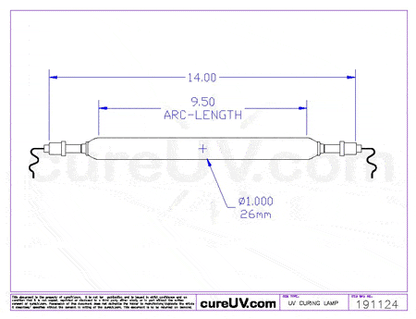

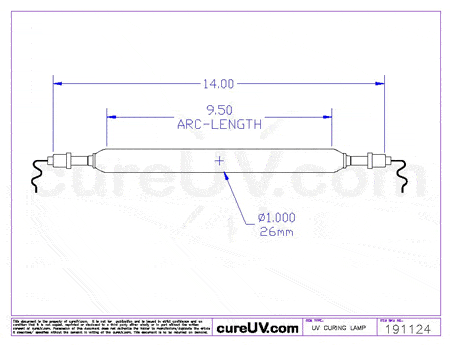

Leggett and Platt Virtu 3600 compatible UV lamp - Drawing (PDF)

Leggett and Platt Virtu 3600 Compatible Inkjet Printer UV Curing Lamp drawing

*All lamps listed are compatible brand UV products. We do not sell Leggett & Platt brand lamps. All Leggett & Platt brand names, trademarks and logos are property of Leggett & Platt.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
