Germicidal UV Bulbs - Lennox International UV523 Replacement UVC Light Bulb
Germicidal UV Bulbs - Lennox International UV523 Replacement UVC Light Bulb Germicidal UV Bulbs - Lennox International UV523 Replacement UVC Light Bulb Germicidal UV Bulbs - Lennox International UV523 Replacement UVC Light Bulb

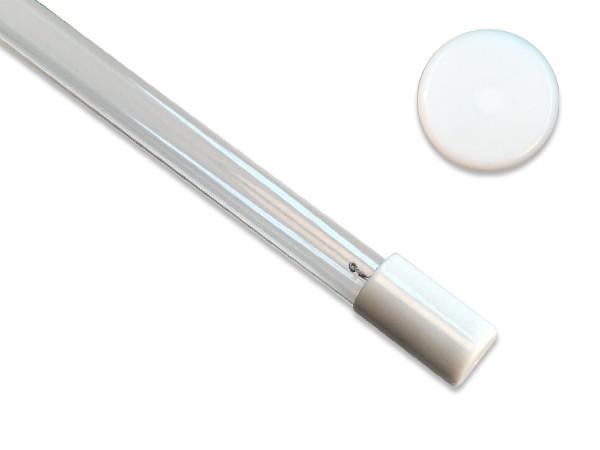

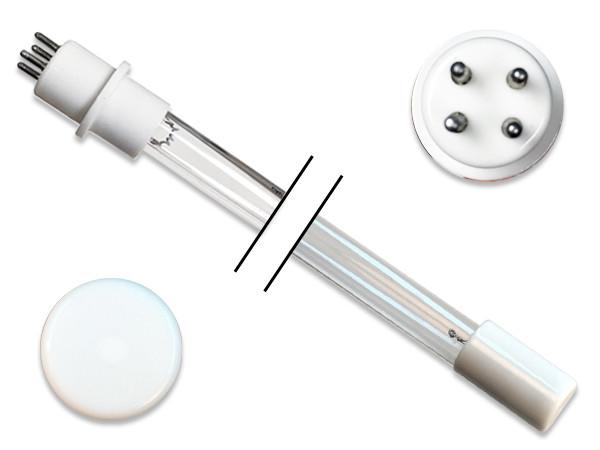

Lennox International UV523 Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$50.00

22 Watt Air Treatment UV Bulb - 4 Pin Cell Base on a Single End

The Lennox International UV523 Replacement UVC Light Bulb is a 22 Watt Air Treatment UV Bulb that has 4 Pin Cell Base on a Single End. With a wavelength range of 254 nm, the four pin cell base on a single end and an average lifespan of 10,000 hours. We recommend that you replace the light bulb after the stipulated time for better efficiency of the system.

The germicidal light bulb from CureUV.com features a wavelength with lethal effectiveness of up to 254nm that helps in disrupting the DNA of harmful microorganisms and renders them harmless. You get a 12 month worry free water sanitizing operation after which the light may still be visible but the germ destroying ability of the system may have reduced.

The germicidal water treatment bulb comes with a shatterproof coating that protects the lamp during damage. The coating also keeps the lamp glass from falling into the unit. This results in easy disposal of glass if it shatters and renders it easy to operate the system. All you will need to do is to select the option above. The UV lamp starts instantly and makes use of a coil filament that operates hot.

Technical Specifications:

  • Total Length: 16.14 inches (410mm)
  • Arc Length: 12.99 inches (330mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 420mA
  • Lamp Voltage: 52V
  • Lamp Wattage: 22 Watts
  • Output UVC Watts: 8 Watts
  • Output uW/cm^2 @ 1m: 70
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin cell base on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours
    Spectral Output of Germicidal UVC Light Bulbs

    Spectral Output of Germicidal UVC Light Bulbs (PDF)

    *Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

    *All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Lennox International brand UVC bulbs. All Lennox brand names, trademarks, and logos are property of Lennox International.

    *Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

    Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
