Lennox International UVC-24V Replacement Germicidal Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$50.00

22 Watt Air Treatment UV Bulb - 4 Pin Cell Base on a Single End

The Lennox International UVC-24V Replacement Germicidal Light Bulb is a 22 Watt Air Treatment UV Bulb that has 4 Pin Cell Base on a Single End. The germicidal UV bulb has ceramic as its base material. The germicidal water treatment bulb has an average lifespan of 10,000 hours after which we recommend that you replace the light bulb.

CureUV’s ultraviolet lamps are manufactured using the high industry standards and meets or exceeds the OEM specifications. We ensure that each lamp from CureUV undergoes 100% quality control inspection to provide you utmost safety with water. The UVC bulb features a wavelength with lethal effectiveness of up to 254nm. This causes a disruption of the microorganism DNA and renders them harmless. Measuring at 16.14 inches in length, this UVC lamp has a life of up to 10,000 hours. With CureUV’s UV lamp you get a 12 month worry free operation after which we recommend that you replace the light bulb.

The germicidal water treatment bulb comes with a shatterproof coating that protects the lamp during damage. The coating also keeps the lamp glass from falling into the unit. This results in easy disposal of glass if it shatters and renders it easy to operate the system. All you will need to do is to select the option above. The UV lamp starts instantly and makes use of a coil filament that operates hot.

Technical Specifications:

  • Total Length: 16.14 inches (410mm)
  • Arc Length: 12.99 inches (330mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 420mA
  • Lamp Voltage: 52V
  • Lamp Wattage: 22 Watts
  • Output UVC Watts: 8 Watts
  • Output uW/cm^2 @ 1m: 70
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone

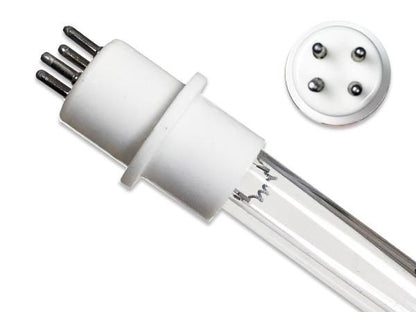

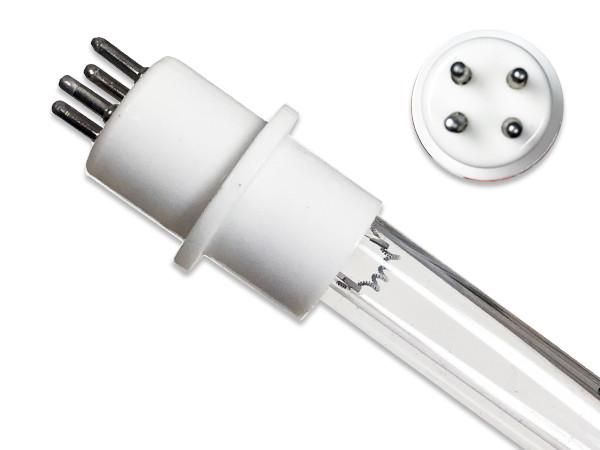

  • Base Style: 4 pin cell base on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours
    Spectral Output of Germicidal UVC Light Bulbs

    Spectral Output of Germicidal UVC Light Bulbs (PDF)

    *Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

    *All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Lennox International brand UVC bulbs. All Lennox brand names, trademarks, and logos are property of Lennox International.

    *Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

    Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
