UV Curing Lamp - Liberty Part # SMI2H104 UV Curing Lamp Bulb
UV Curing Lamp - Liberty Part # SMI2H104 UV Curing Lamp Bulb UV Curing Lamp - Liberty Part # SMI2H104 UV Curing Lamp Bulb

Liberty Part # SMI2H104 UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 42 Inch Arc Length - 48.125 Inch Total Length (end to end)

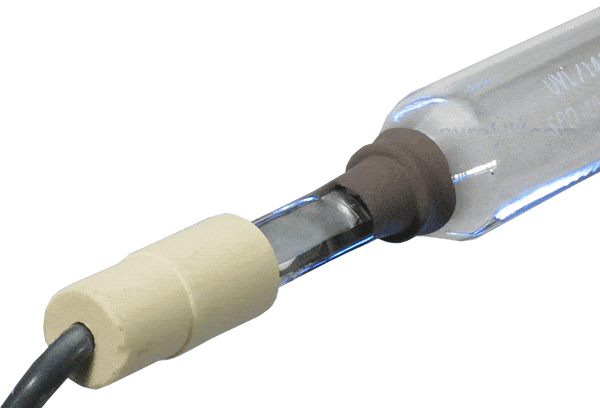

The Liberty Part # SMI2H104 UV Curing Lamp Bulb is a mercury filled lamp bulb that has an arc length of 42 inches and a total length of 48.12 inches. With a tube diameter of 1.03 inches, the 300 WPI lamp bulb exceeds OEM standards of UV curing bulb performance and works well with the following part numbers:

  • SMI2H104
  • S6842A5C
  • H42B5F1
  • UVL/143

The UV printer bulb is manufactured in the USA and has a predictable lifespan. CureUV ensures that you can find UV lamps for printers in different arc length and spectral fills. In heat curing there is a release of volatile organic compounds that is absent in curing using UV rays. This makes UV curing an eco-friendly option. The curing lamp consists of a quartz plate and keeps the lamp away from debris. It works as a filter between the curing system and the lamp. Light curing enables the ink to harden and dry instantly.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 42 inches
  • Total Length: 48.125 inches
  • Tube Diameter: 1.035 inches
  • Watts Per Inch: 300 WPI

UV spectral output of a Mercury Lamp

UV Spectral Output of a Mercury Lamp (PDF)

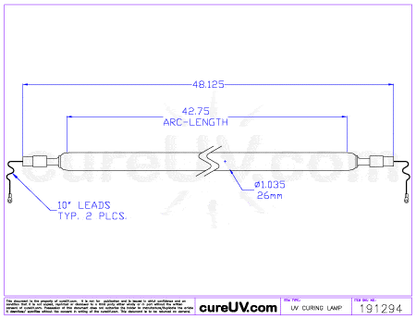

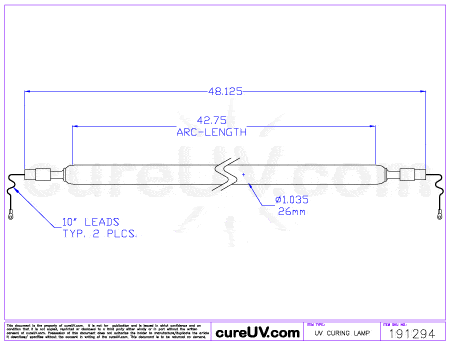

Liberty SMI2H104 UV Curing Lamp - Drawing (PDF)

Liberty SMI2H104 compatible UV curing lamp drawing

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
