UV Curing Lamp - Liberty Voltarc Part # 11J02701 UV Curing Lamp Bulb
UV Curing Lamp - Liberty Voltarc Part # 11J02701 UV Curing Lamp Bulb UV Curing Lamp - Liberty Voltarc Part # 11J02701 UV Curing Lamp Bulb

Liberty Voltarc Part # 11J02701 UV Curing Lamp Bulb
Free Gift

SKU: UV Bulb Price Match Guarantee
$318.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp

The Liberty Voltarc Part # 11J02701 UV Curing Lamp Bulb is a 100% compatible replacement lamp bulb that exceeds OEM standards of UV curing bulb performance. The lamp bulb is 100% compatible to the Liberty Voltarc UV systems and works well with the following part numbers:

  • Albatross H11B-3-F1
  • 11J02701
  • S75105A8CMHS

The UV lamps in printers are connected to the photo initiators and the ink raw materials. A strong UV light is a must for printing as weak UV light fails to cure properly and the ink feels sticky. The 11" UV replacement lamp exceeds OEM standards and is subjected to strict quality control measures and gives you a printing experience you desire. There are studies which show that as the bulb hour increases the lamp produces lesser UV light and more heat. Excess heat causes the print media to bulge and it can also damage the shutters and the reflectors in the lamp housing, leading to enormous repairing costs. Therefore, we suggest that you use a good quality UV lamp like the one from CureUV.

Technical Specifications:

  • Fill: Iron
  • Quartz: Standard
  • Arc Length: 10.75 Inches
  • Overall Length: 15.31 Inches
  • Tube Diameter: 23mm

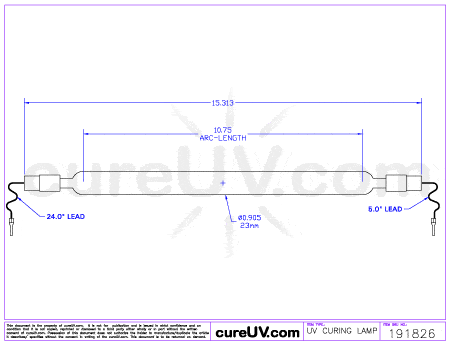

Liberty 11J02701 compatible digital UV curing lamp drawing

Liberty 11J02701 Compatible Digital UV Lamp - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
