UV Curing Lamp - Makor Part # A9912MAK/G UV Curing Lamp Bulb
UV Curing Lamp - Makor Part # A9912MAK/G UV Curing Lamp Bulb UV Curing Lamp - Makor Part # A9912MAK/G UV Curing Lamp Bulb

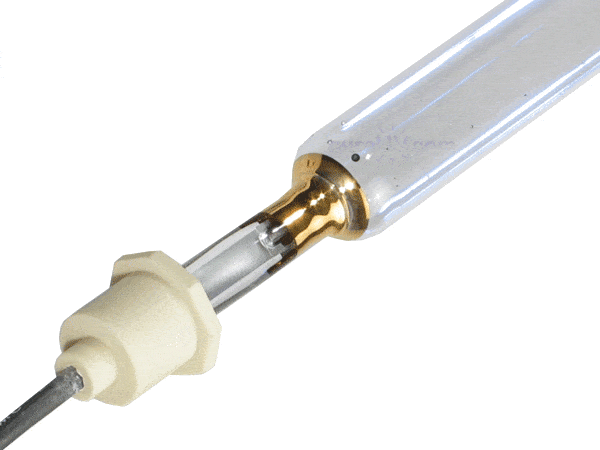

Makor Part # A9912MAK/G UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$275.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 12 Inch Arc Length - 17.50 Inch Total Length (end to end)

The Makor Part # A9912MAK/G UV Curing Lamp Bulb is a 100% compatible replacement lamp bulb that has an output power of 400 WPI. The mercury filled lamp bulb has an arc length of 12 inches and an overall length of 17.50 inches. The lamp bulb is compatible to the Makor UV systems and to the following part numbers:

  • A9912MAKG

Compared to the traditional curing methods, the UV curing lamp bulb is an eco-friendly, cost-effective and an economical option. Manufactured in the USA, the UV printer lamp bulb has a predictable life span. It helps in instantly drying of coatings of inks and signs. The quartz plate present in the lamp prevents grit, dirt and contaminants from building up on the lamp. When the bulb hour rises, the lamp tends to produce less UV light and more heat. When the heat is intense it results in the print media bulging and also causes damage to the shutters and reflectors in the lamp housing. This could lead to high repairing costs and bad output. Replacing with the Makor Part # A9912MAK/G UV Curing Lamp Bulb from CureUV keeps your printer well maintained.

Technical Specification:

  • Output Power: 400 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 12 Inches
  • Overall Length: 17.50 Inches

UV Spectral Output of a Mercury Lamp

Spectral Output of a Mercury UV Lamp (PDF)

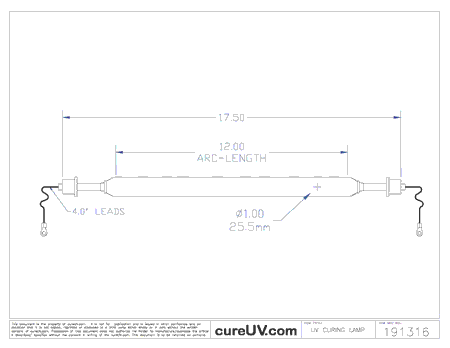

Makor compatible UV lamp - OEM part number A9912MAK/G - Drawing (PDF)

Makor Compatible UV Curing Lamp - OEM Part Number A9912MAK/G drawing

*All lamps listed are compatible brand UV products. We do not sell Makor brand lamps. All Makor brand names, trademarks and logos are property of Makor.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
