4 Pin on a Single End - 22 Watt Germicidal Water Treatment Bulb
Our Master Water Conditioning GPH450T5VH/4 Replacement UVC Light Bulb is a four pin on a single end germicidal water treatment bulb that has lamp wattage of 22 Watts. The UVC lamp bulb has a total length of 17.72" and an arc length of 14.57". The UVC light bulb has lamp wattage of 22Watts and a peak output of 253.7nm. It has a base material of ceramic and a rated life of 10,000 hours. It is recommended to replace the light bulb after its stipulated time for better efficiency of the system. The UVC bulb is compatible for use with the following germicidal system models:
The UVC light technology is capable of destroying bacteria, molds, virus, yeast and protozoa. It emits a short wavelength in water that destroys the genetics of microorganisms rendering them harmless against reproduction.
The germicidal replacement light bulb works for the following common applications:
- Beverage Services and Processing
- Drinking Water
- Food Services and Processing
- Municipal Wastewater
- Pools, Spas, and Water Features
- Well Water
- Total Length: 17.72 inches (450mm)
- Arc Length: 14.57 inches (370mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 425mA
- Lamp Voltage: 15.53V
- Lamp Wattage: 22 Watts
- Output UVC Watts: 6.6 Watts
- Output uW/cm^2 @ 1m: 62
- Peak UV Output: 253.7nm
- Glass Type: Non Ozone
- Base Style: 4 pin on a single end
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
Common Locations for use:

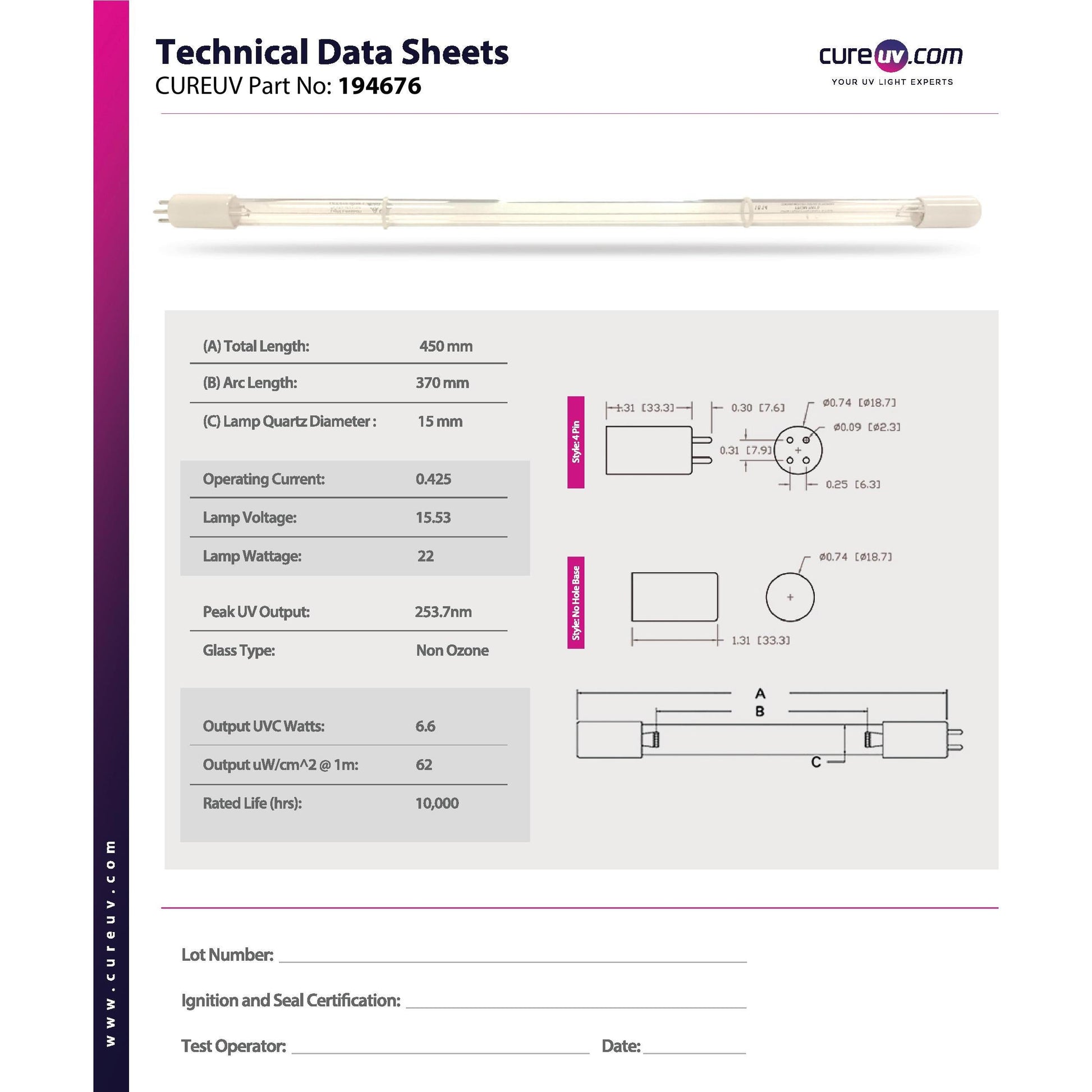

Technical Data Sheets:
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Master Water Conditioning brand UVC bulbs. All Master Water Conditioning brand names, trademarks, and logos are property of Master Water Conditioning.
*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
