Germicidal UV Bulbs - Master Water Conditioning GPH810T5VH/4 Replacement UVC Light Bulb
Germicidal UV Bulbs - Master Water Conditioning GPH810T5VH/4 Replacement UVC Light Bulb Germicidal UV Bulbs - Master Water Conditioning GPH810T5VH/4 Replacement UVC Light Bulb Germicidal UV Bulbs - Master Water Conditioning GPH810T5VH/4 Replacement UVC Light Bulb Germicidal UV Bulbs - Master Water Conditioning GPH810T5VH/4 Replacement UVC Light Bulb Germicidal UV Bulbs - Master Water Conditioning GPH810T5VH/4 Replacement UVC Light Bulb

Master Water Conditioning GPH810T5VH/4 Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$48.00

4 Pin on a Single End - 39 Watt Germicidal Water Treatment Bulb

The Master Water Conditioning GPH810T5VH/4 Replacement UVC Light Bulb is a four pin on a single end 39 Watt germicidal water treatment bulb that has an arc length of 28.74" and a total length of 31.89". The UVC lamp has lamp wattage of 39 Watts and is constructed with ceramic as its base material. The UVC light bulb has a rated life of 10,000 hours after which we recommend that you replace the lamp bulb for better efficiency. The UVC lamp bulb is compatible for use with the following system models:

  • HI-MSV-20
  • MWC-E20

The UVC light technology helps in sterilizing bacteria, yeast, virus and protozoa. The light bulb emits a short wavelength of 253.7nm that reacts with the DNA of the microorganisms rendering them harmless and prevents them from reproduction. Water treatment using the UVC method requires no handling of chemicals and it does not need any specialized storage. The UVC treatment of water does not cause change in odor, taste, chemistry and pH of water. This method is a preferred method of water treatment from chemicals and their byproducts.

Common Applications:

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Technical Specifications:

  • Total Length: 31.89 inches (810mm)
  • Arc Length: 28.74 inches (730mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Wattage: 39 Watts
  • Output UVC Watts: 13.8 Watts
  • Output uW/cm^2 @ 1m: 130
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194677 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

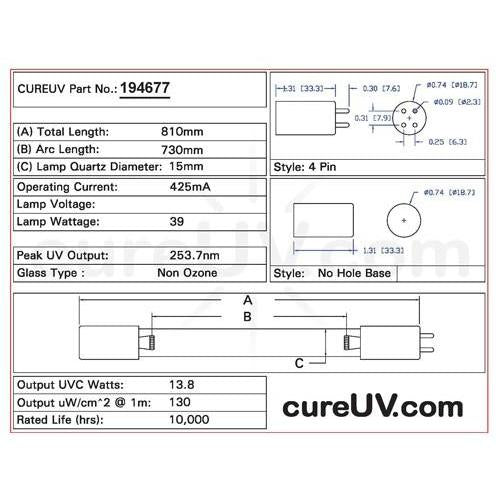

Drawing of Master Water Conditioning GPH810T5VH/4 UVC Bulb - item # 194677

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Master Water Conditioning brand UVC bulbs. All Master Water Conditioning brand names, trademarks, and logos are property of Master Water Conditioning.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
