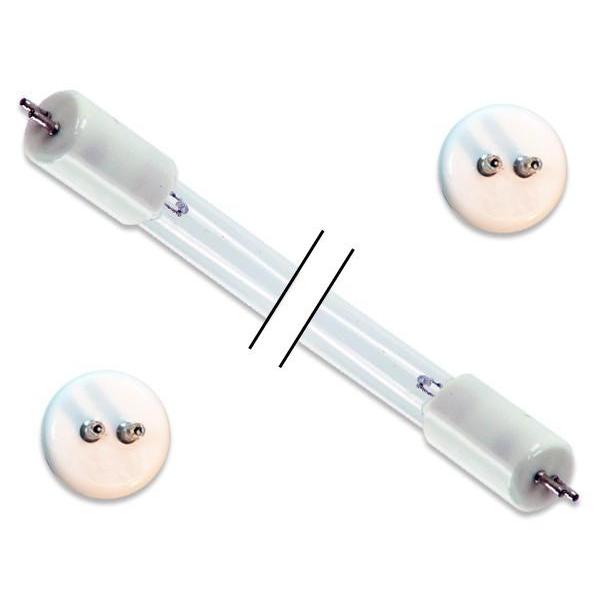

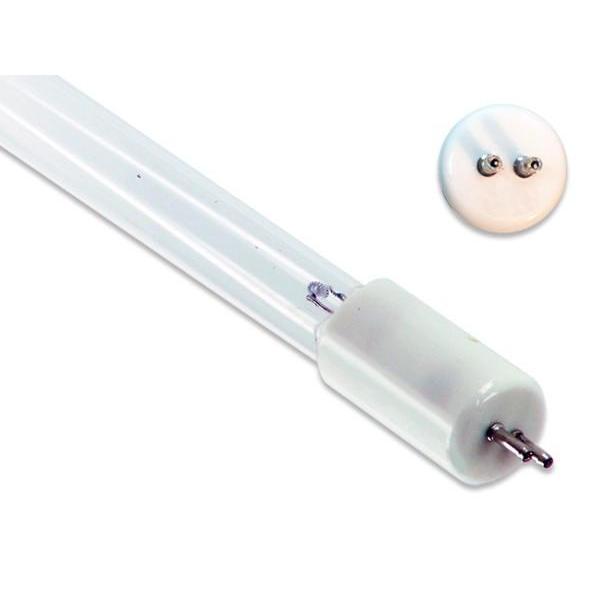

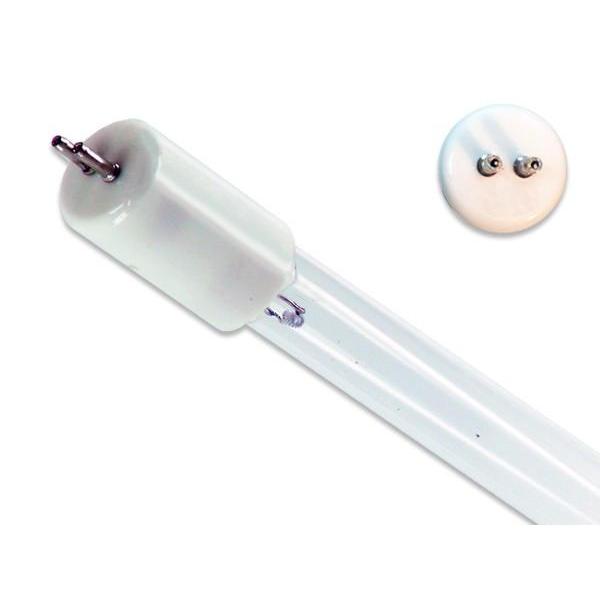

Miniature 2 Pin Double Ended - 24 Watt Germicidal Water Treatment Bulb
Our Master Water Conditioning HI-MSP-6165 Replacement UVC Light Bulb is a miniature two pin double ended 24 Watt germicidal treatment bulb that has a total length of 17.17". The replacement light bulb also has an arc length of 14.17" and a lamp voltage of 67V. The UVC light bulb is rated to work for up to 10,000 hours after which we highly recommend that you replace the light bulb for better efficiency. It is compatible for use with the following germicidal UVC system models:
The UVC technology helps in sterilizing and killing 99.9% microorganisms present in water. Get a 12 month worry free operation after which we recommend that you replace the light bulb for better efficiency. UV radiations work on microorganisms such as bacteria, virus, yeast and protozoa and attack their DNA structure to render them incapable of reproduction. This method is a purely physical method of water treatment and does not involve chemical, which makes this an eco-friendly method of water treatment.
- Total Length: 17.17 inches (436mm)
- Arc Length: 14.17 inches (360mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 370mA
- Lamp Voltage: 67V
- Lamp Wattage: 24 Watts
- Peak UV Output: 253.7nm
- Glass Type: Non Ozone
- Base Style: Miniature Bi-Pin (2 pin) double ended
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
- Beverage Services and Processing
- Drinking Water
- Food Services and Processing
- Municipal Wastewater
- Pools, Spas, and Water Features
- Well Water
Common Locations for use:

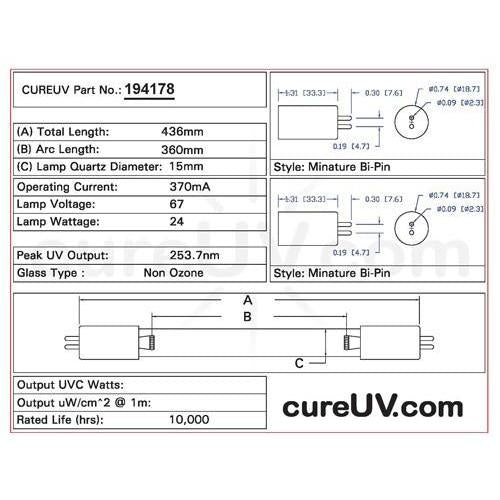

Drawing of Replacement UVC Bulb Item # 194178 (PDF)
UVC Light Disinfection Dosage Chart (PDF)
Spectral Output of Germicidal UVC Light Bulbs (PDF)
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Master Water Conditioning brand UVC bulbs. All Master Water Conditioning brand names, trademarks, and logos are property of Master Water Conditioning.
*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
