Master Water Conditioning HI-MSP-9360 Replacement UVC Light Bulb
Master Water Conditioning HI-MSP-9360 Replacement UVC Light Bulb
SKU:192296
In stock

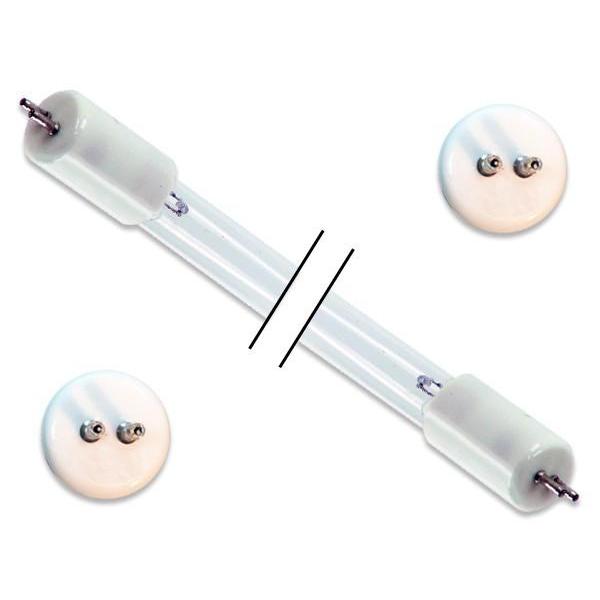

Miniature 2 Pin Double Ended - 38 Watt Germicidal Water Treatment Bulb
The Master Water Conditioning Hi-MSP-9360 Replacement UVC Light Bulb is a miniature two pin double ended germicidal water treatment bulb that has a total length of 31.22" and an arc length of 27.76". The 38 Watt treatment bulb has a rated life of 10,000 hours after which we highly recommend that you replace the light bulb for efficiency of the system. This UVC bulb is compatible for use with the following UVC system models:
- HI-MSP-9360
It is completely compatible with UV sanitizers, OEM water disinfection filters and UV purifiers. This light bulb is designed to sanitize and kill over 99.99% germs in water such as molds, protozoa, yeast and bacteria. The short UV wavelength of 253.7 nm emitted by the light bulb enables thorough disinfection and results in altering the genetics of the microorganism. This destroys the microorganisms rendering them harmless. It is necessary to schedule annual replacement of the bulb to ensure efficiency. Even after a year the UV bulb emits light but may have reduced its capacity to kill microorganisms.
Common Applications
- Aquaculture
- Beverage Services and Processing
- Drinking Water
- Food Services and Processing
- Municipal Wastewater
- Pools, Spas, and Water Features
- Well Water
Technical Specifications:
- Total Length: 31.22 inches (793mm)
- Arc Length: 27.76 inches (705mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 425mA
- Lamp Voltage: 113V
- Lamp Wattage: 38 Watts
- Output UVC Watts: 13.5 Watts
- Output uW/cm^2 @ 1m: 125
- Peak UV Output: 253.7nm
- Glass Type: Non Ozone
- Base Style: Miniature Bi-Pin (2 pin) double ended
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
Common Locations for use:
- Factories
- Farms
- Homes
- Hospitals
- Hotels
- Laboratories
- Ships
Drawing of Replacement UVC Bulb Item # 192296 (PDF)
UVC Light Disinfection Dosage Chart (PDF)
Spectral Output of Germicidal UVC Light Bulbs (PDF)
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Master Water Conditioning brand UVC bulbs. All Master Water Conditioning brand names, trademarks, and logos are property of Master Water Conditioning.
*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
Safety Data Sheet for CureUV Germicidal Bulb
Safety Data Sheet for CureUV Germicidal Bulb
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
