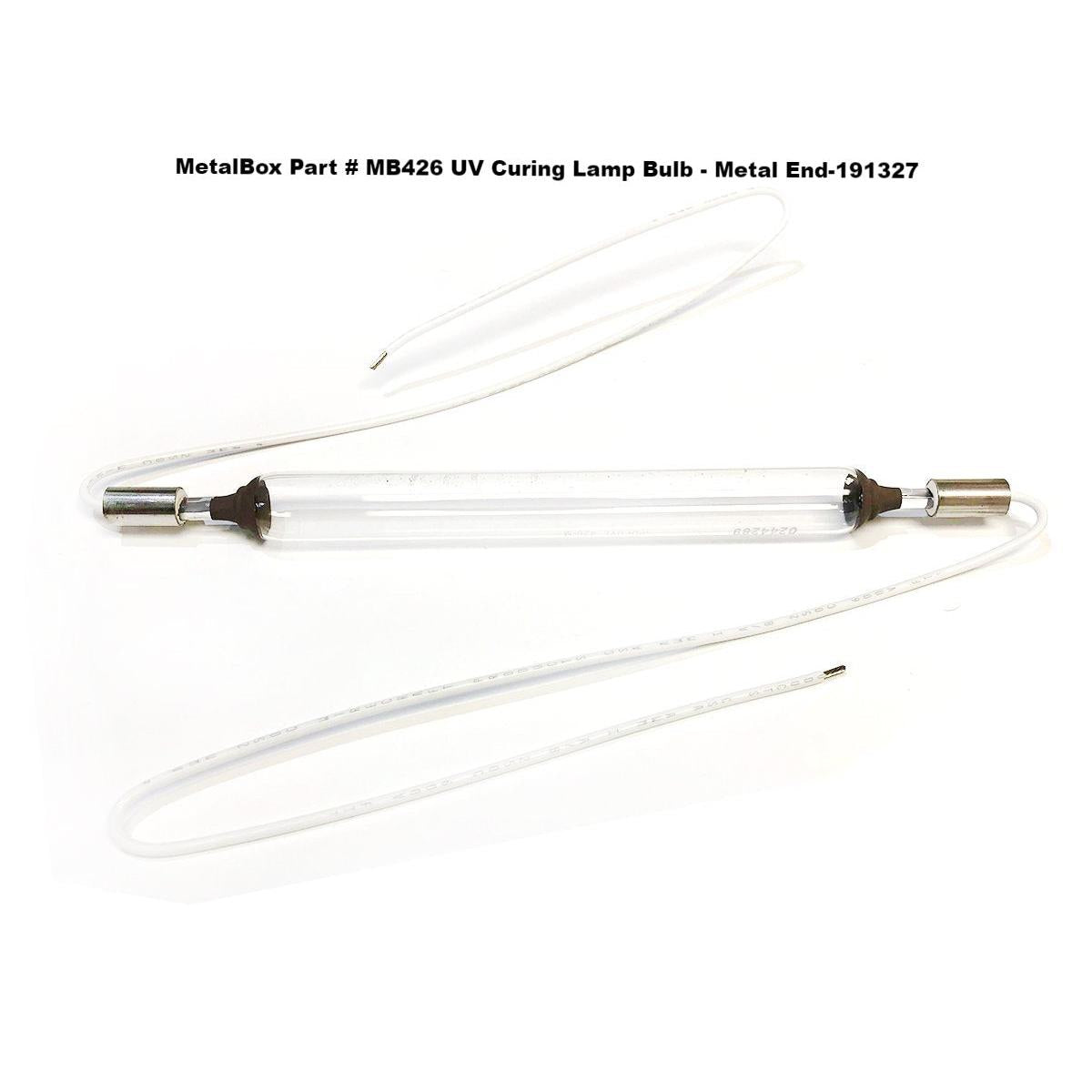

MetalBox Part # MB426 UV Curing Lamp Bulb - Metal End

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 6 Inch Arc Length - 10 Inch Total Length (end to end)

The Metalbox Part # MB426 UV Curing Lamp Bulb - Metal End is a 6 inch lamp bulb that has a total length of 10 inches. Filled with mercury this 500 WPI lamp bulb exceeds OEM standards of UV curing bulb performance. The lamp bulb is completely compatible to the Metalbox UV systems and works well for the following part numbers:

• MB426
• AM3227X
• 35206046
• SLI106CDT182
• 35206046
• AM3127X
• PM426

The 100% compatible UV lamp bulb provides OEM quality and enhanced lamp life. We provide UV lamps for printers in different arc lengths and spectral fills at a cost-effective rate. Further, our lamps provide better UV output, are manufactured in the USA and have a predictable lifespan.

The replacement lamps work to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up.

Technical Specifications:

• Output Power: 500 WPI
• Fill: Mercury
• Quartz: Standard

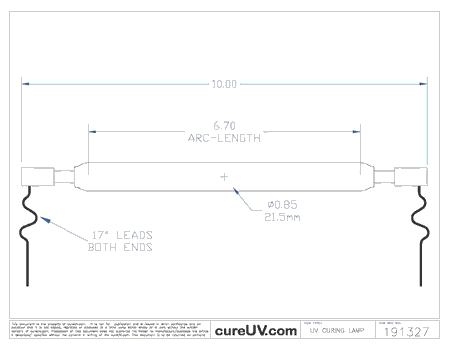

• Arc Length: 6 Inches
• Overall Length: 10.00 Inches

UV Spectral Output of a Mercury UV Lamp (PDF)

UV Lamp - Metal End - MetalBox UV System - MB426 (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
