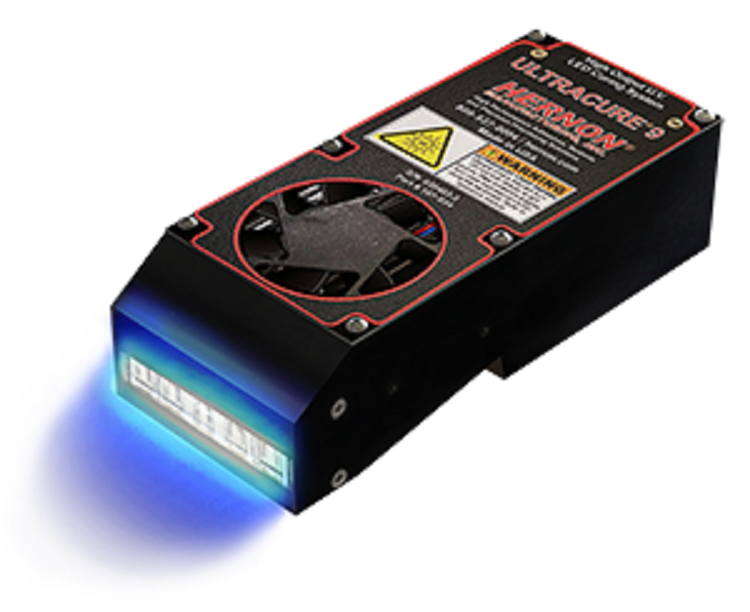

The LED Ultracure 9 system has a unique focused lens and is designed to quickly cure a wide variety of UV glues or compounds in full production industrial applications.
Medium pressure UV systems and bulbs can be cumbersome and take up a large amount of space on your line, also the amount of IR (heat) can be detrimental to the process at hand. LED's are paving the way in many industries, circuit board manufacturing, sensitive electronics, pharmaceutical equipment plus many others. Also with many improvements in recent technology they are becoming much more accessible and affordable.
With a UV array of 8mm x 50mm and the versatility of being used alone or in series the Ultracure 9 can be used for a multitude of tasks, from small jobs to full scale production. Each unit requires no lamp changes or expensive filters and is good for over 17,000 hours of continuous use.
The Ultracure's unique lens focuses the light and extends it's curing range to 3 x that of the Ultracure 6.
With quick hook up connections, on board cooling and status indicators set-up is easy and the overall footprint stays compact.
Features and Benefits:
- Special Lens increases UV intensity
- High Output 365nm LED
- Input 24vdc @ 700mA
- 2.5/W cm² maximum output @ 365nm
- Over temperature protection
- Power regulation built in
- I/O Port 5 pin CPC
- Self Cooled
- Mounting capability on rear and bottom
- Green indicator, power on and normal LED operation
- Red indicator Fault condition
- Weight 0.55lbs
- Dimensions (approx) L 6.25" x W 1.8" x H 1.5"
