Mountable UV LED Array - 13" Wide - 30W/cm2 at 395nm with Water Cooling and Touch Screen HMI Controls

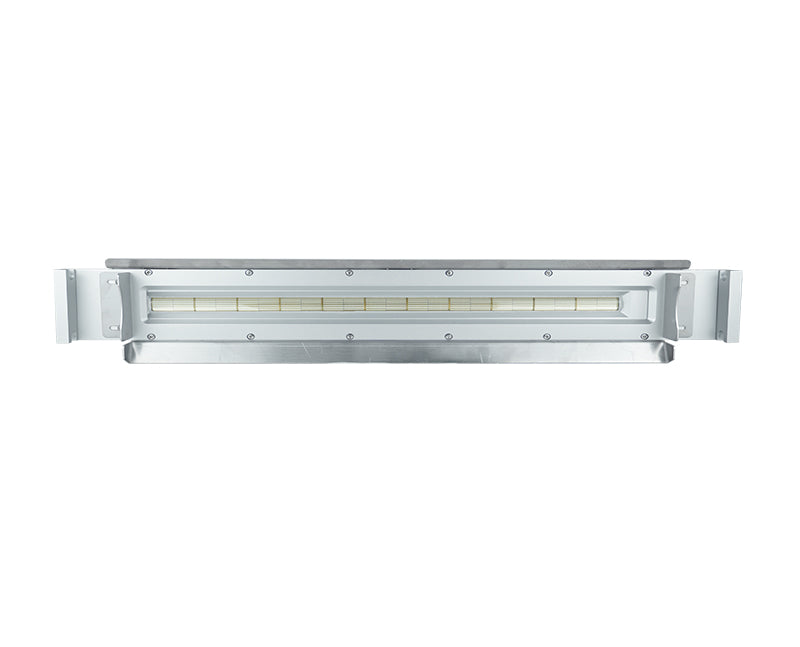

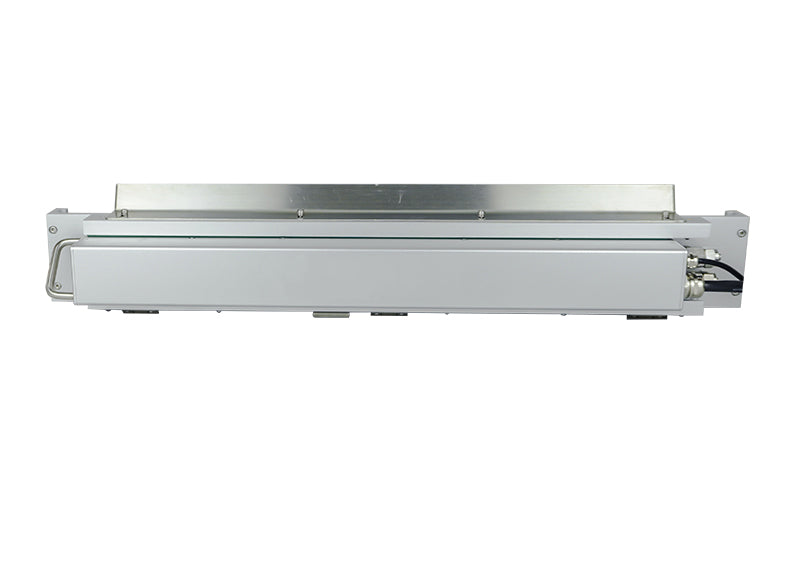

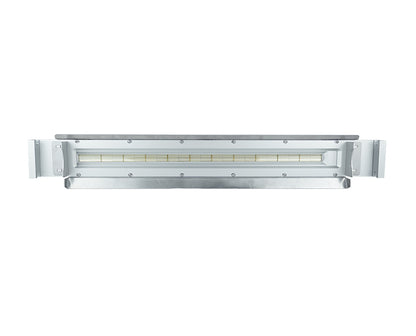

Mountable UV LED Array

• 13 inch wide Mountable LED Curing Array rated for 20,000 hours
• 395nm wavelength
• 30W/cm2 output
• HMI programmable touchscreen

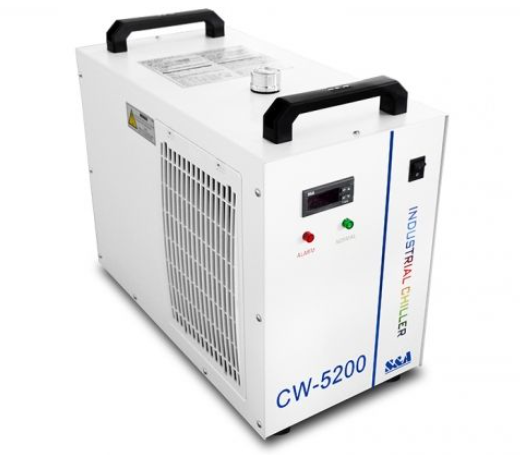

• Water cooling for 24/7 duty cycle (chiller included)

• Power intensity adjustable from 1 to 100%

• Programmable (please be sure to specify your program request before production starts)

Features:

• Integrated Water Cooling: ensures your array works as efficiently as possible, protecting the LED system and extending its useful life
• High-powered LED Systems: provide higher uniformity
• UV LED cold light source: ensures your material's composition won’t be harmed during the curing process
• Eco-friendly: produces no ozone nor uses mercury
• Signal linkage: power output is adjusted by the print speed automatically.
• Real-time detection: temperature/current/voltage abnormal alarm.
• Intelligent Control: The water flow of each lamp signal control individually, lamp on water on, lamp off water off.
• Instantly Turn On and Off: No preheating required, turn on and off instantly.
• Easy Installation and Use: There are quick plugs for both water and power.
• No warm-up required: the LED array reaches full output instantly, so there's no preheating downtime.
• Integrated water cooling: keeps the LED system running at peak efficiency and extends its service life.
• Energy efficient: high photoelectric conversion and concentrated energy output keep power draw low.
• Cold light source, cool cure: the UV LED emits negligible heat, protecting heat-sensitive materials during curing.

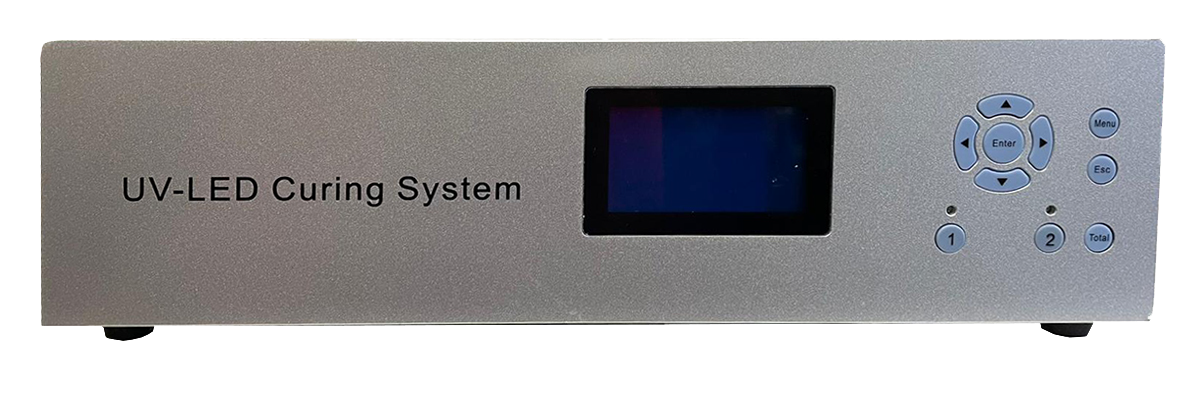

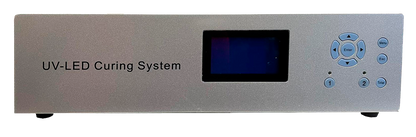

• Simple PLC touchscreen control: user-friendly operation that's quick to set up and run.

This equipment supports light source current, voltage, and temperature real-time monitoring function, when the light source is abnormal, the UVLED curing lamp equipment alarm prompts, and automatically shuts down the UVLED.

IO signal control allows you to easily configure the speed signal of the printing machine, light power with the speed of the printing machine automatically adjusts.

UVLED curing lamp equipment supports water cooler remote control, digital dimming, historical alarm information, irradiation time query, and other functions.

Manual mode: a stand-alone debugging mode that does not need to be associated with the printing machine running signal-independent operation.

Automatic mode: needs to be associated with the printing machine signal, equipment, and printing machine synchronous operation.







USER MANUAL

Water Chiller Technical Drawing

We can customize these systems to fit your needs exactly. We would love to help you with your UV LED Flexo Curing Array. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
