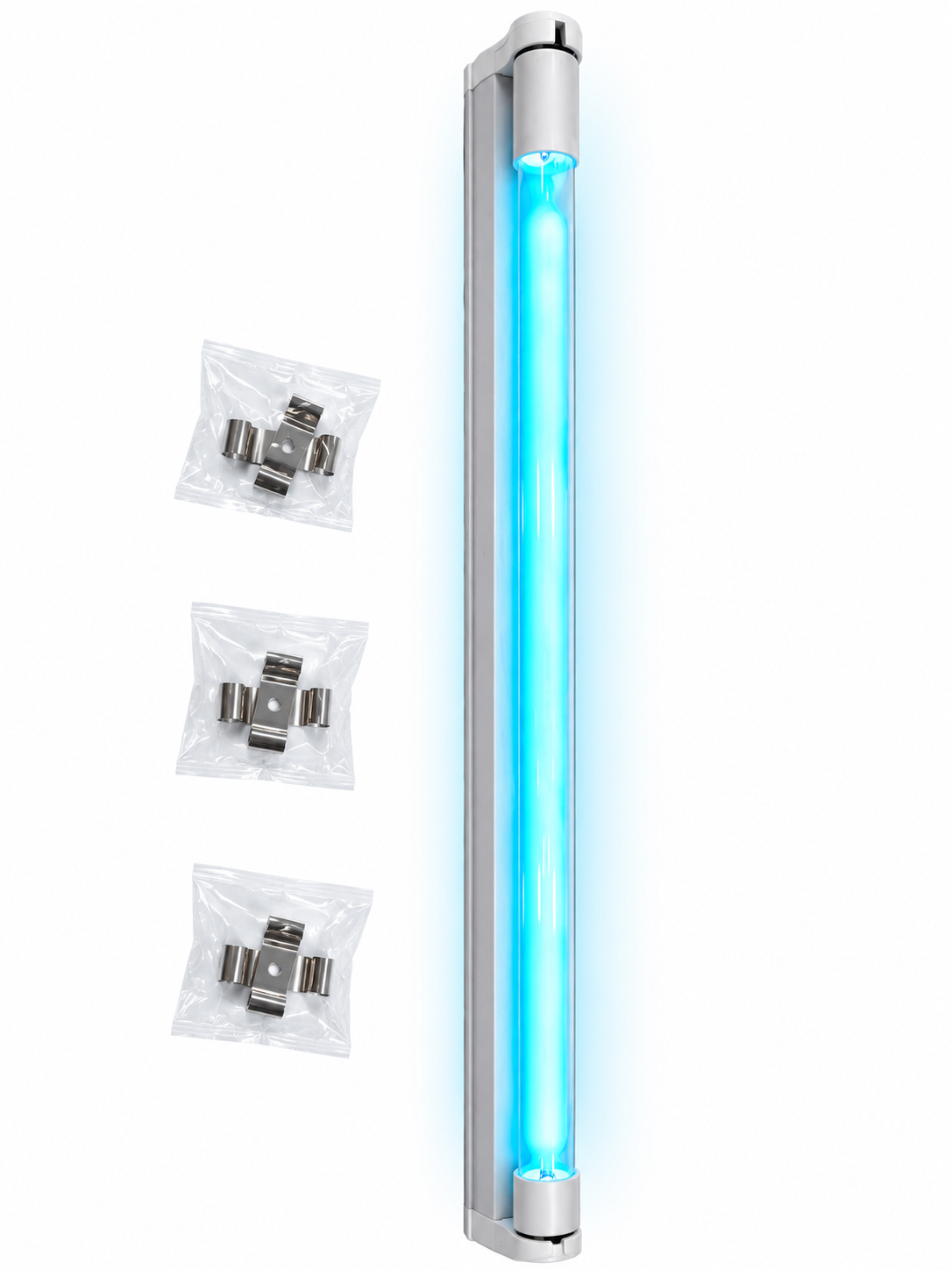

Mountable UVC Sanitizer System
The Mountable UVC Sanitizer System is a fixed-installation ultraviolet sanitation system designed to provide UVC treatment for a range of air and surface sanitation applications.
Its mountable configuration allows the system to be incorporated into HVAC equipment, surface-treatment installation, or room sanitation applications.
Modular Design: Each fixture is a complete UVC unit that can connect end-to-end with compatible fixtures to expand coverage across larger HVAC treatment areas.
Also Known As:
Also Known As:
Mountable UVC Sanitizer System - 18", 24", 36" & 48" Modular Configurations
System Overview
The Mountable UVC Sanitizer System provides a practical way to integrate UVC sanitation into equipment, enclosed treatment areas, or designated spaces. Rather than limiting the system to a single application, the mountable format provides installation flexibility for applications requiring controlled ultraviolet exposure.
Depending on the installation, the system can be positioned to direct UVC energy toward HVAC components, exposed surfaces, or designated areas within a room. Proper placement is important so that the treatment area receives direct UVC exposure appropriate for the intended sanitation process.
Modular Design: Each fixture is a complete UVC assembly with its own lamp, power source, housing, and lamp sockets. Male and female power connections allow compatible fixtures to be connected end-to-end, making it possible to expand UVC coverage across larger HVAC coils, drain pans, and treatment areas while keeping each fixture as an individual operating unit
Key Features
- Mountable design for fixed installations
- Suitable for HVAC sanitation application
- Suitable for exposed-surface sanitation
- Suitable for controlled room sanitation application
- Modular Design: Connect compatible fixtures end-to-end to expand UVC coverage
Technical Specifications
| Specification | 18" | 24" | 36" | 48" |
|---|---|---|---|---|
| System Design | Modular | Modular | Modular | Modular |
| Nominal System Size | 18" | 24" | 36" | 48" |
| Voltage | 120V/60Hz | 120V/60Hz | 120V/60Hz | 120V/60Hz |
| Lamp Type | High-output, hot-cathode T8 UVC | High-output, hot-cathode T8 UVC | High-output, hot-cathode T8 UVC | High-output, hot-cathode T8 UVC |
| Lamp Base | Medium bi-pin | Medium bi-pin | Medium bi-pin | Medium bi-pin |
| UVC Wavelength | 254 nm | 254 nm | 254 nm | 254 nm |
| Approx. Weight | 3 lb | 5 lb | 6 lb | 8 lb |
| Power Source | Electronic, high-frequency rapid-start | Electronic, high-frequency rapid-start | Electronic, high-frequency rapid-start | Electronic, high-frequency rapid-start |
| Connection | Male & female power plugs | Male & female power plugs | Male & female power plugs | Male & female power plugs |
