Germicidal UV Bulbs - Neptune WTA 05-0293-1 Replacement UVC Light Bulb
Germicidal UV Bulbs - Neptune WTA 05-0293-1 Replacement UVC Light Bulb Germicidal UV Bulbs - Neptune WTA 05-0293-1 Replacement UVC Light Bulb Germicidal UV Bulbs - Neptune WTA 05-0293-1 Replacement UVC Light Bulb Germicidal UV Bulbs - Neptune WTA 05-0293-1 Replacement UVC Light Bulb Neptune WTA 05-0293-1 Replacement UVC Light Bulb

Neptune WTA 05-0293-1 Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$41.99

4 Pin on a Single End - 16 Watt Germicidal Water Treatment Bulb

The Neptune WTA 05-0293-1 Replacement UVC Light Bulb has a total length of 14.06" and an arc length of 10.83". The light bulb has a lamp voltage of 56V and has a four pin on a single end base style. The UVC light bulb has a ceramic base and has a rated life of 10,000 hours. The replacement light bulb is made using highest quality standards and is compatible for use with the following germicidal UVC system models:

  • 1000
  • 1010
  • 1020
  • 1030
  • 2000
  • 2010
  • 2020
  • 2030

The UVC light bulb is 100% compatible with germicidal OEM water disinfection filters, UV sanitizers, and ultraviolet water purifiers. It has a 12 months life span after which we recommend that you replace the lamp bulb for better system efficiency. People are of the opinion that this system provides a safe solution against microorganisms such as giardia and cryptosporidium that are considered to be chlorine resistant. UV light bulb such as this one emits energy at 253.7 nm wavelength and this energy reacts photo-chemically with the genetics of the microorganisms.

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Technical Specifications:

  • Total Length: 14.06 inches (357mm)
  • Arc Length: 10.83 inches (275mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 320mA
  • Lamp Voltage: 56V
  • Lamp Wattage: 16 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

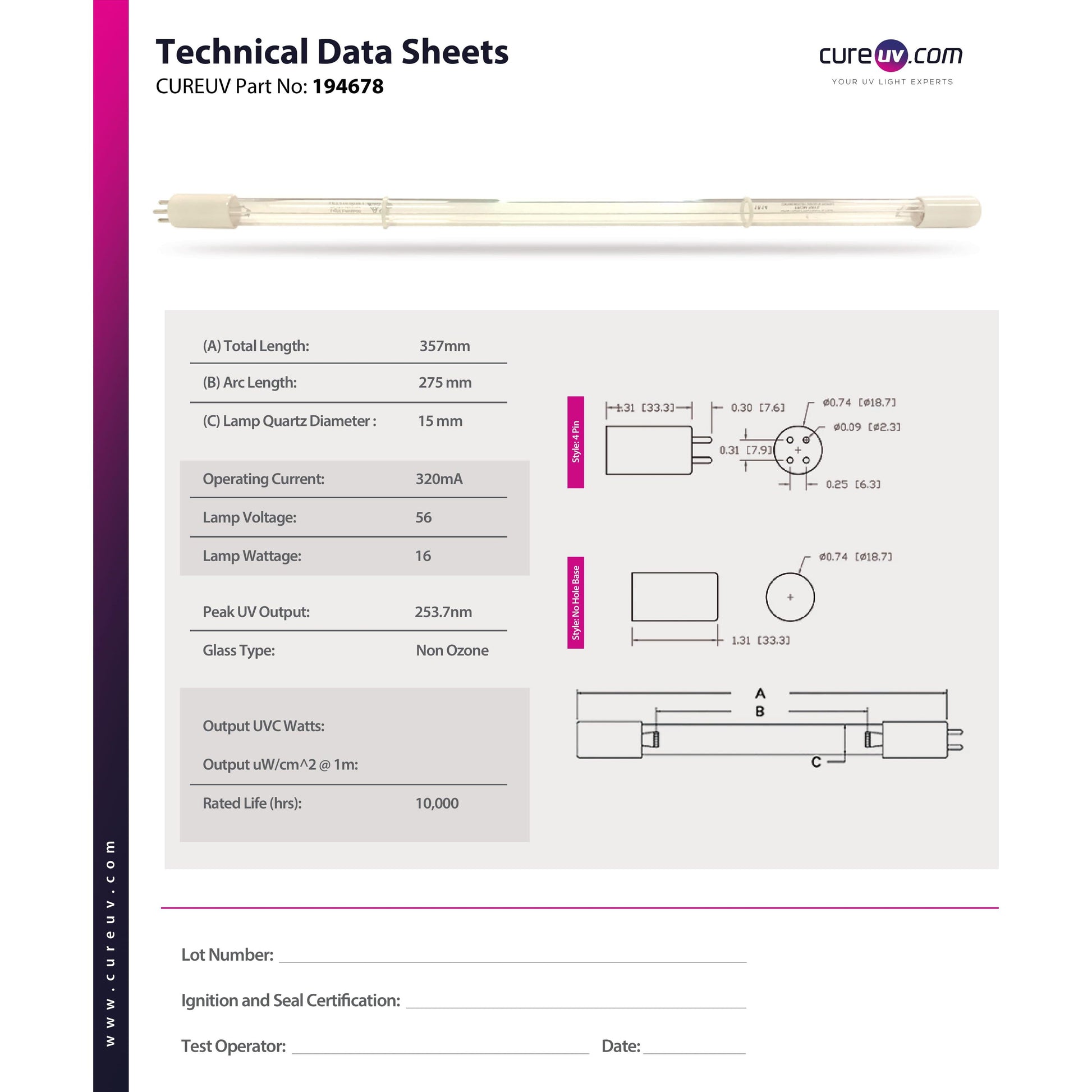

Technical Data Sheets:

Spectral Output of Germicidal UVC Light Bulbs


UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Neptune brand UVC bulbs. All Neptune brand names, trademarks, and logos are property of Neptune.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
