Germicidal UV Bulbs - Neptune WTA 05-0293-R Replacement UVC Light Bulb
Germicidal UV Bulbs - Neptune WTA 05-0293-R Replacement UVC Light Bulb Germicidal UV Bulbs - Neptune WTA 05-0293-R Replacement UVC Light Bulb Germicidal UV Bulbs - Neptune WTA 05-0293-R Replacement UVC Light Bulb Germicidal UV Bulbs - Neptune WTA 05-0293-R Replacement UVC Light Bulb Neptune WTA 05-0293-R Replacement UVC Light Bulb

Neptune WTA 05-0293-R Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$39.99

4 Pin on a Single End - 16 Watt Germicidal Water Treatment Bulb

The Neptune WTA 05-0293-R Replacement UVC Light Bulb has a four pin on a single end and a ceramic base. This replacement light bulb has a total length of 14.06" and an arc length of 10.83". The UVC light bulb is compatible with the following system models:

  • 1000
  • 1010
  • 1020
  • 1030
  • 2000
  • 2010
  • 2020
  • 2030

The UVC light technology is capable of sterilizing and killing 99.9% germs such as bacteria, virus, protozoa, yeast and molds. These specialized UV lamps from CureUV produce high quantity damaging ultraviolet light that destroys organisms without altering the composition of water, its pH or taste. This method of purification is safe for human consumption unlike the side effects of chemicals like chlorine. Our lamps are tested and certified by our expert quality assurance teams that ensure you get the best of UV system.

The germicidal light bulb features a wavelength with lethal effectiveness of up to 253.7nm. Researchers believe that this wavelength may help in disrupting the DNA of harmful microorganisms.

Technical Specifications:

  • Total Length: 14.06 inches (357mm)
  • Arc Length: 10.83 inches (275mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 320mA
  • Lamp Voltage: 56V
  • Lamp Wattage: 16 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

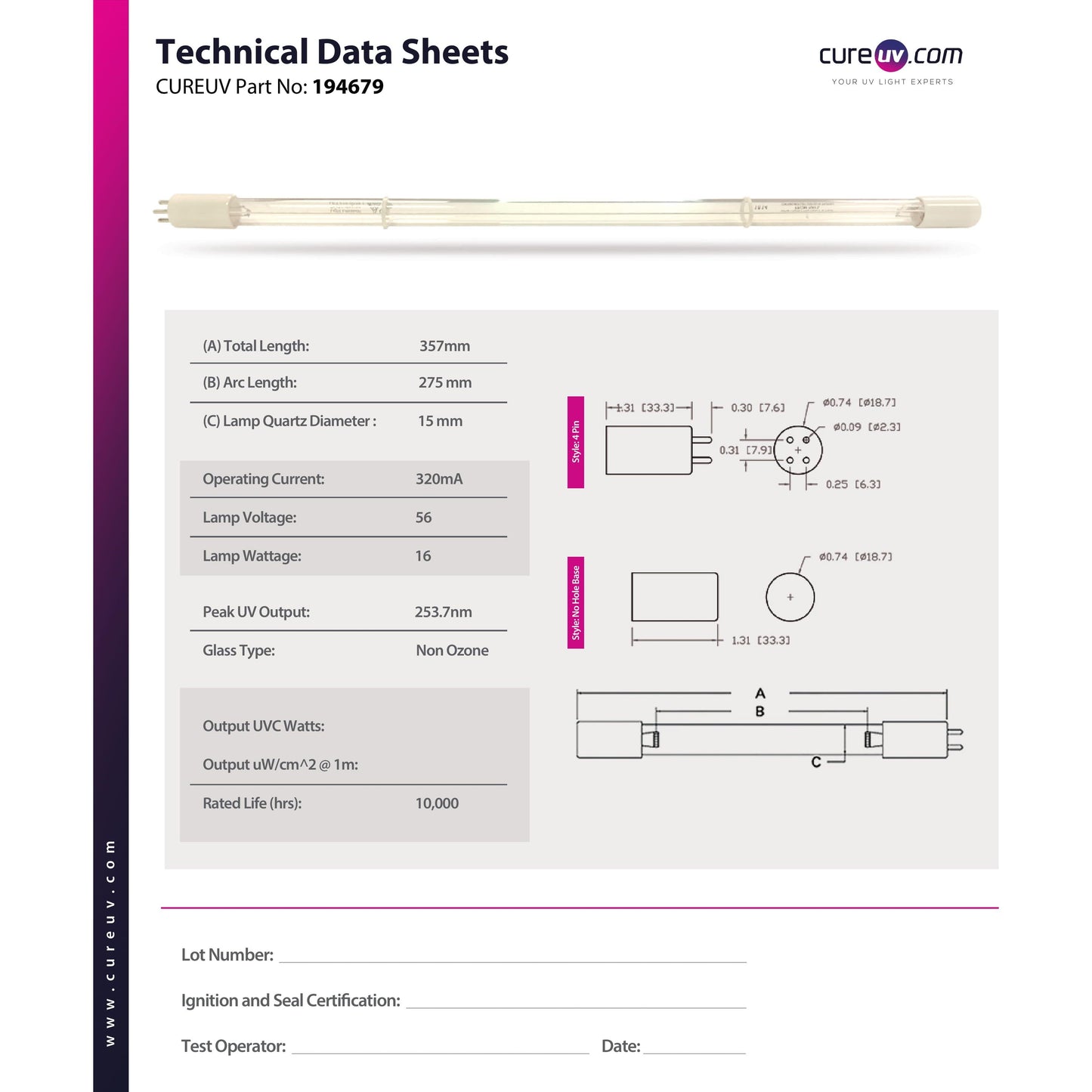

Technical Data Sheets:

Spectral Output of Germicidal UVC Light Bulbs


UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Neptune brand UVC bulbs. All Neptune brand names, trademarks, and logos are property of Neptune.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
