Nordson Part # S7098 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$350.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 42 Inch Arc Length - 45.75 Inch Total Length (end to end)

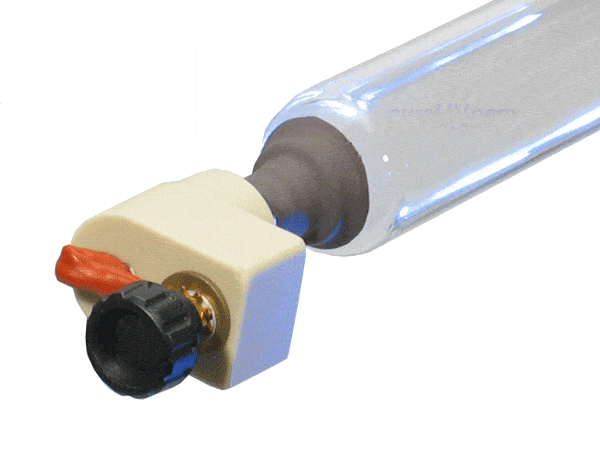

The Nordson Part # S7098 UV Curing Lamp Bulb is a 100% compatible replacement bulb that exceeds OEM standards of UV curing bulb performance. The lamp bulb is completely compatible to the Nordson UV systems to the following part numbers:

  • S7098
  • Heidelberg
  • 1055651
  • PM2848

This replacement bulb works to cure and dry coatings in signs and graphics. The UV printer bulb is manufactured in the USA and has a predictable lifespan. CureUV ensures that you can find UV lamps for printers in different arc length and spectral fills. In heat curing there is a release of volatile organic compounds that is absent in curing using UV rays. This makes UV curing an eco-friendly option. The curing lamp consists of a quartz plate and keeps the lamp away from debris. It works as a filter between the curing system and the lamp. Light curing enables the ink to harden and dry instantly.

Technical Specifications:

  • Output Power: 400 WPI
  • Fill: Mercury
  • Quartz: Standard

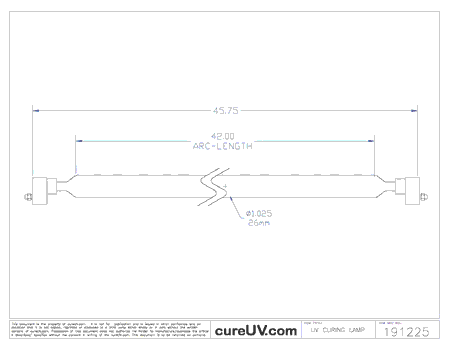

  • Arc Length: 42 Inches
  • Overall Length: 45.75 Inches

UV Spectral Output of a Mercury UV Lamp(PDF)

42In. Arc UV Lamp 400 WPI - Nordson UV System - Pt # S7098(PDF)



Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
