UV Curing Lamp - Nordson Part # PM7250 UV Curing Lamp Bulb

Nordson Part # PM7250 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$350.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 42 Inch Arc Length - 45.6875 Inch Total Length (end to end)

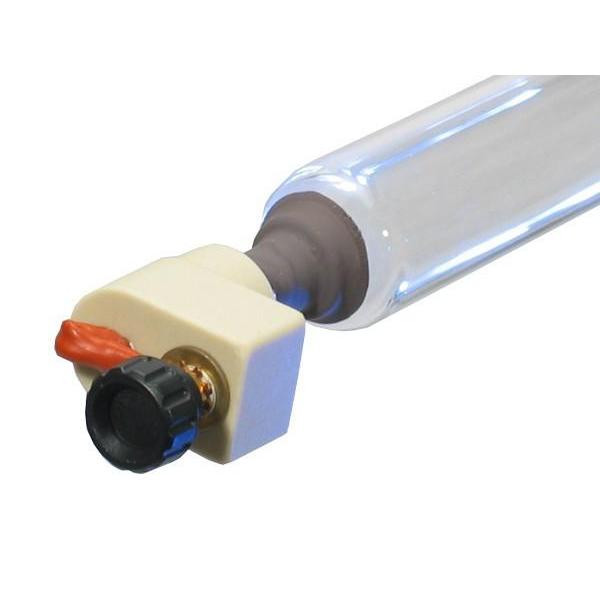

The Nordson Part # PM7250 UV Curing Lamp Bulb is a 100% compatible replacement lamp bulb that is a 42 inch 600 WPI lamp bulb that exceeds OEM standards of UV curing bulb performance. The lamp bulb is completely compatible to the Nordson Komori UV systems. Filled with mercury, the lamp bulb has an overall length of 45.68 inches and a tube diameter of 26mm.

The replacement lamp bulb exceeds OEM standards of UV curing lamp performance and is compatible to the Nordson UV systems with the following part numbers:

  • PM/7250
  • 8542A44C
  • SLI421
  • H42AC5F1
  • UVL-9242

The UV curing lamp bulbs are the components necessary in the drying system. It also does not release volatile organic compounds in the air. The light bulbs generate a specific wavelength that assists in curing coating and inks. The quartz plate in lamp works as a filler between lamp and the system. This plate prevents dirt, grit and contaminants from building up on the lamp.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 42 inches
  • Overall Length: 45.6875 inches
  • Measured Arc Length: 41.5 inches
  • Tube Diameter: 26mm
  • Wattage Per Inch: 600 WPI

Ultraviolet (UV) spectral output of a mercury vapor lamp

Ultraviolet (UV) Spectral Output - Mercury Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgNordson Part # PM7250 UV Curing Lamp Bulb

*All UV lamps listed are compatible brand UV products. We do not sell Nordson brand UV lamps. All Nordson brand names, trademarks and logos are property of Nordson.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
