UV Curing Lamp - Oce Arizona 360 GT 3010111639 UV Curing Lamp Bulb

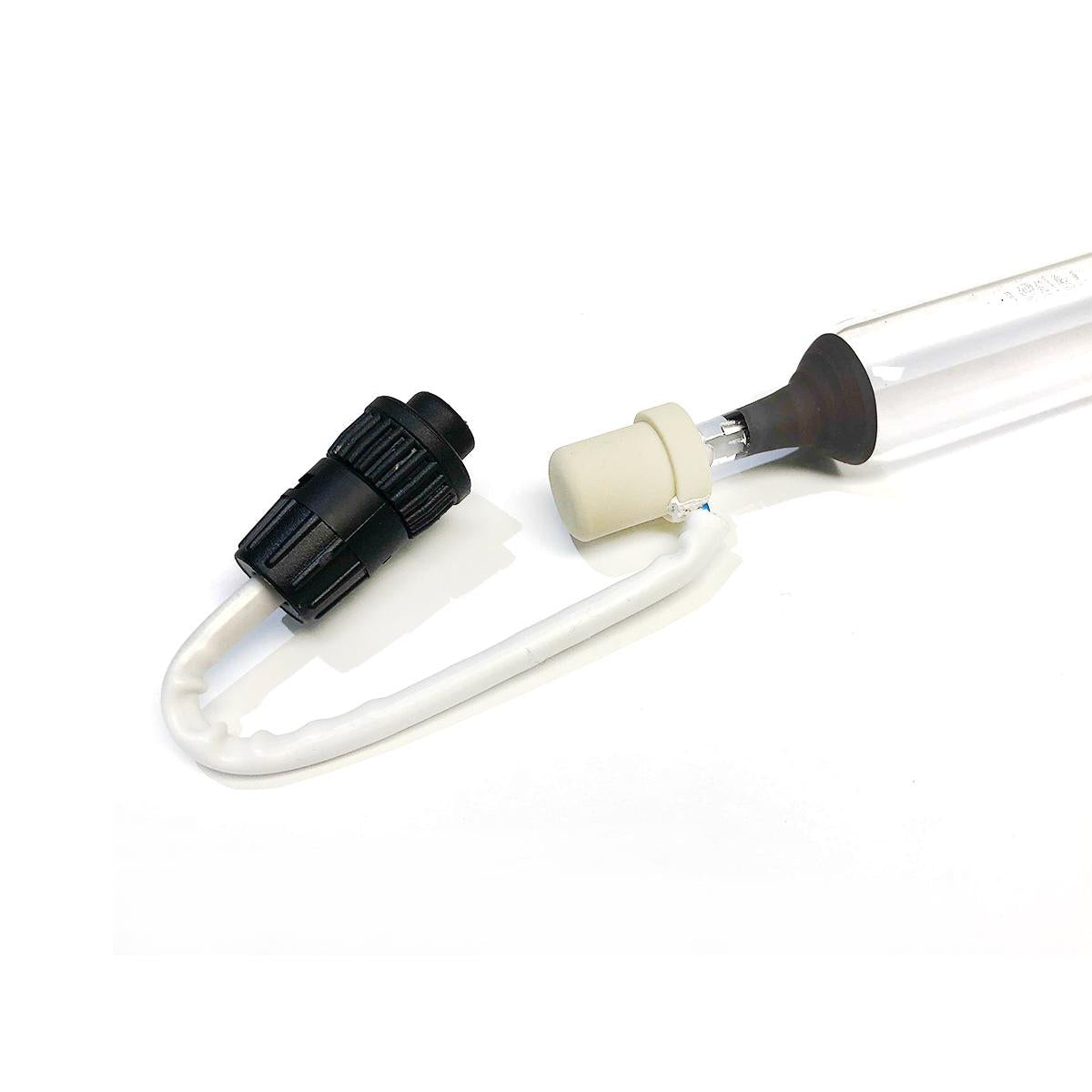

Oce Arizona 360 GT 3010111639 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$199.99

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 4.625 Inch Arc Length - 7.8 Inch Total Length (end to end)

The Oce Arizona 360 GT 3010111639 UV Curing Lamp Bulb is a 100% compatible replacement bulb that is filled with mercury and has an arc length of 4.6". With an overall length of 7.8", this generic curing lamp bulb excels OEM standards of curing bulb performance. The UV lamp bulb is compatible to the Oce Arizona 360 GT UV Flatbed Printer with the following part numbers:

  • Arizona 360GT
  • Arizona 360 GT
  • 360GT
  • 360 GT
  • 3010109531
  • 3010109531A
  • 780119321916
  • 3010111639
  • H05A34F1
  • H05A3-4-F1

System Application

Canon Océ - Arizona 318 GL
Canon Océ -
Arizona 360 GT
Canon Océ -
Arizona 360 XT
Canon Océ -
Arizona 460 GT
Canon Océ -
Arizona 460 XT
Canon Océ -
Arizona 480 GT
Canon Océ -
Arizona 480 XT

Fujifilm -
Acuity Advance HD2565
Fujifilm -
Acuity Advance HD2565 X2
Fujifilm -
Acuity Advance Select HD4006
Fujifilm -
Acuity Advance Select HD4008
Fujifilm -
Acuity Advance Select HD4226
Fujifilm -
Acuity Advance Select HD4228

    We recommended that you replace the UV curing lamp regularly. Studies have shown that as the bulb hour rises, the lamps tend to produce less UV light and more heat. When there is more heat produced, there are greater chances of print media bulge. Excessive heat can also cause damage to the shutters and reflectors in the lamp housing. This leads to a bad output and also high repairing costs. Therefore it is recommended to use a good quality UV lamp like this one from CureUV.

    Manufactured in the USA, the curing lamp bulb is an important component in the print drying system. It helps in instantly drying inks and coatings and is a better option than infra red drying. The UV lamp bulb consists of a quartz plate that acts as a filter between the lamp and the substrate. The quartz plate helps in reradiating the rays at a temperature lower than the lamp.

    Technical Specifications:

    • Fill: Mercury
    • Quartz: Standard
    • Arc Length: 4.625 inches
    • Overall Length: 7.8 inches
    • Tube Diameter: 22.5mm

    UV spectral output of a Mercury Lamp

    UV Spectral Output of a Mercury Lamp (PDF)

    *Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

    *All UV lamps listed are compatible brand UV products. We do not sell Oce brand UV lamps. All Oce brand names, trademarks and logos are property of Oce.

    *Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

    Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
