UV Curing Lamp - OnLine Energy Part # 01-0012-02 UV Curing Lamp Bulb
UV Curing Lamp - OnLine Energy Part # 01-0012-02 UV Curing Lamp Bulb UV Curing Lamp - OnLine Energy Part # 01-0012-02 UV Curing Lamp Bulb UV Curing Lamp - OnLine Energy Part # 01-0012-02 UV Curing Lamp Bulb

OnLine Energy Part # 01-0012-02 UV Curing Lamp Bulb
Free Gift

SKU: UV Bulb Price Match Guarantee
$200.00

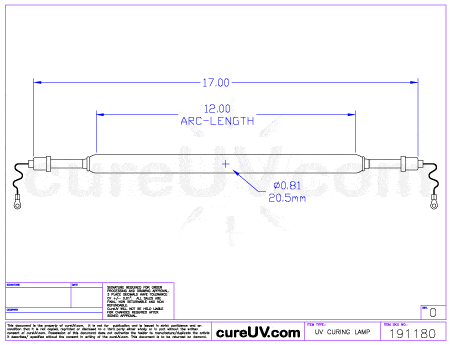

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 12 Inch Arc Length - 17 Inch Total Length (end to end)

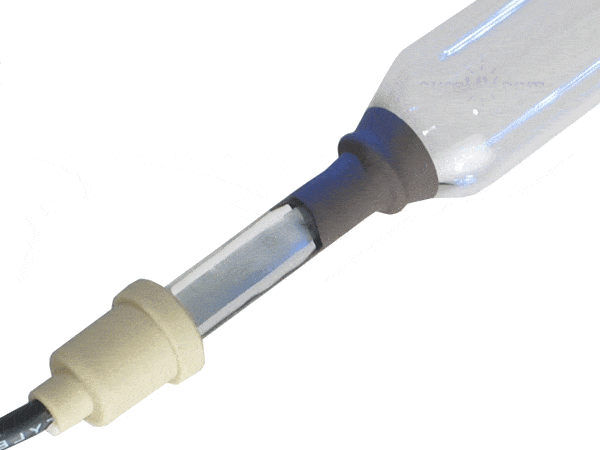

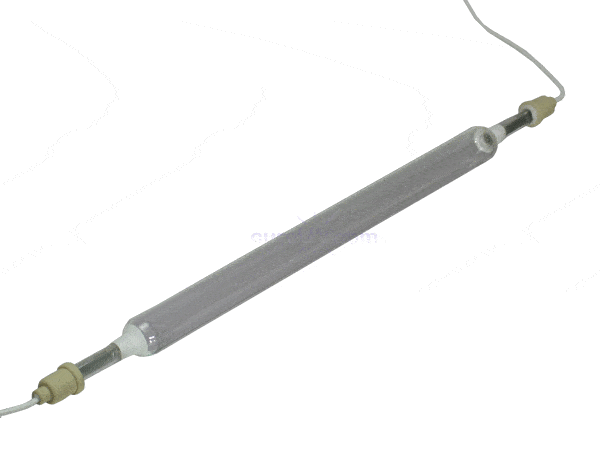

The Online Energy Part # 01-0012-02 UV Curing Lamp Bulb is a 100% compatible UV lamp that has an output power of 400 WPI and an arc length of 12 inches. With an overall length of 17 inches, the UV lamp bulb is completely compatible to the Online Energy UV systems and works well with the following part numbers:

  • 01001202

The high intensity UV rays produced by the UV lamp help in instantly curing or drying inks or coatings in the printer. The usage of light instead of heat enables the ink to harden and dry instantly. Curing inks by using UV rays is fast catching up as an alternative to traditional solvents- based products. In the conventional drying methods, there is always a risk of environment pollution. In the UV curing method, since there is no evaporation there is no risk of pollution. The result is more productivity, higher printing quality and lower production costs.

Technical Specifications:

  • Output Power: 400 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 12 Inches
  • Overall Length: 17.00 Inches

UV Spectral Output of a Mercury UV Lamp

UV Spectral Output of a Mercury UV Lamp (PDF)

Online Energy 12In. 300 WPI Replacement UV Lamp 01-0012-02 (PDF)

Online Energy 12In. 300 WPI Replacement UV Lamp 01-0012-02

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
