OnLine Energy Part # 01-0018-01 UV Curing Lamp Bulb
Free Gift

SKU: UV Bulb Price Match Guarantee
$184.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 18 Inch Arc Length - 23 Inch Total Length (end to end)

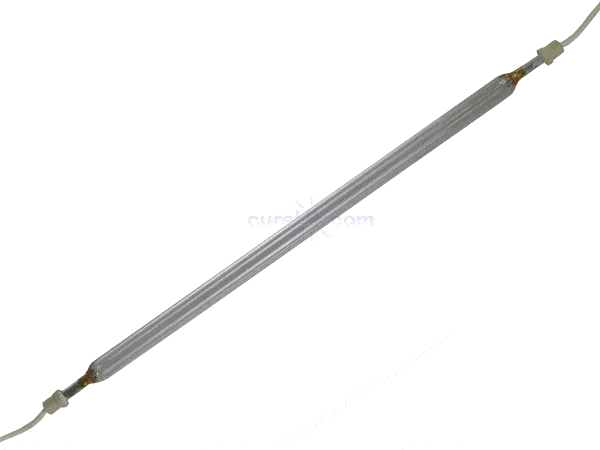

The Online Energy Part # 01-0018-01 UV Curing Lamp Bulb is a mercury filled lamp bulb that has an output power of 400 WPI. The lamp bulb has an arc length of 18 inches and an overall length of 23 inches. The UV replacement lamp exceeds OEM standards of UV curing bulb performance and is completely compatible to the Online Energy UV systems and works well with the following part number:

  • 01001801

The UV curing lamp bulbs are the components necessary in the drying system. It also does not release volatile organic compounds in the air. The light bulbs generate a specific wavelength that assists in curing coating and inks. The quartz plate in lamp works as a filler between lamp and the system. This plate prevents dirt, grit and contaminants from building up on the lamp.

Technical Specifications:

  • Output Power: 400 WPI
  • Fill: Mercury
  • Quartz: Standard

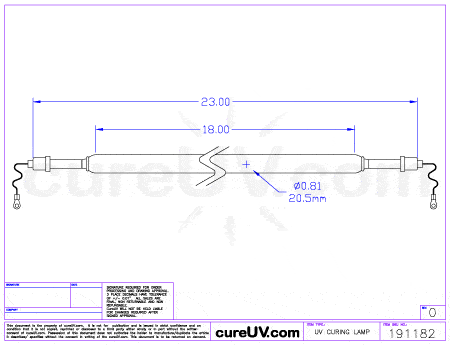

  • Arc Length: 18 Inches
  • Overall Length: 23.00 Inches

UV Spectral Output of a Mercury UV Lamp

UV Spectral Output of a Mercury UV Lamp (PDF)

Online Energy 18In. Replacement UV Lamp 01-0018-01 (PDF)

Online Energy 18In. Replacement UV Lamp 01-0018-01

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
