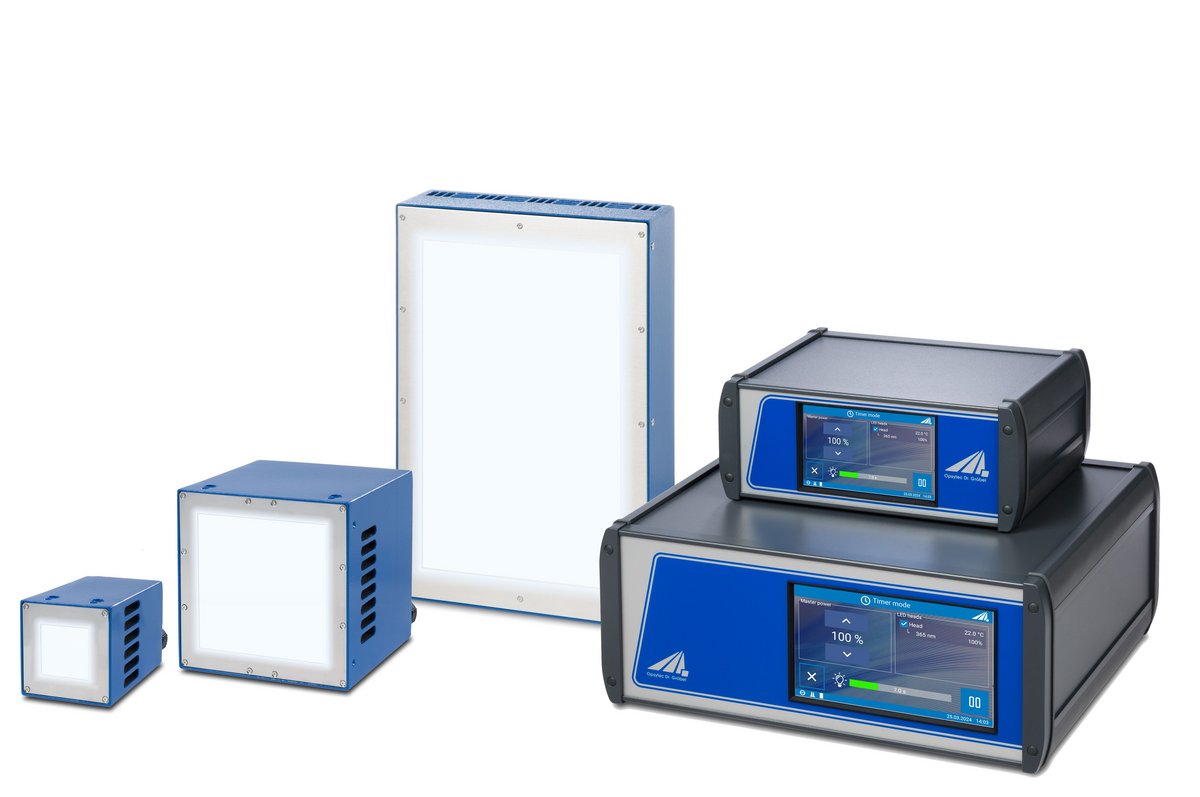

Opsytec LEDControl Touch System – Industrial UV-LED Controller

The LEDControl Touch system offers precision control for UV-LED arrays in demanding industrial and scientific applications. With a touchscreen interface (5″ or 7″), this controller manages 1, 2, or 4 independent UV-LED output channels with adjustable power from ~2% to 100%. It supports Modbus TCP/IP, RS 485, digital and analog I/O, and USB protocol-logging. Compatible with UV-LED heads rated from 50 W to 1000 W, the system integrates seamlessly into automated production environments. Ideal for UV curing, bonding, fluorescence inspection and other applications requiring repeatable and stable UVA irradiation.

Key Features

• Touchscreen interface available in 5 in and 7 in sizes
• Controls 1, 2, or 4 UV‑LED channels independently
• Adjustable output from ~2% to 100%
• Supports Modbus TCP/IP, RS485, digital I/O, and analog I/O
• Compatible with Opsytec LED modules from 50 W to 1000 W
• Log and save irradiation protocols via USB
• Ideal for curing, bonding, inspection, and fluorescence applications

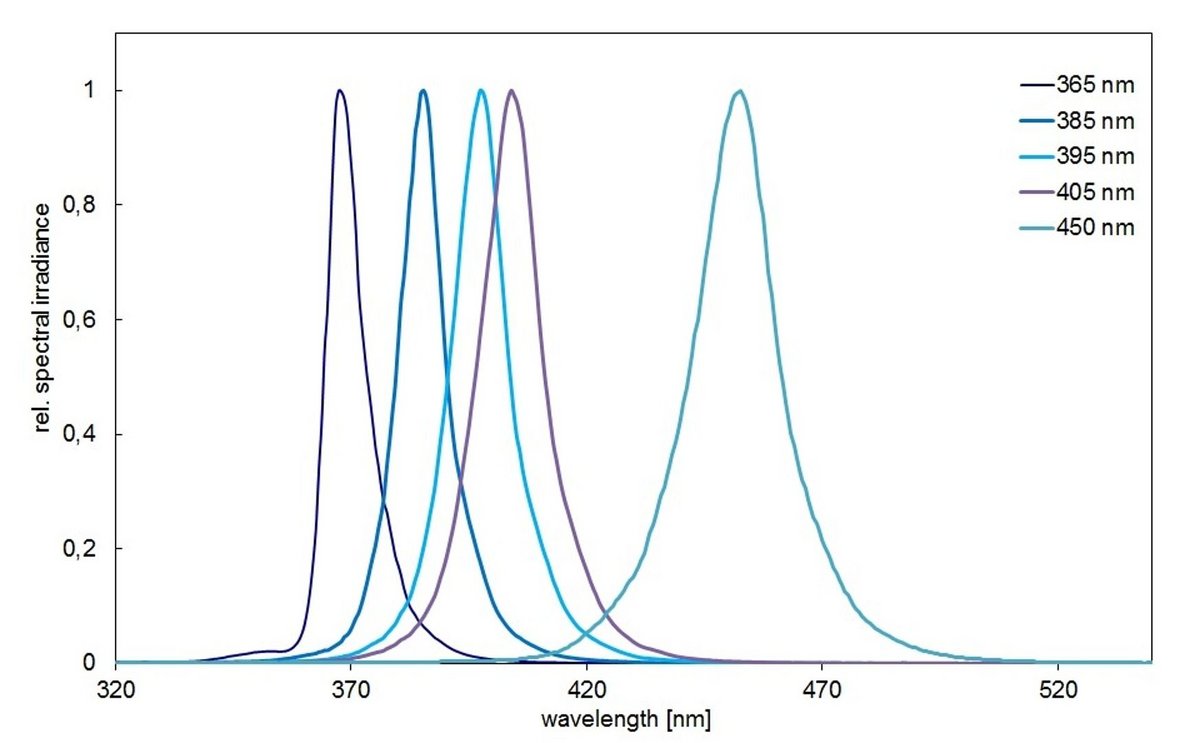

Compatible UV-LED Lamps

The LEDControl Touch works with Opsytec UV‑LED heads available in:

• 365 nm
• 385 nm
• 395 nm
• 405 nm
• 450 nm

Available emission areas:

• 30 × 30 mm (1.18 × 1.18 in)
• 100 × 100 mm (3.94 × 3.94 in)
• 200 × 100 mm (7.87 × 3.94 in)

Applications

• UV curing of adhesives, inks, and coatings
• Bonding processes requiring controlled UV exposure
• Surface inspection and leak detection using fluorescence
• Semiconductor encapsulation
• Scientific fluorescence spectroscopy

Why Choose LEDControl Touch?

• Highly precise control of UV power output
• Industrial‑grade connectivity for PLC systems
• Instant on/off UV‑LED operation with no warm‑up time
• Stable, repeatable irradiation for quality‑critical processes

What You Need to Operate the System

The LEDControl Touch requires at least one compatible Opsytec UV‑LED head. It does not include the LED lamp modules; those must be selected based on wavelength, emission area, and power requirements.

Package Includes

• LEDControl Touch controller (5 in or 7 in version)
• Power connection
• Communication ports (as applicable)
• User documentation

Technical Specifications

TDS
