Germicidal UV Bulbs - Pentek 163503 Replacement UVC Light Bulb
Germicidal UV Bulbs - Pentek 163503 Replacement UVC Light Bulb Germicidal UV Bulbs - Pentek 163503 Replacement UVC Light Bulb Germicidal UV Bulbs - Pentek 163503 Replacement UVC Light Bulb Germicidal UV Bulbs - Pentek 163503 Replacement UVC Light Bulb Germicidal UV Bulbs - Pentek 163503 Replacement UVC Light Bulb

Pentek 163503 Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$38.00

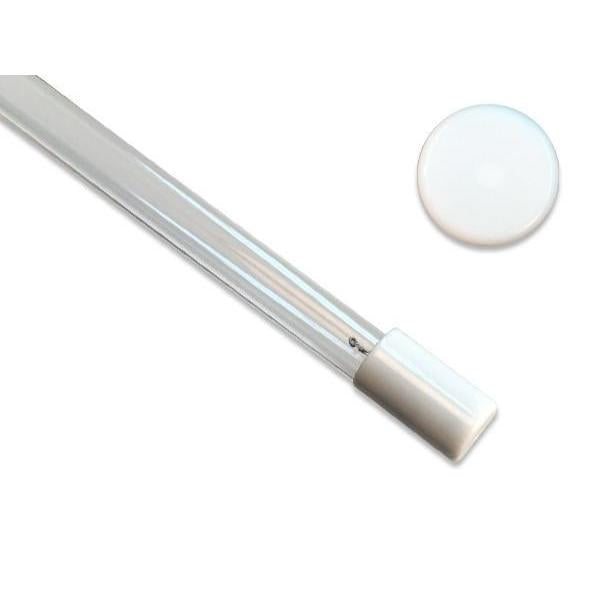

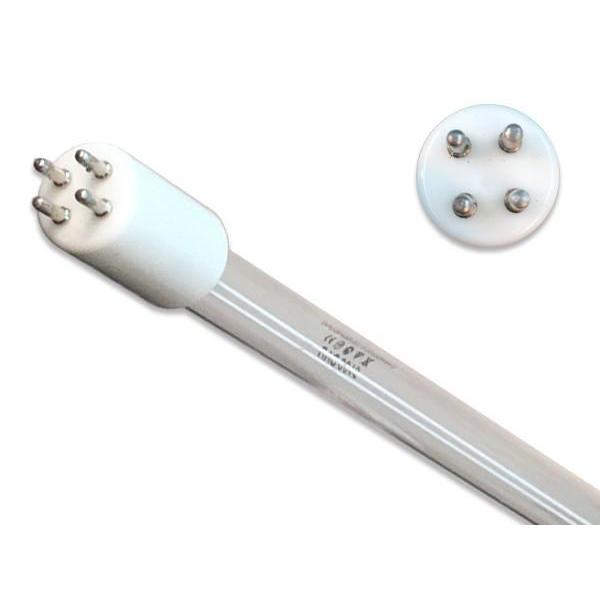

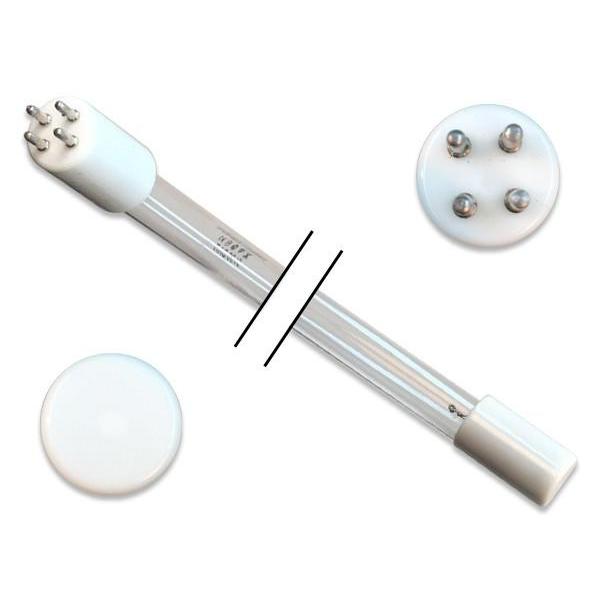

4 Pin on a Single End - 10 Watt Germicidal Water Treatment Bulb

Our Pentek 163503 Replacement UVC Light Bulb is a generic light bulb that is a 10 Watt germicidal water treatment bulb that has four pin on a single end. The UVC bulb has a total length of 8.35" and an arc length of 5.51". The lamp has a voltage of 30V and a peak output of 253.7nm. This short UV wavelength wrecks the genetics of microorganisms in water rendering them incapable of reproduction. This replacement light bulb works for UV purification system that requires UV intensity. This UVC light bulb is best suited for the following germicidal system models and their part numbers:

Pentek Part Number:

  • 163503
  • 10-212

Pentek System Model:

  • UVS-110
  • UVS-110-1
  • UVS-110-2

Our wellbeing is directly related to the quality of water we use. The germicidal UV lamp is proven to destroy bacteria, protozoa, virus, molds and other harmful pathogens present in water. You get a 12 month worry free water sanitizing operation after which the light may still be visible but the germ destroying ability of the Pentek 163503 Replacement UVC Light Bulb may have reduced.

Technical Specifications:

  • Total Length: 8.35 inches (212mm)
  • Arc Length: 5.51 inches (140mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Voltage: 30V
  • Lamp Wattage: 10 Watts
  • Output UVC Watts: 2.7 Watts
  • Output uW/cm^2 @ 1m: 26
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 192207 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

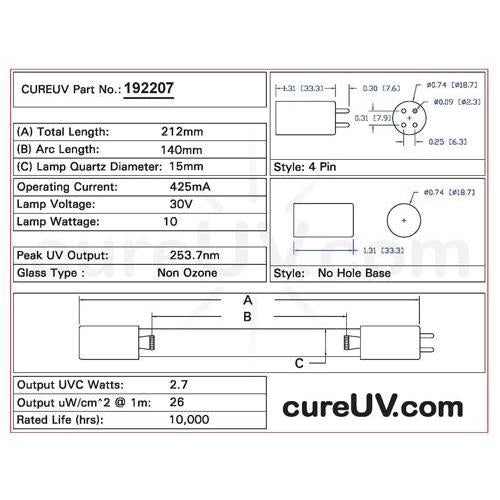

Drawing of Pentek 163503 UVC Bulb - item # 192207

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Pentek brand UVC bulbs. All Pentek brand names, trademarks, and logos are property of Pentek.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
