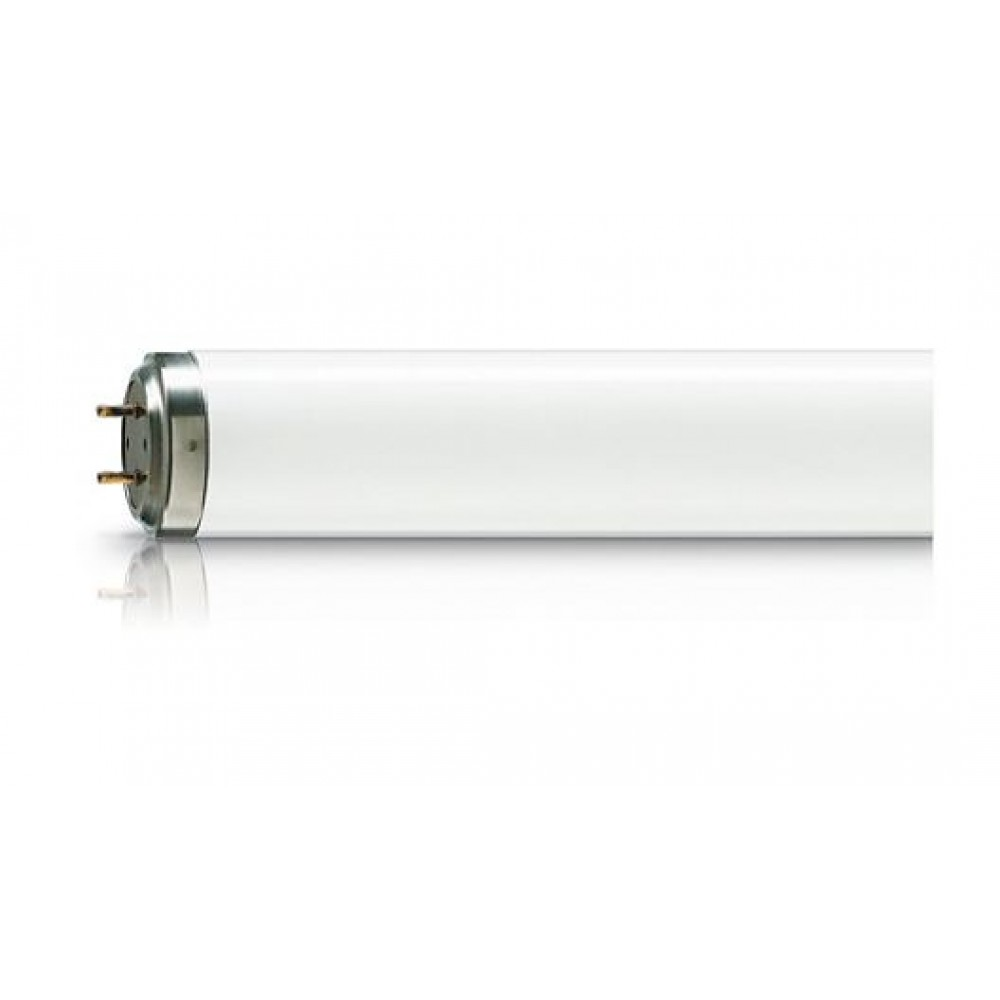

CureUV Brand UVC Bulb for Philips 261693 TL 60W/10-R SLV/25

Guaranteed Replacement UVA Unfiltered Blacklight for Philips 261693

Our CureUV brand Replacement UVC Light Bulb for Philips 261693 is a TL 60-Watt /10-R SLV/25 UV bulb that features a G13 base. Flexo print TL lamps emit almost all of their light (99.9%) in the useful UVA and visible blue wavebands – between 350 and 400 nm – and have peak intensity at 370 nm. This makes them ideal for flexo printing equipment and photopolymerization processes. In addition, the 'R' lamps in the family have an internal 200-degree reflector to optimize the lamp's overall efficiency further.

Applications:

• Flexo print reprographic equipment
• Diazo copying machines

Features and benefits:

• Best match with photo sensitizers
• Emit radiation in the range 380-480 nm with a maximum at 370 nm
• Highest output on irradiated area
• Internal reflector


This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

Specifications:

• Base: G13
• Bulb Shape: T12
• Lamp Current (Nom): 0.7A
• Total Length: 48"
• Rated Life Hours: 2000
• Wattage: 62W
• Series: Flexo Print
• Model: TL 60W/10-R

Warning: A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner. Lamp contains mercury.

*All germicidal UV lamps listed are compatible brand UV products. We do not sell Philips brand UV sanitizer lamps. All Philips brand names, trademarks and logos are property of Philips.

Note: CureUV brand products are 100% compatible with the original equipment.
