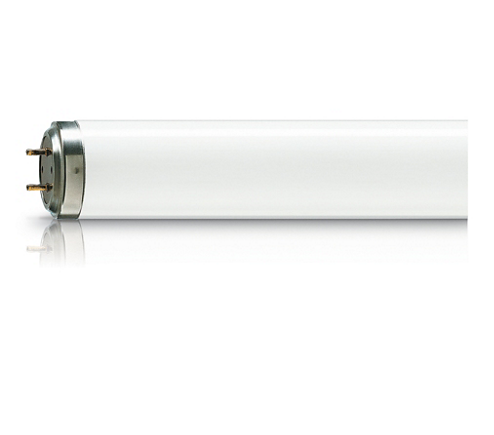

Philips TL 20W/01 RS UVB Narrowband Replacement Bulb

UV-B Narrowband TL Replacement Bulb - TL 20W/01 RS SLV/25 - For Phototherapy Systems

The Philips TL 20W/01 RS UVB Narrowband Replacement Bulb is a professional-grade ultraviolet lamp designed for applications requiring precise UVB narrowband radiation centered at 311 nm. With a controlled emission range between 305–315 nm, this lamp delivers highly targeted UV output commonly used in phototherapy systems, agricultural applications, and specialized curing processes. Its reliable output and consistent spectral performance make it a trusted replacement lamp for professional UVB equipment.

Engineered in a T12 fluorescent format, this 20-watt UVB narrowband lamp is available with two base configurations: G13 Medium Bi-Pin (2-Pin) or RDC (R17d Recessed Double Contact). Designed for compatible 2-foot UVB narrowband phototherapy equipment, the lamp provides consistent UV performance with predictable depreciation characteristics. Please select the correct base type for your equipment before ordering.

Features & Benefits

• Narrowband UVB emission (311 nm peak) optimized for targeted UV applications

• Controlled spectral output (305–315 nm) for precise irradiation performance

• Reliable 20 W fluorescent design for consistent UV intensity

• Two Base Options Available: Choose between G13 Medium Bi-Pin (2-Pin) and RDC (R17d Recessed Double Contact) to match your equipment's lamp holder

• Stable UV output with predictable depreciation for repeatable exposure conditions

• Highly reliable Philips manufacturing quality for professional environments

• Suitable for phototherapy, agriculture, and UV curing systems

Technical Specifications

• Lamp Type: UVB Narrowband Fluorescent Replacement Lamp

• Model: TL 20W/01 RS SLV/25

• Manufacturer: Philips

• Power Consumption: 20 W (nominal 19.3 W)

• Operating Voltage: 59 V (nominal)

• Lamp Current: 0.37 A
• Wavelength Range: 305–315 nm

• Peak Wavelength: 311 nm (UVB Narrowband)

• UV-B Radiation Output (5 hr IEC): 3.23 W

• UV-B Radiation Output (100 hr IEC): 3.08 W
• UV Depreciation at 500 Hours: 10 %

• UV Depreciation at 1000 Hours: 15 %

• Useful Lamp Life: Approx. 2,000 hours
• Bulb Shape: T12 (T38)

• Bulb Diameter: 38 mm (1.5 in.)

• Lamp Length: 23.75 in. (2-foot format)

• Available Base Types: G13 Medium Bi-Pin (2-Pin) or RDC (R17d Recessed Double Contact)
• Color Designation: Ultra Violet B

• Chromaticity Coordinate X: 208

• Chromaticity Coordinate Y: 192
• Mercury Content: 5.5 mg (nominal)

Compatibility

Important: This product is available with two different base configurations. The G13 Medium Bi-Pin (2-Pin) and RDC (R17d Recessed Double Contact) bases are not interchangeable. Please verify your equipment's required base type before selecting a replacement lamp.

This lamp fits most 2-foot UVB narrowband hand and foot devices, including:

• Hand/Foot II™ units from National Biological Corporation

• M Series units from Daavlin

• Versa-Lite™ systems from UV-Biotek

• Mobile-Lite™ systems

It can also be used for UVB narrowband conversions of equipment currently using FS20T12 broadband UVB lamps.

Note: This lamp does not fit SolRx systems, which typically require the higher-output PL-L36W/01 lamp.

Safety Information

These lamps emit ultraviolet radiation and must be used only in equipment designed for UV exposure.

• Classified under IEC 62471 Photobiological Safety – Risk Group 3

• UV radiation is emitted during operation

• If a lamp breaks, ventilate the room for at least 30 minutes, collect fragments with gloves, seal in a plastic bag, and dispose of through appropriate recycling facilities

• Do not use a vacuum cleaner to collect lamp fragments

Product Data Sheet:

Still not sure if this is what you need? We understand that figuring our replacements parts can be tricky so if you do have any questions, give us a call at 1(561)243-8442 or sales@cureuv.com.
