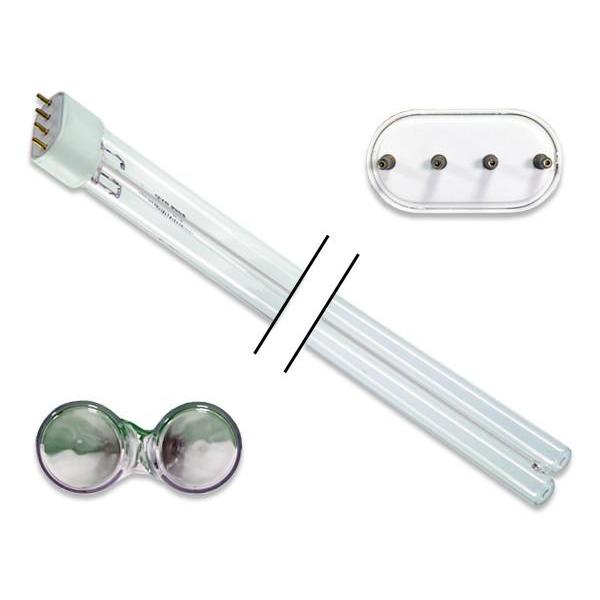

Philips TUV PL-L 55W/4P Compatible Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$37.00

4 Pin 2G11 on a Single End - 55 Watt Germicidal Air, Surface & Water Treatment Bulb

The Philips TUV PL-L 55W/4P Compatible Replacement UVC Light Bulb is a guaranteed replacement UV bulb that has wattage of 55 Watts and a lamp length of 21.06". The germicidal UV bulb is made using ceramic as its base material in a non ozone glass type. It has single pin on both ends and has a rated life of 10,000 hours. The UVC light bulb is completely compatible with germicidal OEM Air & Water sterilization filters, UV sanitizers and air/water purifiers. We recommend that you replace the light bulb annually for better functioning of your system. The UVC light bulb has 4 pin 2G11 on a single end and is an effective treatment against bacteria, molds, protozoa and virus present in water. The light bulb emits a short wavelength of 253.7 nm that reacts with the genetics of the microorganisms and renders them incapable of reproduction.

Common Applications:

  • Well water
  • Drinking water
  • Surface water
  • Municipal water
  • Wastewater
  • Food service/processing
  • Beverage service/processing
  • Hospitals
  • Aquaculture
  • Pools, Spas and Water Features
  • Chemicals
  • Oil, Gas and Power
  • Pulp, paper and wood
  • Electronics
  • Cosmetics
  • Pharmaceuticals
  • Hotels
  • Water bottlers
  • Laboratories
  • Marine and more

Technical Specifications:

  • Total Length: 21.06 inches (535mm)
  • Arc Length: 19.29 inches (490mm)
  • Lamp Quartz Diameter: 17mm Twin Tube
  • Operating Current: 540mA
  • Lamp Voltage: 103V
  • Lamp Wattage: 55 Watts
  • Output UVC Watts: 17 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone

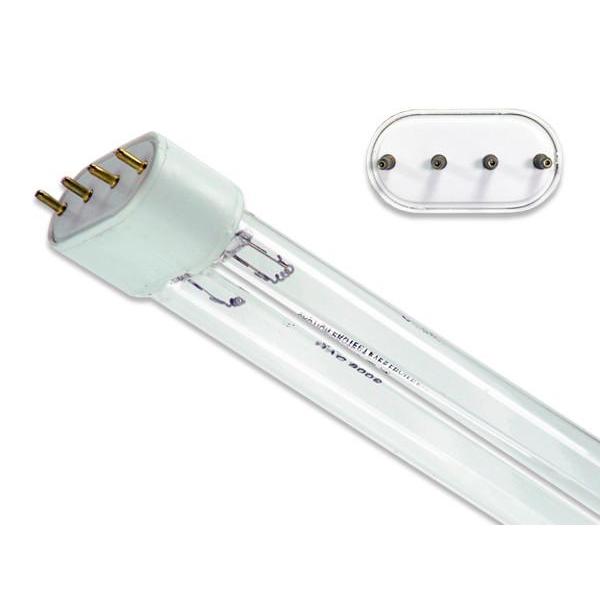

  • Base Style: 4 pin 2G11 on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Offices
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 191701 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

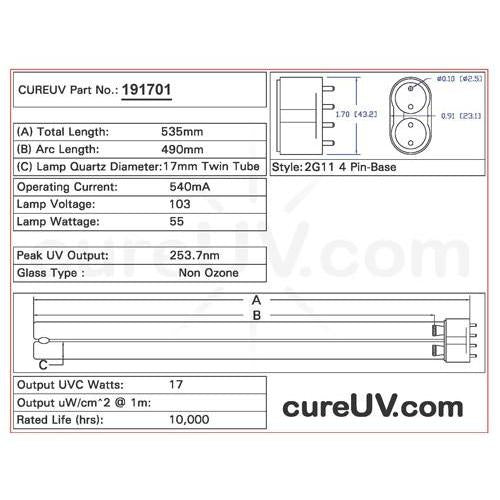

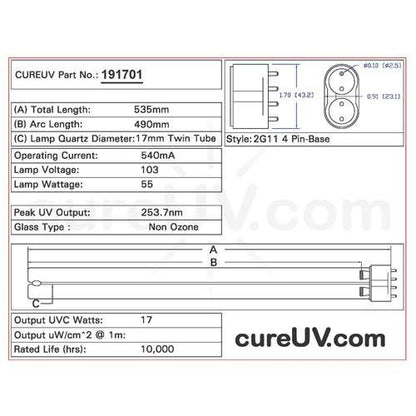

Drawing of Philips TUV PL-L 55W/4P UVC Bulb - item # 191701

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
