UV Curing Lamp - Polytype Printer Part # 209330 UV Curing Lamp Bulb
UV Curing Lamp - Polytype Printer Part # 209330 UV Curing Lamp Bulb UV Curing Lamp - Polytype Printer Part # 209330 UV Curing Lamp Bulb

Polytype Printer Part # 209330 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$168.99 $188.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 10 Inch Arc Length

The Polytype Printer Part # 209330 UV Curing Lamp Bulb is a 100% compatible UV replacement lamp that exceeds OEM standards of bulb performance. The UV lamp bulb is 100% compatible to the Polytype printer UV system and works well with the following part number:

  • 209330

The 10 inch lamp bulb has a tube diameter of 20mm. The lamp works well to dry and cure inks in signs and graphics. The replacement lamp consists of a quartz plate that prevents debris from falling on the lamp and also works as filler between the curing system and the lamp. The replacement lamp is extensively used in the printing industry to cure inks and coatings and the lamp resists smudges and is environmental friendly as there is no process of solvent evaporation as conventional drying methods. The result is greater printing quality as well as productivity.

Technical Specifications:

  • Output Power: 300 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 10 Inches
  • Overall Length: 13.75 Inches

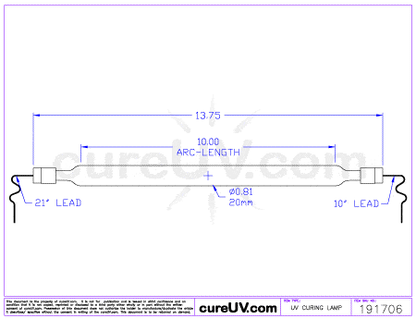

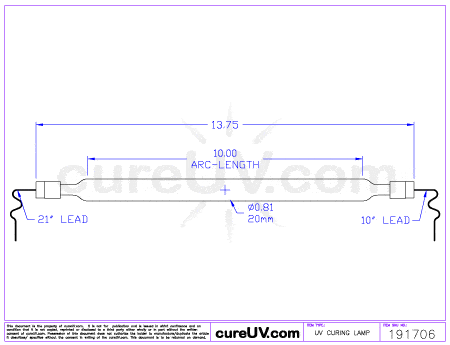

Polytype Printer UV Lamp - OEM Part Number 209330 drawing

Polytype 10 inch UV lamp (300 WPI) - OEM part number 209330 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
