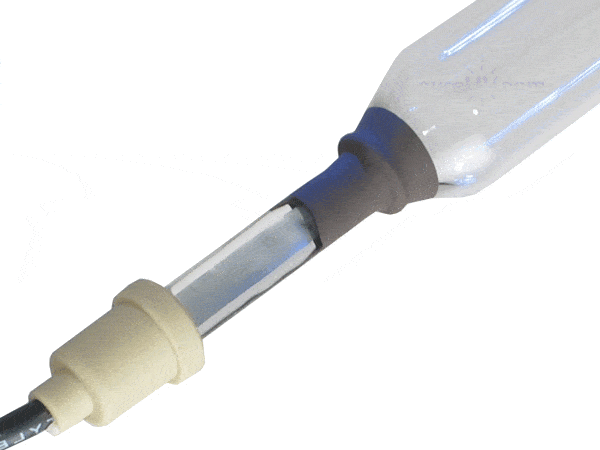

Prime UV Part # 16-1-18-22-6-0 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 18 Inch Arc Length

The Prime UV Part # 16-1-18-22-6-0 UV Curing Lamp Bulb is a 100% compatible replacement lamp bulb that has an arc length of 18 inches and a total length of 23.13 inches. The lamp bulb is compatible to the following part numbers:

• H18A 6-F2
• 161182260

The UV curing lamp bulbs are the components necessary in the drying system. It also does not release volatile organic compounds in the air. The light bulbs generate a specific wavelength that assists in curing coating and inks. The quartz plate in lamp works as a filler between lamp and the system. This plate prevents dirt, grit and contaminants from building up on the lamp.

CureUV is your one-stop-shop for your UV replacement lamps, quartz plate, dichroic reflectors, quartz hot mirrors and more that is necessary for your inkjet printers. These systems are important for the digital printing industry in areas such as graphics, signs and display graphics, apparel, textile, labeling, folding carton, screen printing and more.

Technical Specifications:

• Arc Length: 18 Inches
• Overall Length: 23.13 Inches
• Watts Per Inch: 600 WPI
• Tube Length: 22mm

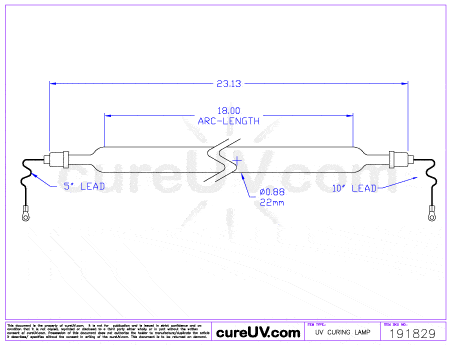

Prime UV 18 inch lamp (600 WPI) - OEM part number 161182260 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
