Pura 36002016 Replacement UVC Light Bulb

4 Pin on a Single End - 10 Watt Germicidal Water Treatment Bulb

The Pura 36002016 Replacement UVC Light Bulb is a four pin on a single end light bulb that is compatible for use with the following germicidal UV-C models:

• 1 GPM
• UV10
• UV100

The UVC light technology helps in killing and sterilizing 99.9% microorganisms present in water and is an effective treatment against bacteria, molds, protozoa and virus. It provides 12 months worry-free operation and must be replaced annually for better performance of the system.

Ultraviolet light filters are highly advanced method of destroying pathogens such as protozoa, virus, bacteria, cysts and others. These specialized UV lamps and bulbs from CureUV produces high quantity of damaging ultraviolet light that destroys these organisms without altering the composition, pH or taste of water. Unlike chemical methods of purification, the UV light purification is proven safe for human consumption. Our lamps are tested and certified by our expert quality assurance teams that maintain your safety as their primary concern.

Common Applications:

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Technical Specifications:

• Total Length: 8.35 inches (212mm)
• Arc Length: 5.51 inches (140mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 425mA
• Lamp Voltage: 30V
• Lamp Wattage: 10 Watts
• Output UVC Watts: 2.7 Watts
• Output uW/cm^2 @ 1m: 26
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 4 pin on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

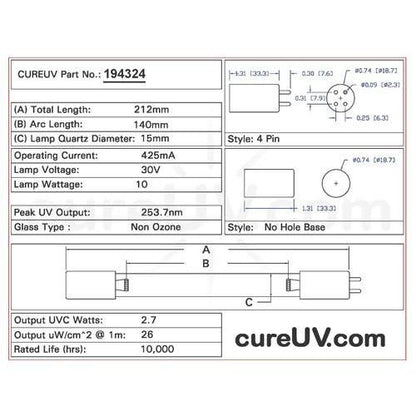

Drawing of Replacement UVC Bulb Item # 194324 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Pura brand UVC bulbs. All Pura brand names, trademarks, and logos are property of Pura.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
