Round Air Cleaning LED Panel
Round Air Cleaning LED Panel
SKU:510105
Couldn't load pickup availability

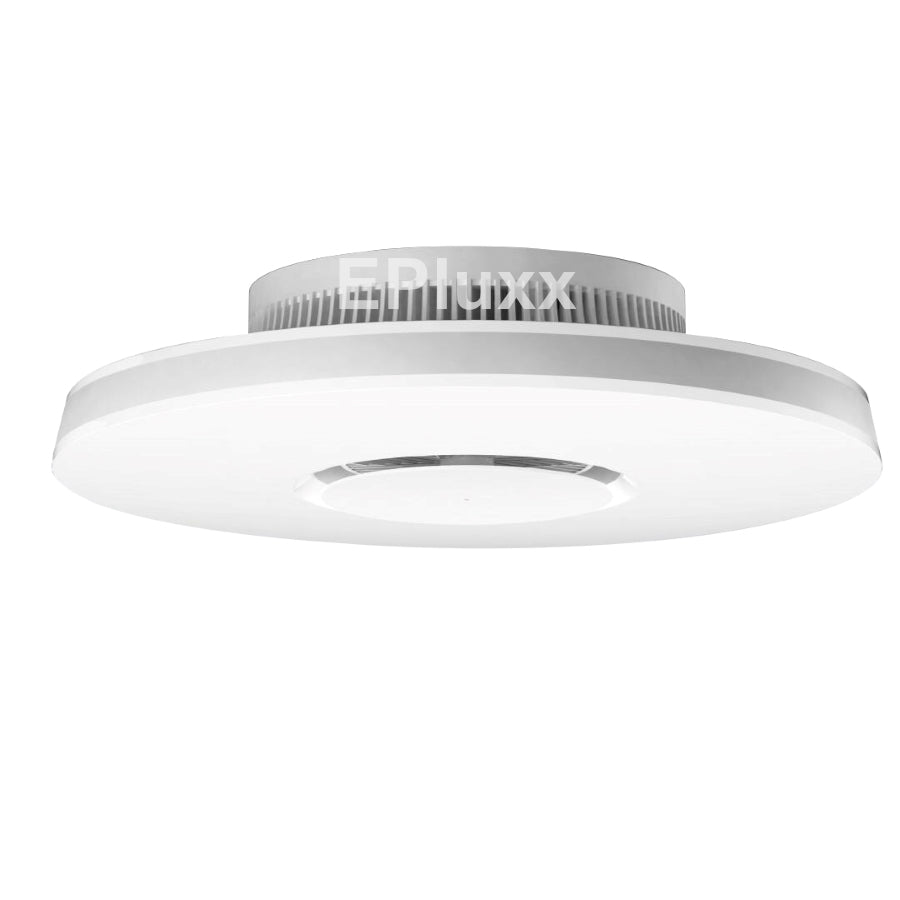

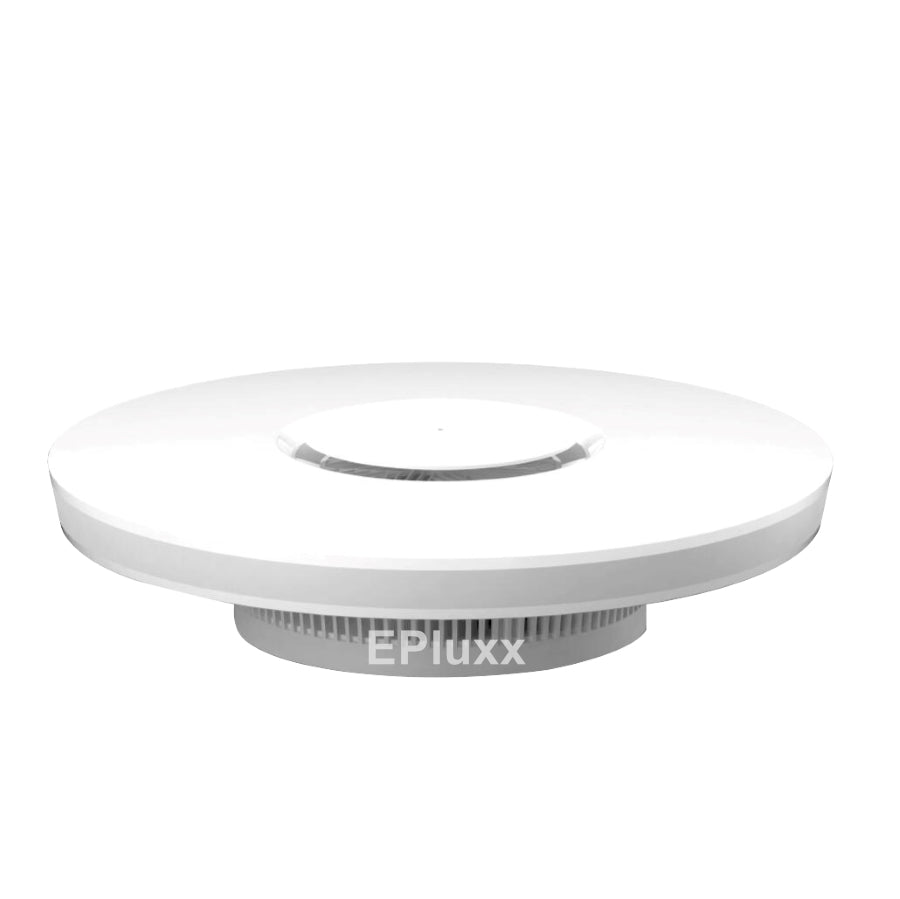

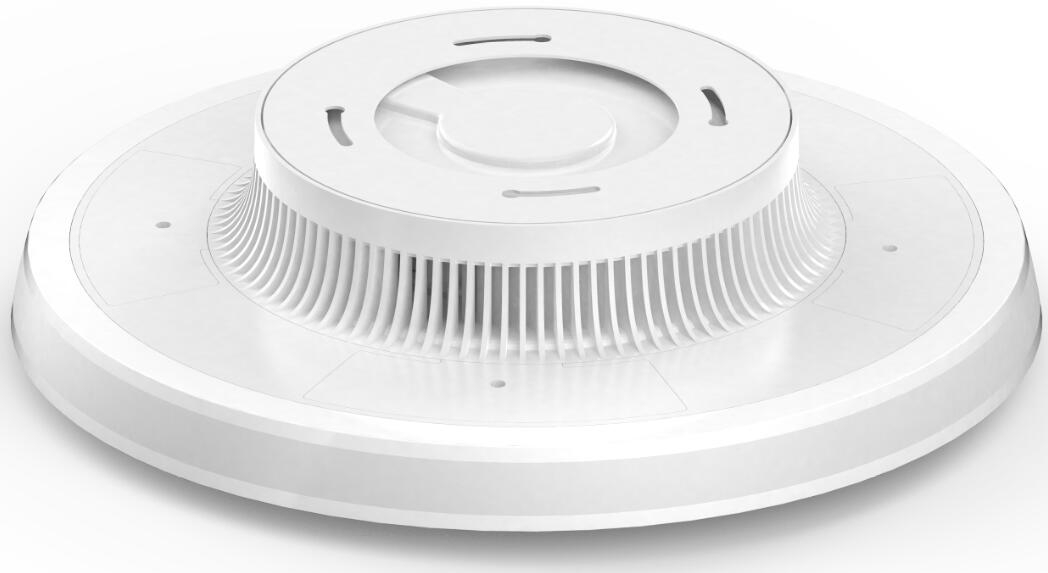

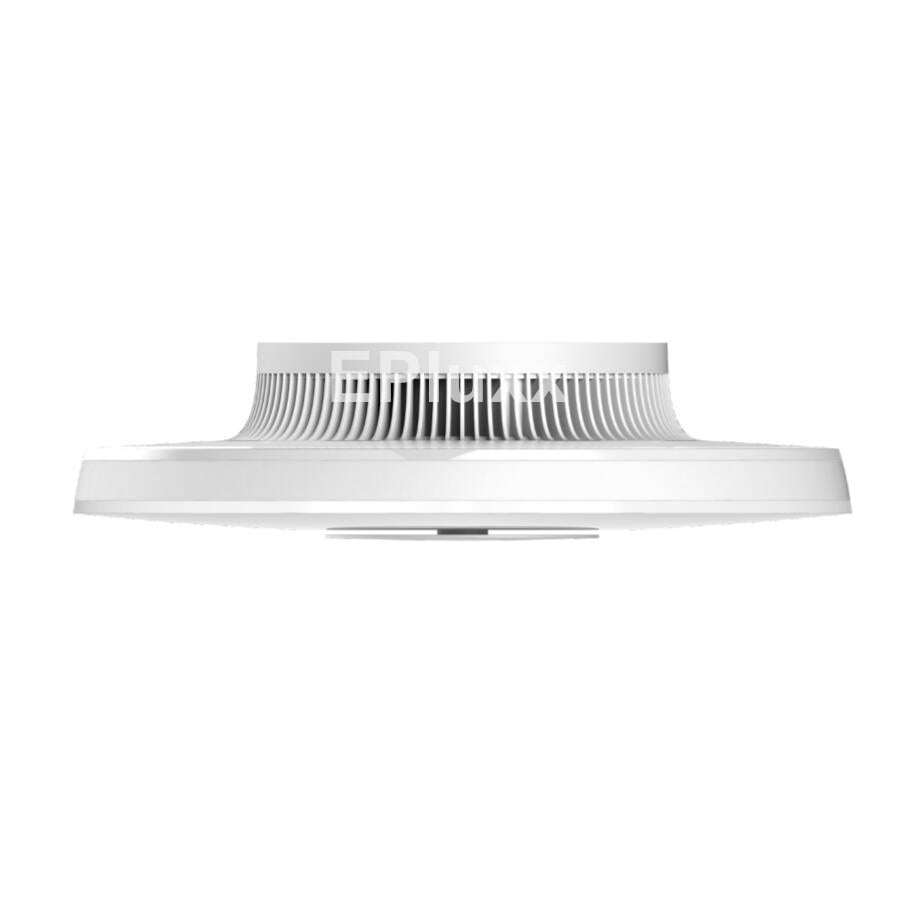

Round Cleaning Disinfection LED Panel – 68W Air Purification & LED Lighting
Designed for residential and indoor environments, the unit provides 360-degree air purification while offering both adjustable main lighting and a soft warm night light. Its ceiling surface-mount design saves floor and wall space and provides a clean, modern appearance.
Key Features
- Integrated air purification and lighting: Combines air purification, air circulation, disinfection functions, main LED lighting, and a warm night light in one ceiling-mounted unit.

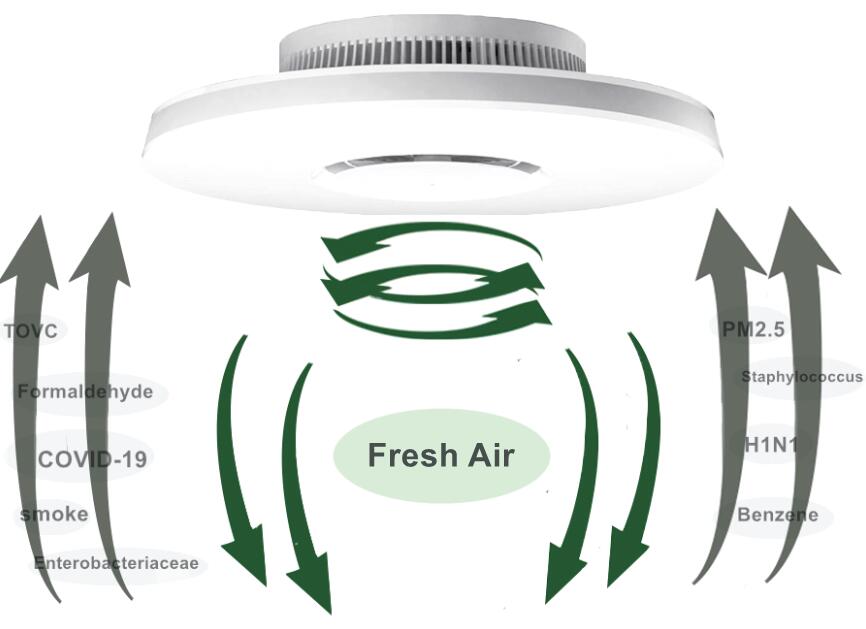

- 360-degree air purification: Designed to circulate and purify indoor air throughout the surrounding space.
- Multi-stage purification system: Uses titanium dioxide, nano silver, an H13 HEPA filter, violet light, and a centrifugal fan.
- H13 HEPA filtration: The replaceable H13 filter is designed to capture airborne particles and aerosols.
- Adjustable main LED lighting: The 36W main LED module provides stepless brightness and color-temperature adjustment.
- Three selectable color temperatures: 2700K, 4000K, and 6500K.
- Warm night light: An independently controlled 8W warm LED module provides soft backlighting for nighttime use.
- Three-speed air circulation: The centrifugal fan provides 20%, 40%, and 60% operating modes.
- Compact ceiling installation: Surface mounting keeps the unit off the floor and minimizes the space required for installation.
- White frame: The simple, modern design integrates with residential and indoor lighting environments.
How the Air Purification System Works
The system combines several air-treatment technologies within a single unit. Air is drawn through the system by the centrifugal fan and passes through components incorporating titanium dioxide and nano silver, together with the replaceable H13 filter and violet-light photocatalytic system.
The titanium dioxide component works as a photocatalyst when activated by violet light. This photocatalytic process is designed to contribute to the breakdown of certain organic contaminants while the filter captures airborne particles. The centrifugal fan continuously moves air through the purification system to promote indoor air circulation.
Three Air Purification Technologies
| Purification System | Technology | Function |
|---|---|---|
| Titanium Dioxide + Nano Silver | Titanium dioxide and nano silver coating | Provides a treated surface designed to contribute to the reduction of microorganisms. |
| H13 Filter + Titanium Dioxide + Nano Silver + Centrifugal Fan | Replaceable H13 HEPA filter combined with treated filter media and forced-air circulation | Filters airborne particles and aerosols while the fan promotes continuous air movement through the purification system. |
| Violet Light + Titanium Dioxide + Centrifugal Fan | Violet light photocatalytic system | Uses violet light to activate the titanium dioxide photocatalyst while the centrifugal fan circulates air. |
Air Purification Performance
According to the test-report data, the system has been tested for removal of several microorganisms and contaminants. Reported test results include:
| Test Parameter | Reported Removal Rate |
|---|---|
| SARS / Coronavirus | >99.99% |
| H1N1 | >99.99% |
| Escherichia coli | >99.99% |
| Staphylococcus aureus | >99.92% |
| Pseudomonas aeruginosa | >99.99% |
| Formaldehyde | >80% |
Lighting and Air Circulation Modules
| Module | Rated Power | Output Power / Operation | Control |
|---|---|---|---|
| Main LED Lighting | 36W | 1.8–36W | Stepless brightness and color-temperature adjustment |
| Small Night Light | 8W | 0.5–8W | Warm light, stepless dimming, gradual on/off |
| Violet Light | 6W | 6W | ON/OFF |
| Centrifugal Fan | 24W | 3–12W | 20%, 40%, and 60% segmented control |
Fan Operating Modes
| Mode | Fan Level | Intended Operation |
|---|---|---|
| Sleep Mode | 20% | Low-speed airflow for nighttime operation |
| Moderate Mode | 40% | Increased airflow for daytime air circulation and purification |
| Storm Mode | 60% | Higher-speed air circulation when increased airflow is desired |
Technical Specifications
| Specification | Details |
|---|---|
| Total Power | 68W |
| Luminous Flux | 3,600 lm |
| Dimensions | 17.95 in. diameter × 4.57 in. height (456 × 116 mm) |
| Main LED Color Temperature | 2700K / 4000K / 6500K |
| Maximum Purification Capacity | 5,297 ft³/h (150 m³/h) |
| Filter | Replaceable |
| Filter Level | H13 HEPA |
| UGR | <22 |
| Power Factor | >0.9 |
| CRI | >80 Ra |
| Frame Color | White |
| Input Voltage | AC 220V |
| Frequency | 50/60 Hz |
| Rated Lifespan | 25,000 hours |
| Installation | Ceiling surface mount |
Certifications and Standards
| Standards / Certifications |
|---|
| GB7000.1 |
| IEC60598 |
| IEC61000 |
| IEC61547 |
| IEC62471 |
| EN62493 |
| EN55015 |
| UL1598C |
| FCC |
Ceiling-Mounted Air Purification and Lighting

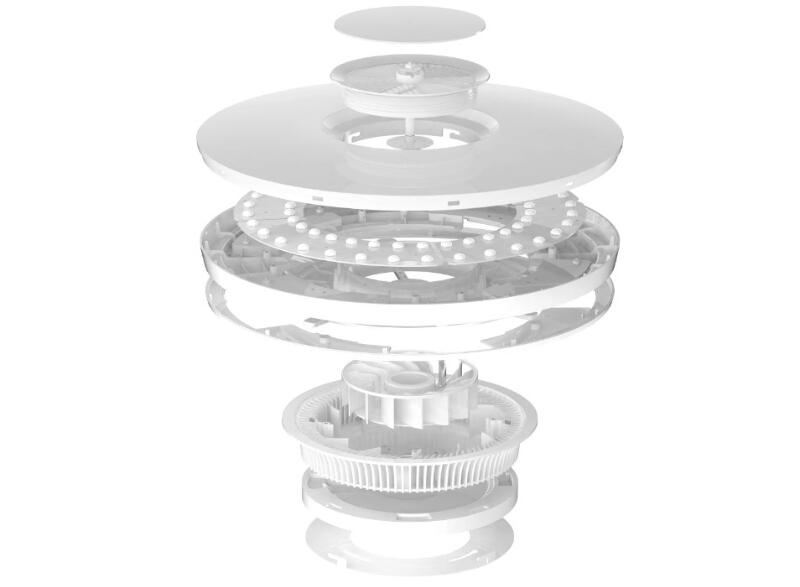

The Round Cleaning Disinfection LED Panel is designed for applications where both indoor illumination and air treatment are required. Its compact 17.95-inch (456 mm) diameter housing integrates the LED lighting system, air-purification components, replaceable H13 filter, violet-light module, and centrifugal fan into a single ceiling-mounted unit.
With adjustable main lighting, a dedicated warm night light, three fan-speed settings, and a maximum stated purification capacity of 5,297 ft³/h (150 m³/h), provides a multifunctional solution for indoor air circulation and lighting.
