Germicidal UV Bulbs - Savio - Uvinex SUV025 UV Light Bulb For Germicidal Pond Water Treatment
Germicidal UV Bulbs - Savio - Uvinex SUV025 UV Light Bulb For Germicidal Pond Water Treatment CureUV Brand Replacement for Savio - Uvinex SUV025 UV Light Bulb for Germicidal Pond Water Treatment CureUV Brand Replacement for Savio - Uvinex SUV025 UV Light Bulb for Germicidal Pond Water Treatment

CureUV Brand Replacement for Savio - Uvinex SUV025 UV Light Bulb for Germicidal Pond Water Treatment
Free Gift

SKU:

UV Bulb Price Match Guarantee
$43.99

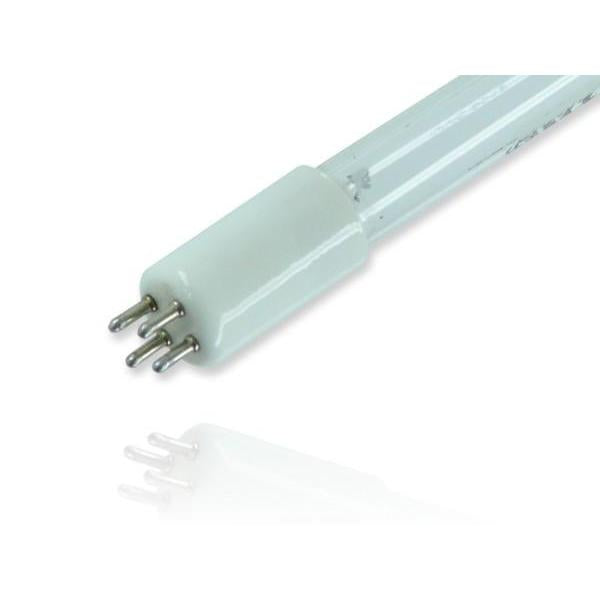

Guaranteed CureUV Brand Replacement Ultraviolet (UV) Bulb - 4 pin single end - 21 Watts - 17.17 Inch Length Lamp - Worry-Free Performance for 1 Year

The CureUV Brand Replacement for Savio - Uvinex SUV025 UV Light Bulb For Germicidal Water Treatment is a 21Watts UV bulb that gives you a worry-free performance for an entire year. The 17.17-inch lamp has four-pin on a single end and is made using ceramic. The lamp has a life of 10,000 hours after which we recommend that you replace the light bulb even if it continues to emit light.

Since the light bulbs are intended to destroy microorganisms it is necessary to schedule the replacement of the bulbs annually to ensure the system's efficiency. These high-quality lamps have a peak UV output of 254nm that help in reacting with the genetics of microorganisms such as spores, virus, bacteria, and other pathogens.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:

  • Well water
  • Drinking water
  • Surface water
  • Municipal water
  • Wastewater
  • Foodservice/processing
  • Beverage service/processing
  • Hospitals
  • Aquaculture
  • Pools, Spas, and Water Features
  • Chemicals
  • Oil, Gas, and Power
  • Pulp, paper, and wood
  • Electronics
  • Cosmetics
  • Pharmaceuticals
  • Hotels
  • Water bottlers
  • Laboratories
  • Marine and more

Studies show that the UVC method of water treatment is the safest method as it is only a physical process and does not change the chemical composition, pH or taste of water.

Technical Specifications:

  • Total Length: 17.17 inches (436mm)
  • Arc Length: 13.78 inches (350mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 370mA
  • Lamp Voltage: 67V
  • Lamp Wattage: 21 Watts
  • Output UVC Watts: 7.3 Watts
  • Output uW/cm^2 @ 1m: 72
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

    Spectral Output of Germicidal UVC Light Bulbs

    Spectral Output of Germicidal UVC Light Bulbs

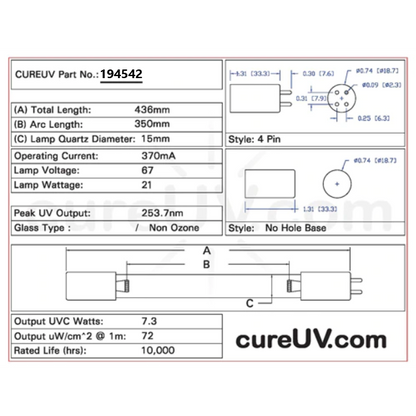

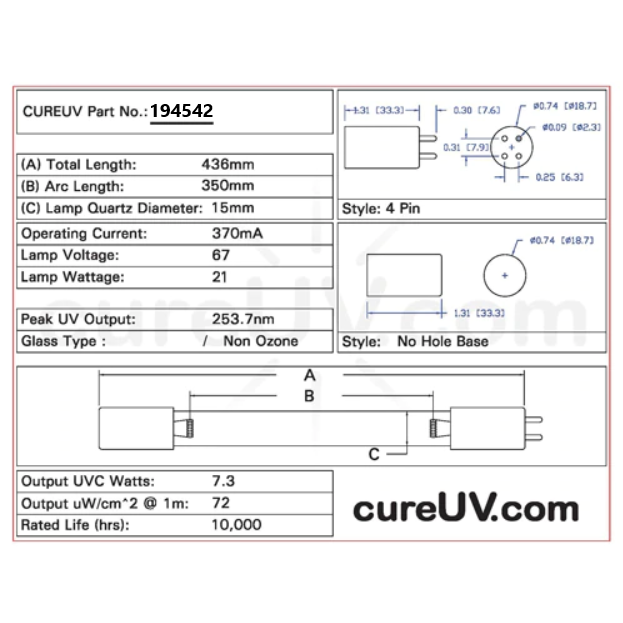

    Drawing of Replacement UVC Bulb Item # 194542

    *Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

    *All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Savio brand UVC bulbs. All Savio brand names, trademarks, and logos are property of Savio.

    *Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

    Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
