UV Curing Lamp - Sias Print Part # HA278-CSD UV Curing Lamp Bulb
UV Curing Lamp - Sias Print Part # HA278-CSD UV Curing Lamp Bulb UV Curing Lamp - Sias Print Part # HA278-CSD UV Curing Lamp Bulb

Sias print Part # HA278-CSD UV Curing Lamp Bulb
Free Gift

SKU: UV Bulb Price Match Guarantee
$375.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 78 Inch Arc Length - 82.875 Inch Total Length (end to end)

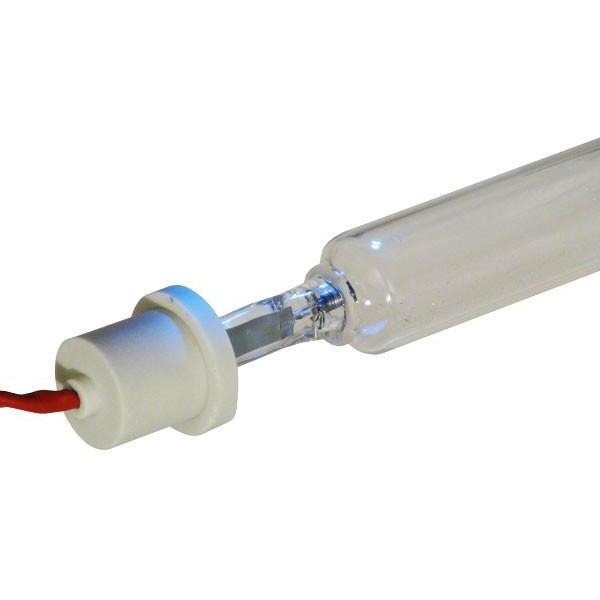

The Sias Print Part # HA278-CSD UV Curing Lamp Bulb is a 100% guaranteed mercury filled lamp bulb that has an arc length of 78 inches and an overall length of 82 -7/8. The lamp bulb has a tube diameter of 22mm and is compatible to the Sias Print UV systems.

  • HA278/CSD
  • H77E2F11100
  • H77E-3-F1HD
  • UVL 4377

The demand for UV curing bulbs is increasing, mainly in the printing industry as the light bulbs help in instantly drying printing inks. Tradition methods of curing used solvents and heat, which meant that harmful volatile gases evaporated. Curing using UV method involves no heat and solvents, which makes this an eco-friendly option. The UV lamp is subjected to strict quality control measures.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 78 inches
  • Overall Length: 82-7/8 inches
  • Measured Arc Length: 77 inches
  • Tube Diameter: 22mm

Ultraviolet (UV) spectral output of a mercury vapor lamp

Sias Part # HA278-CSD UV Curing Lamp Drawing (PDF)

Ultraviolet (UV) Spectral Output - Mercury Lamp (PDF)

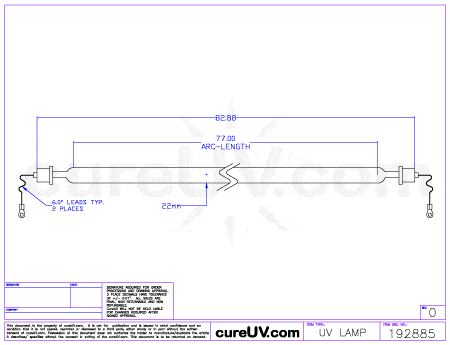

Sias Part # HA278-CSD UV curing lamp drawing

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgSias Print Part # HA278-CSD UV Curing Lamp Bulb

*All UV lamps listed are compatible brand UV products. We do not sell Sias brand UV lamps. All Sias brand names, trademarks and logos are property of Sias Print.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
