Siemens/Sunlight - AAE1337 Replacement UVC Light Bulb
Siemens/Sunlight - AAE1337 Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S810RL Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S810RL Compatible Generic Replacement UVC Light Bulb Germicidal UV Bulbs - Sterilight R-Can S810RL Compatible Generic Replacement UVC Light Bulb

Siemens/Sunlight - AAE1337 Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$65.99

4 Pin Stepped on a Single End - 38 Watt Germicidal Water Treatment Bulb

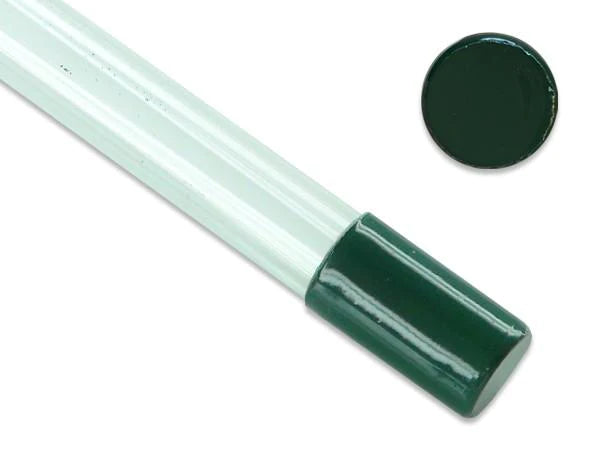

The Siemens/Sunlight - AAE1337 Replacement UVC Light Bulb is a four-pin stepped on a single end 38 Watts germicidal water treatment bulb. The replacement UVC light bulb has a total length of 31.89 inches and an arc length of 28.9 inches. The lamp has a voltage of 90V and a wattage of 38 Watts. The ceramic bulb has a rated life of 12,000 hours after which we recommend that you replace the bulb for better lamp performance.

UVC light technology is capable of sterilizing and killing 99.9% of germs such as bacteria, viruses, protozoa, yeast, and molds. These specialized UV lamps from CureUV produce a high quantity of damaging ultraviolet light that destroys harmful microorganisms without altering the composition of water, its pH, or its taste. This method of ultraviolet purification makes water safe for human consumption without the side effects of chemicals such as chlorine. Our UV lamps are tested and certified by our expert quality assurance teams, ensuring you get the best performance out of your UVC system.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

Technical Specifications:

  • Total Length: 31.89 inches (810mm)
  • Arc Length: 28.9 inches (734mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 420mA
  • Lamp Voltage: 90V
  • Lamp Wattage: 38 Watts
  • Output UVC Watts: 14 Watts
  • Output uW/cm^2 @ 1m: 130
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin stepped on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 12,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs (PDF)

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 510793 (PDF)



UVC Light Disinfection Dosage Chart (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Siemens/Sunlight UVC bulbs. All Siemens/Sunlight brand names, trademarks, and logos are property of Siemens/Sunlight.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products 100% compatible with the original equipment.
