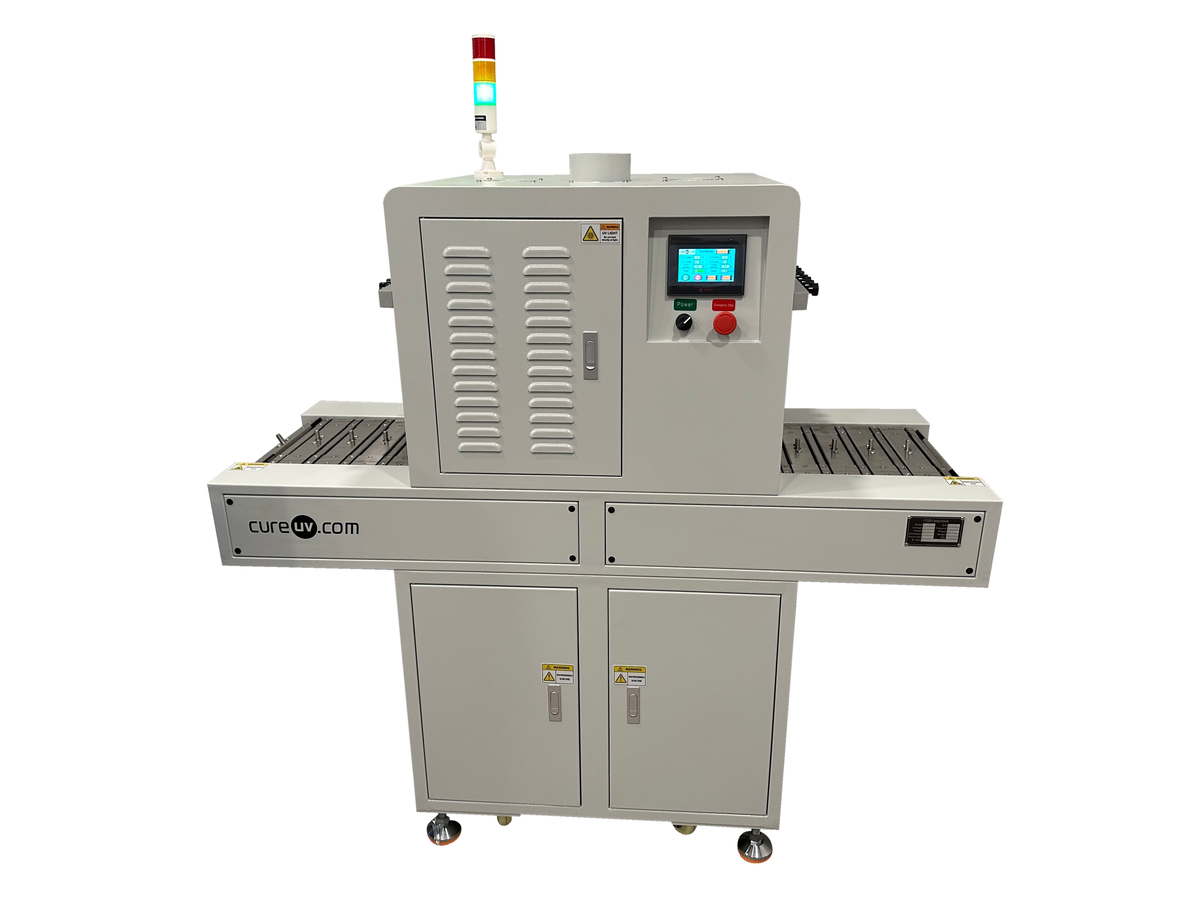

Standalone UV LED Curing Conveyor - 13" Wide - 30W/cm2 at 395nm with Water Cooling and Touch Screen HMI Controls

This UV curing conveyor is a compact, standalone system on lockable caseters built for semi- and fully-automatic production lines. It pairs a water-cooled UV LED array. Available in 365nm, 385nm, 395nm, and 405nm. It has a durable, speed-adjustable Teflon belt, so you can dial in fast, repeatable curing for inks, coatings, adhesives, and more.

• No warm-up required: the LED array reaches full output instantly, so there's no preheating downtime.
• Integrated water cooling: keeps the LED system running at peak efficiency and extends its service life.
• Energy efficient: high photoelectric conversion and concentrated energy output keep power draw low.
• Cold light source, cool cure: the UV LED emits negligible heat, protecting heat-sensitive materials during curing.
• Fully adjustable belt speed: the extra-durable Teflon conveyor belt lets you match throughput to your process.
• Simple PLC touchscreen control: user-friendly operation that's quick to set up and run.
• Built-in wheels: move and reposition the system around your facility with ease.

High-Intensity UV LED Curing Conveyor System

Each UV curing conveyor system combines a control unit, a high-intensity UV LED irradiation head, and a Teflon conveyor belt. Forced water cooling dissipates heat efficiently, helping the system run longer and lowering your cost of ownership over its useful life. The standard effective curing area is 900 × 300 mm.

This UV LED conveyor supports external signal input and triggering, making it suitable for automatic or semi-automatic production lines.

The available wavelength options help match the system to the UV material being cured. The LED array starts instantly and cures without excessive heat, helping protect heat-sensitive materials while improving process efficiency.
